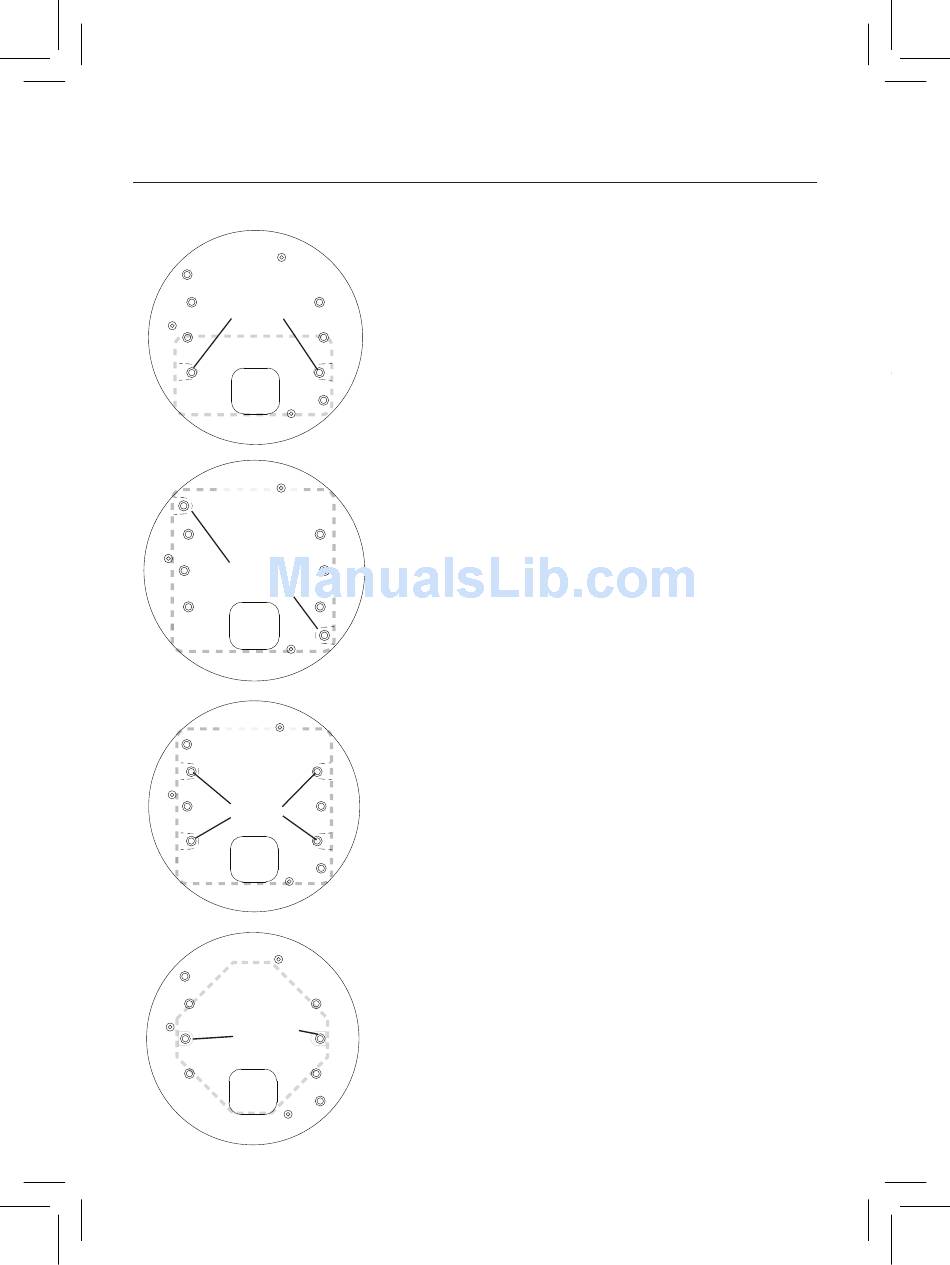

JUNCTION BOX INSTALLATION TYPES

Screws
Cable
Entry
Screws
Cable
Entry
Screws
Cable
Entry
Screws
Cable
Entry
2S FITTING
a. 2S Fitting requires only 2pcs of base
attachment screws.
Note: You have a reduced space in which
to hide cables using this type of
installation. Recommended for indoor
dome only.
4S FITTING
a. 4S Fitting requires 2pcs of base attachment
screws.
Note: Screws used for the 4S box are larger
compared to those used for the 2S (M4
type). Suitable for both indoor and
vandal domes
TWO GANG FITTING
a. Two gang fitting (switch box) requires 4pcs
of base attachment screws.
Note: A two gang provides the most robust
fitting. Suitable for both indoor and
vandal domes.

OCTAGON FITTING

a. 4" Octagon fitting requires only 2pcs of
base attachment screws.
Note Screws used for the octagon fitting
are larger compared to those used for
the 2S/4S (M4 type). Suitable for both
indoor and vandal domes
