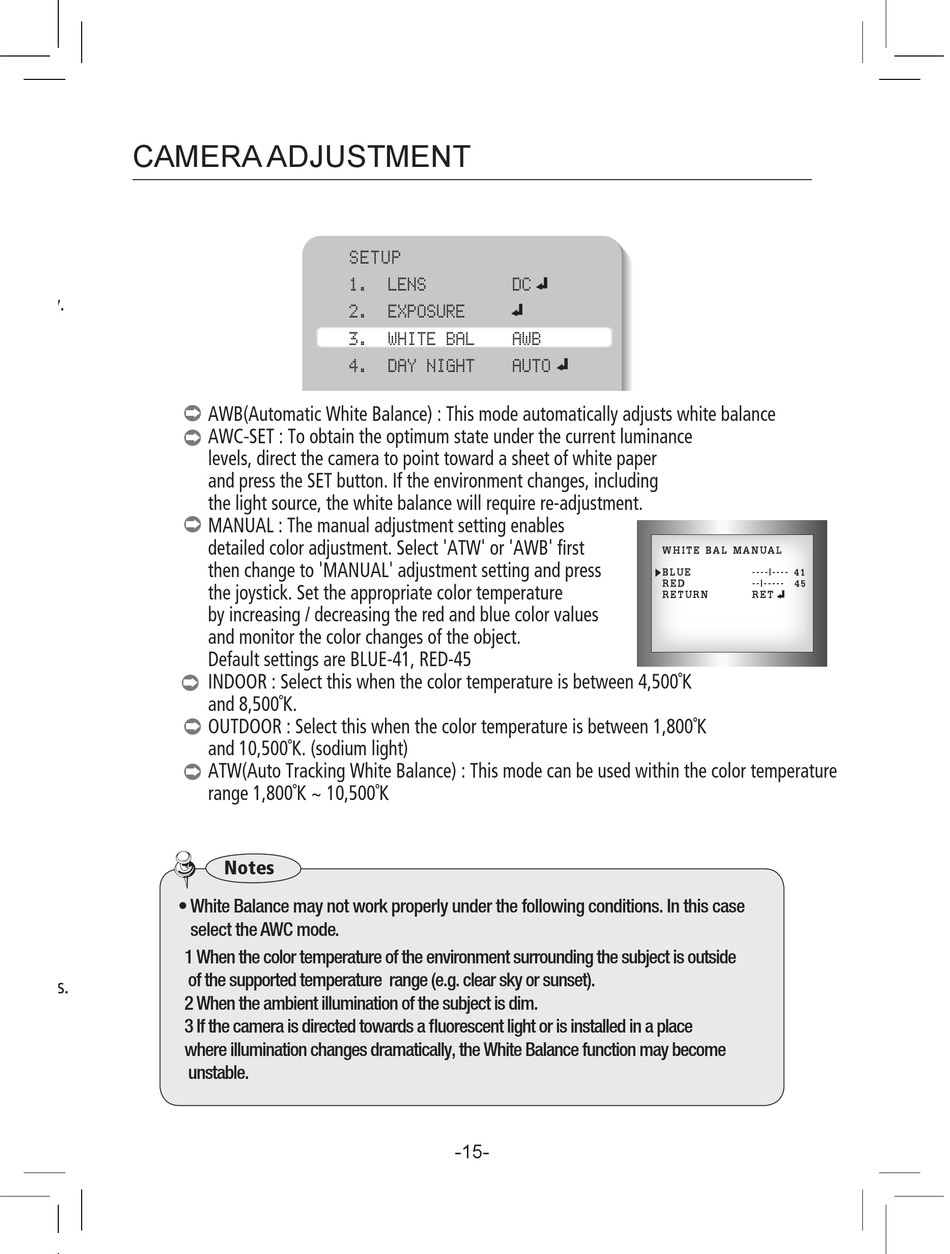

CAMERA ADJUSTMENT
ronically.
peratures.
SETUP
1. LENS
2. EXPOSURE
3. WHITE BAL
4. DAY NIGHT
AWB(Automatic White Balance) : This mode automatically adjusts white balance
AWC-SET : To obtain the optimum state under the current luminance
levels, direct the camera to point toward a sheet of white paper
and press the SET button. If the environment changes, including
the light source, the white balance will require re-adjustment.
MANUAL : The manual adjustment setting enables
detailed color adjustment. Select 'ATW' or 'AWB' first
then change to 'MANUAL' adjustment setting and press
the joystick. Set the appropriate color temperature
by increasing / decreasing the red and blue color values
and monitor the color changes of the object.
Default settings are BLUE-41, RED-45
INDOOR : Select this when the color temperature is between 4,500˚K
and 8,500˚K.
OUTDOOR : Select this when the color temperature is between 1,800˚K
and 10,500˚K. (sodium light)
ATW(Auto Tracking White Balance) : This mode can be used within the color temperature
range 1,800˚K ~ 10,500˚K
Notes
• White Balance may not work properly under the following conditions. In this case
select the AWC mode.
1 When the color temperature of the environment surrounding the subject is outside
of the supported temperature range (e.g. clear sky or sunset).
2 When the ambient illumination of the subject is dim.
3 If the camera is directed towards a uorescent light or is installed in a place
where illumination changes dramatically, the White Balance function may become
unstable.
DC
AWB
AUTO
-15-
WHITE BAL MANUAL
BLUE ----|---- ��
RED --|----- ��
RETURN RET
