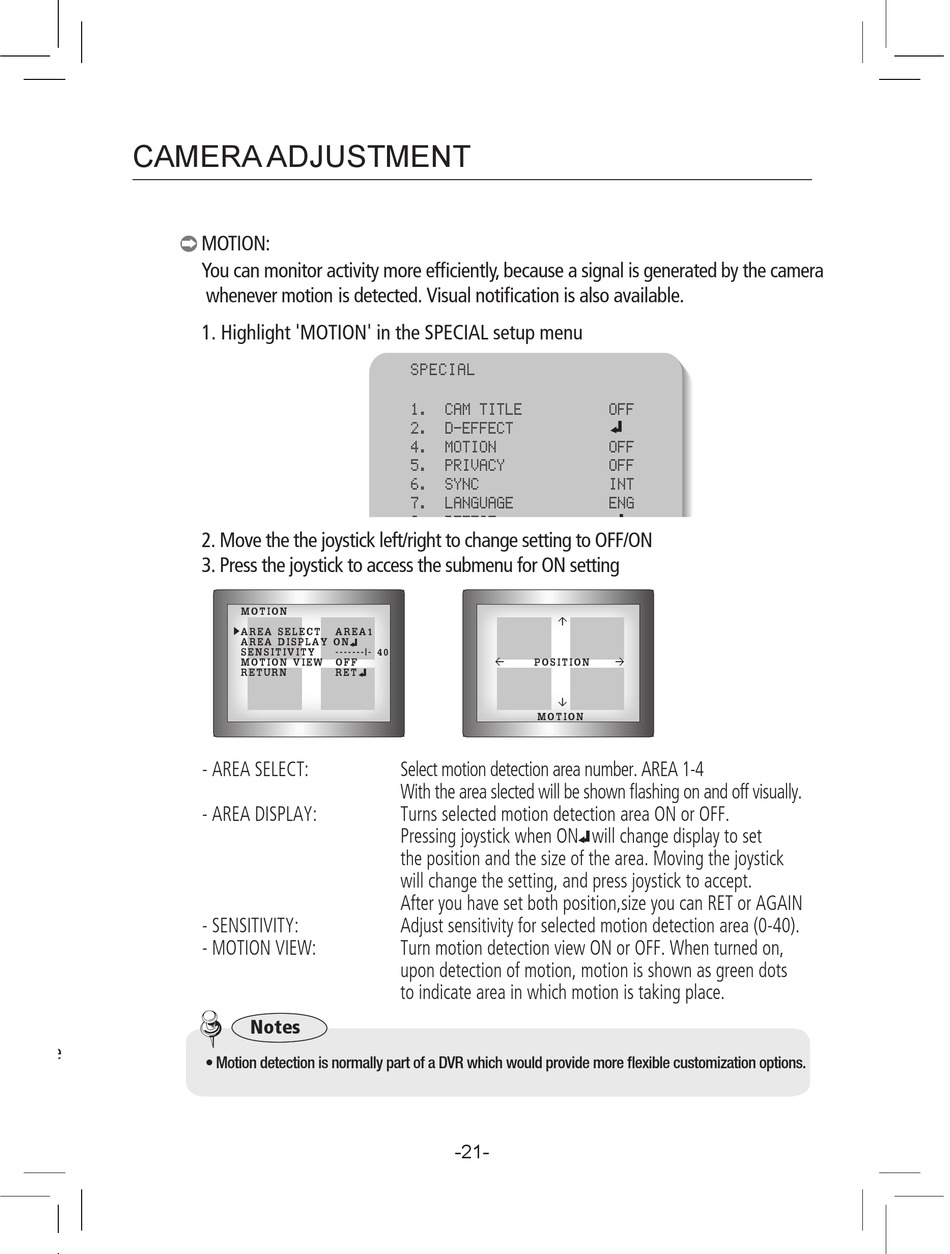

CAMERA ADJUSTMENT
ky image
MOTION:
You can monitor activity more efficiently, because a signal is generated by the camera
whenever motion is detected. Visual notification is also available.
1. Highlight 'MOTION' in the SPECIAL setup menu
2. Move the the joystick left/right to change setting to OFF/ON
3. Press the joystick to access the submenu for ON setting
MOTION
AREA SELECT AREA�
AREA DISPLAY ON
SENSITIVITY -------|- ��
MOTION VIEW OFF
RETURN RET
- AREA SELECT:

- AREA DISPLAY:

- SENSITIVITY:
- MOTION VIEW:
Notes
• Motion detection is normally part of a DVR which would provide more exible customization options.
SPECIAL
1. CAM TITLE
2. D-EFFECT
4. MOTION
5. PRIVACY
6. SYNC
7. LANGUAGE
8. DEFECT
9. RETURN

POSITION


MOTION
Select motion detection area number. AREA 1-4
With the area slected will be shown ashing on and off visually.
Turns selected motion detection area ON or OFF.
Pressing joystick when ON will change display to set
the position and the size of the area. Moving the joystick
will change the setting, and press joystick to accept.
After you have set both position,size you can RET or AGAIN
Adjust sensitivity for selected motion detection area (0-40).
Turn motion detection view ON or OFF. When turned on,
upon detection of motion, motion is shown as green dots
to indicate area in which motion is taking place.
