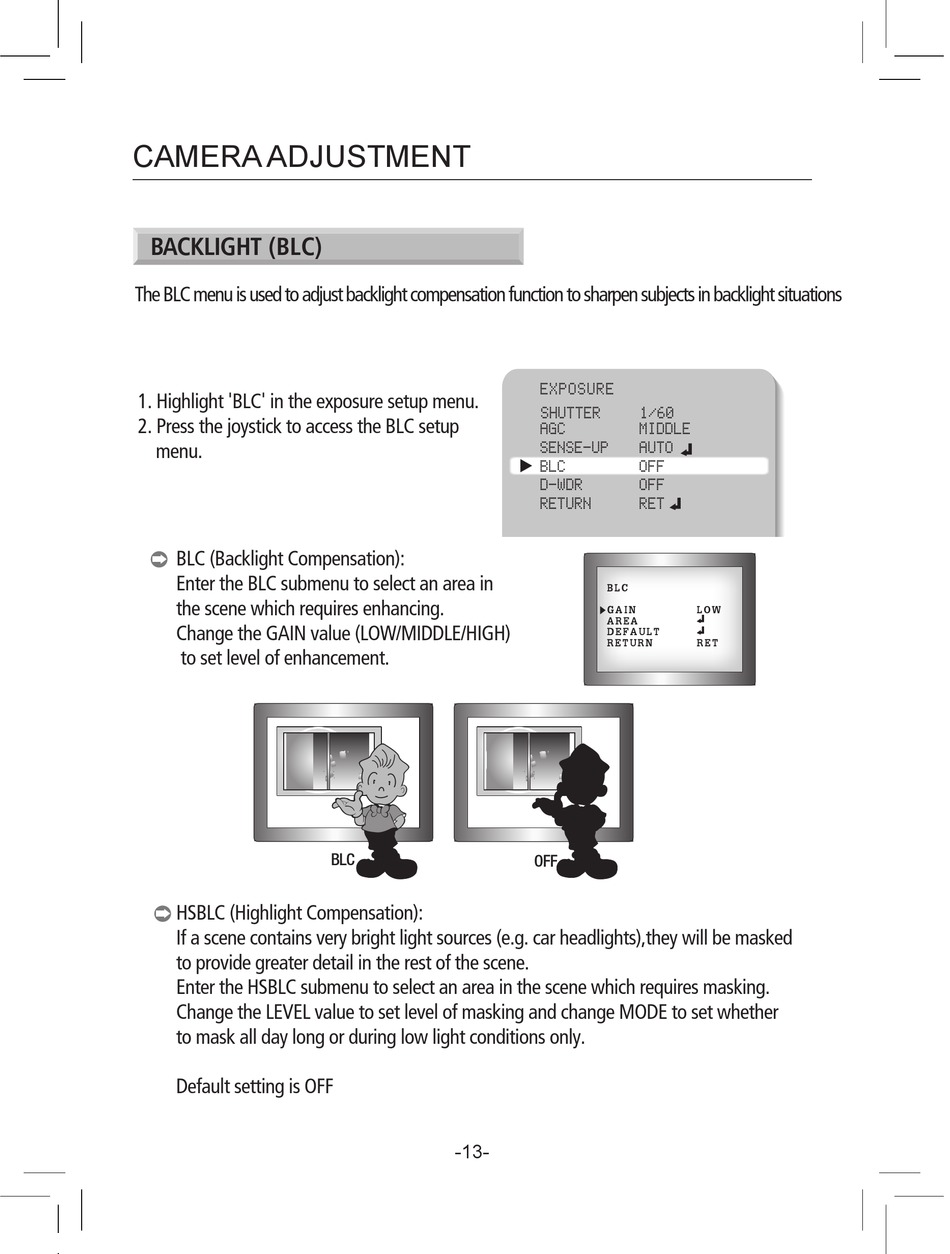

CAMERA ADJUSTMENT

BACKLIGHT (BLC)

The BLC menu is used to adjust backlight compensation function to sharpen subjects in backlight situations
1. Highlight 'BLC' in the exposure setup menu.
2. Press the joystick to access the BLC setup
menu.
ue
BLC (Backlight Compensation):
Enter the BLC submenu to select an area in
the scene which requires enhancing.
Change the GAIN value (LOW/MIDDLE/HIGH)
to set level of enhancement.
BLC
HSBLC (Highlight Compensation):
If a scene contains very bright light sources (e.g. car headlights),they will be masked
to provide greater detail in the rest of the scene.
Enter the HSBLC submenu to select an area in the scene which requires masking.
Change the LEVEL value to set level of masking and change MODE to set whether
to mask all day long or during low light conditions only.
Default setting is OFF
EXPOSURE
SHUTTER
AGC
SENSE-UP
BLC
D-WDR
RETURN
BLC
GAIN
AREA
DEFAULT
RETURN
OFF
-13-
1/60
MIDDLE
AUTO
OFF
OFF
RET
LOW
RET
