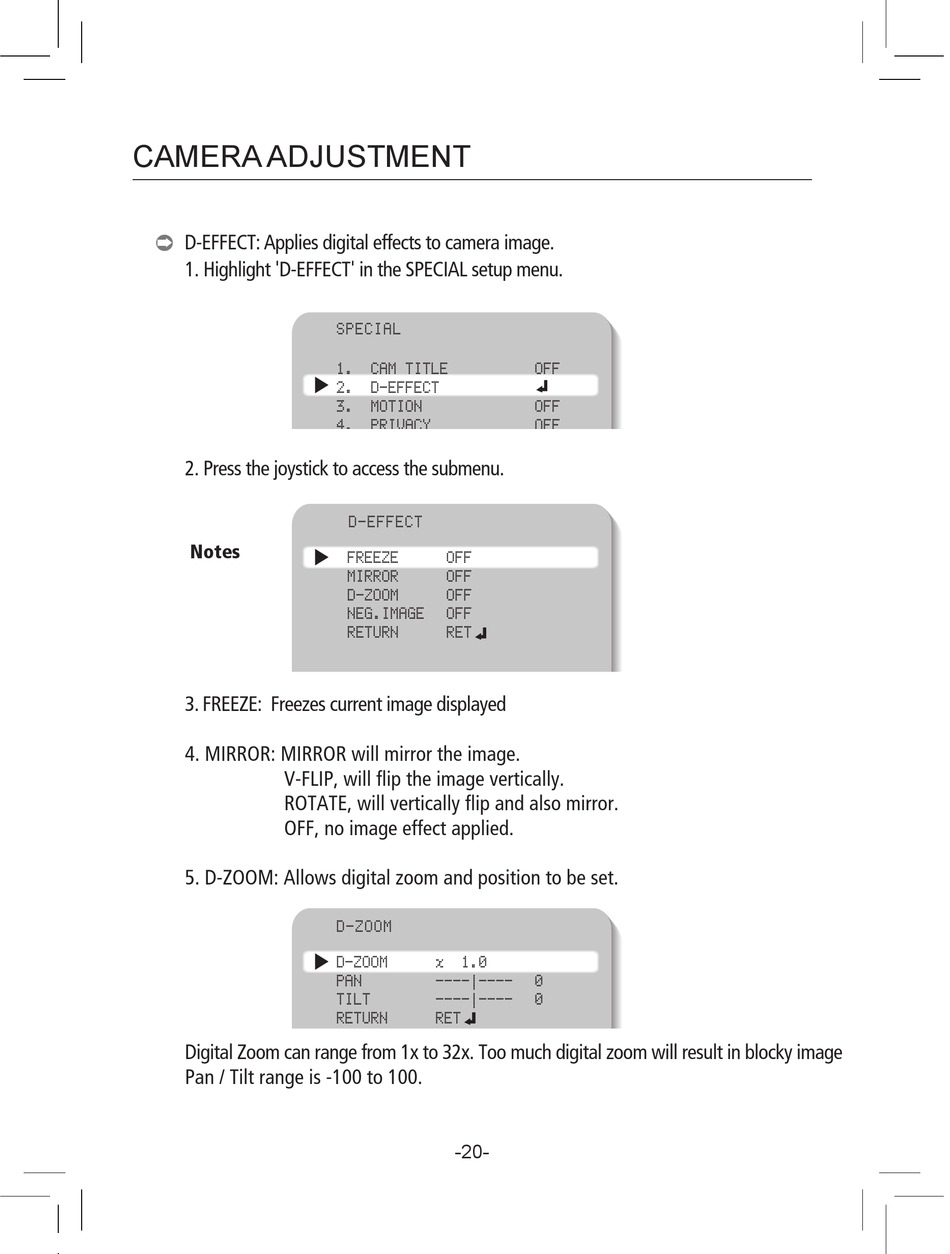

Digimerge DPV24D Instruction Manual page 24

CAMERA ADJUSTMENT
D-EFFECT: Applies digital effects to camera image.
1. Highlight 'D-EFFECT' in the SPECIAL setup menu.
2. Press the joystick to access the submenu.
Notes
3. FREEZE: Freezes current image displayed
4. MIRROR: MIRROR will mirror the image.
V-FLIP, will flip the image vertically.
ROTATE, will vertically flip and also mirror.
OFF, no image effect applied.
5. D-ZOOM: Allows digital zoom and position to be set.
Digital Zoom can range from 1x to 32x. Too much digital zoom will result in blocky image
Pan / Tilt range is -100 to 100.
SPECIAL
1. CAM TITLE
2. D-EFFECT
3. MOTION
4. PRIVACY
6. SYNC
7. LANGUAGE
8. RETURN
D-EFFECT
FREEZE OFF
MIRROR OFF
D-ZOOM OFF
NEG.IMAGE OFF
RETURN RET
D-ZOOM
D-ZOOM x 1.0
PAN ----|----
TILT ----|----
RETURN RET
-20-
OFF
OFF
OFF
INT
ENGLISH
END
0
0
