INSTALLATION. INDOOR DOME
1
b
2
a
b
3

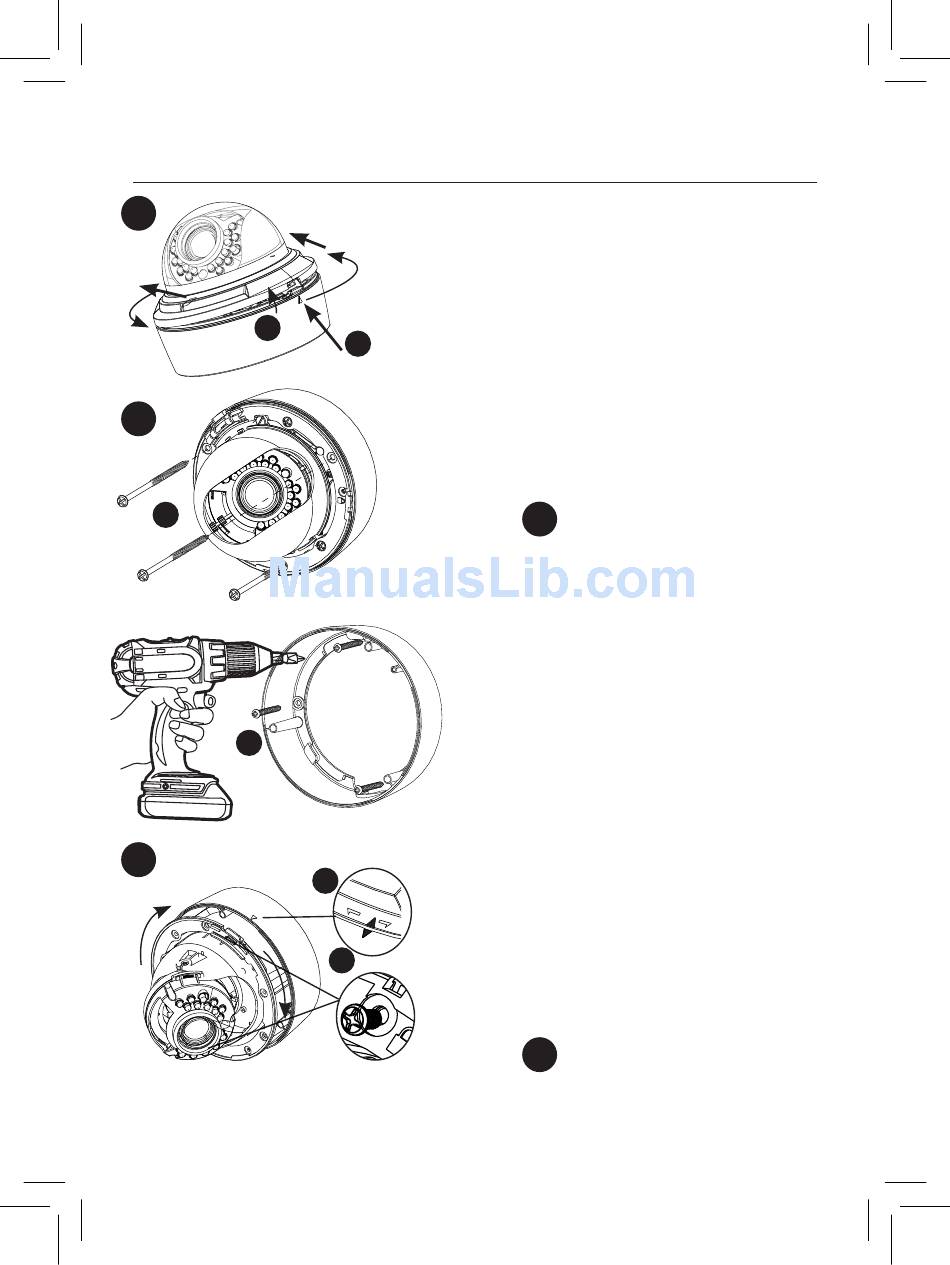

1a) Press down on the tab marked with an arrow to lift
up the dome cover slightly
1b) While pressing on tab, twist the dome cover
counter clockwise just a few degrees to release
dome cover from back clips.
a
Lift off the cover.
Method 1 - Direct Attach Install
2a) Use included mounting template to mark and pre-
drill the required holes. Use included 2.8" screws
to mount the camera directly to the mounting
surface.
Go to step
OR
Method 2 - Camera Base Install
Note: Use this method if installing onto junction box
plate.
2b) Remove the camera base by unscrewing the base
locking screws (indicated by padlock markings)
and turn camera module approx. 5 degrees
counter-clockwise to detach camera base from the
camera module. Install the base as indicated using
the 1.2" screws.
Note: If you plan on installing onto a junction box,
attach provided mounting plate first to the
junction box and then attach camera base
a
to the mounting plate.
3a) Reinsert camera module into camera base
by ligning up the arrow notches, and turning
b
camera module clockwise to lock into place.
3b) Reinstall the base locking screws. (indicated by
padlock markings)
Go to step
-8-
(Surface Fitting)
3
on page 9 to complete installation.
3
on page 9 to complete installation.
