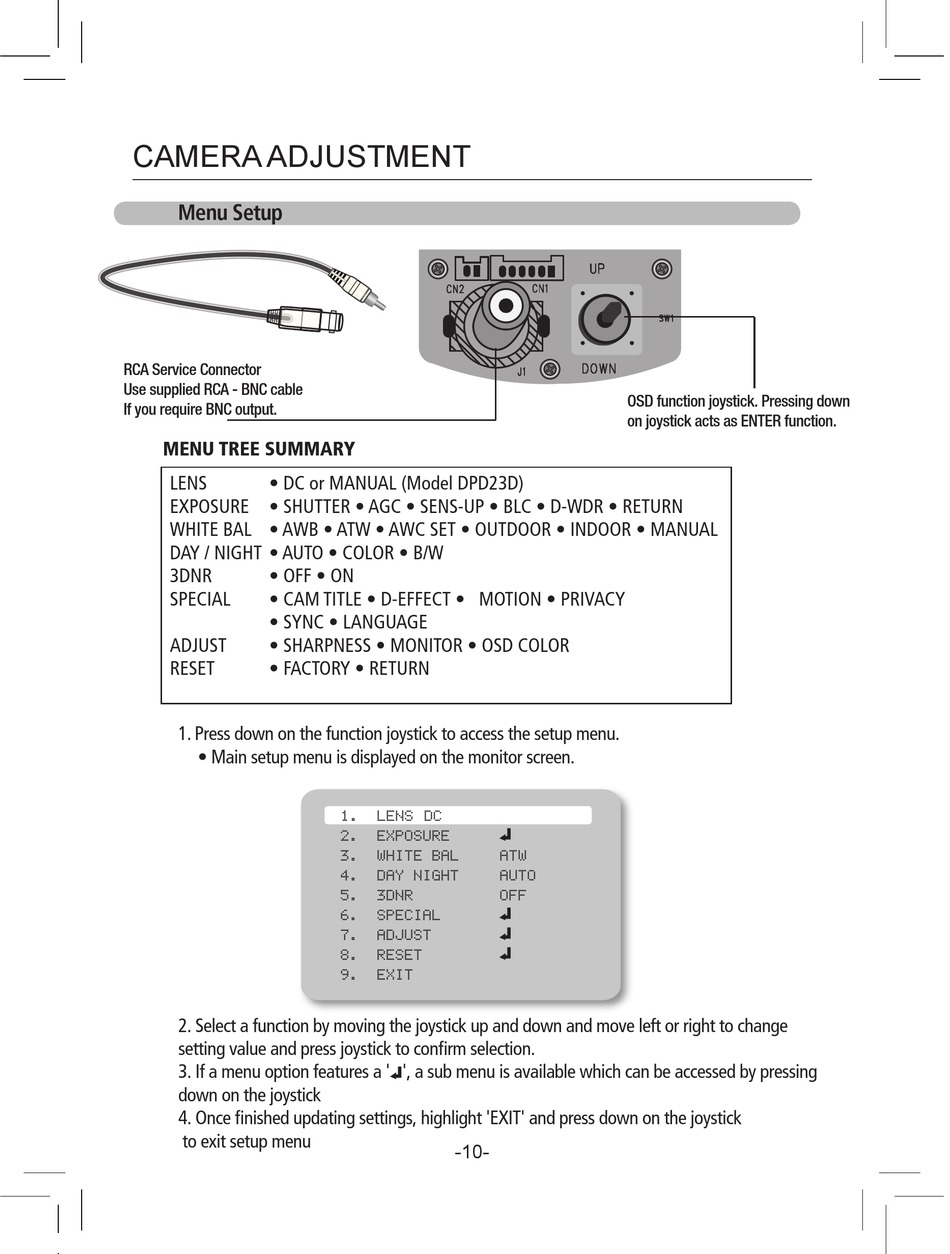

CAMERA ADJUSTMENT

Menu Setup

RCA Service Connector
Use supplied RCA - BNC cable
If you require BNC output.

MENU TREE SUMMARY

LENS • DC or MANUAL (Model DPD23D)
EXPOSURE • SHUTTER • AGC • SENS-UP • BLC • D-WDR • RETURN
WHITE BAL • AWB • ATW • AWC SET • OUTDOOR • INDOOR • MANUAL
DAY / NIGHT • AUTO • COLOR • B/W
3DNR • OFF • ON
SPECIAL • CAM TITLE • D-EFFECT • MOTION • PRIVACY
• SYNC • LANGUAGE
ADJUST • SHARPNESS • MONITOR • OSD COLOR
RESET • FACTORY • RETURN
1. Press down on the function joystick to access the setup menu.
• Main setup menu is displayed on the monitor screen.
2. Select a function by moving the joystick up and down and move left or right to change
setting value and press joystick to confirm selection.
3. If a menu option features a ' ', a sub menu is available which can be accessed by pressing
down on the joystick
4. Once finished updating settings, highlight 'EXIT' and press down on the joystick
to exit setup menu
1. 1. LENS DC LENS DC
2. EXPOSURE
3. WHITE BAL ATW
4. DAY NIGHT AUTO
5. 3DNR OFF
6. SPECIAL
7. ADJUST
8. RESET
9. EXIT
-10-
OSD function joystick. Pressing down
on joystick acts as ENTER function.
