INFORMATION:
The Start M1 Intro, M2 Effect, M3 Hemi and M6 Junior offer the possibility to
change the vertical position of the rear wheel by shifting the rear wheel adapter

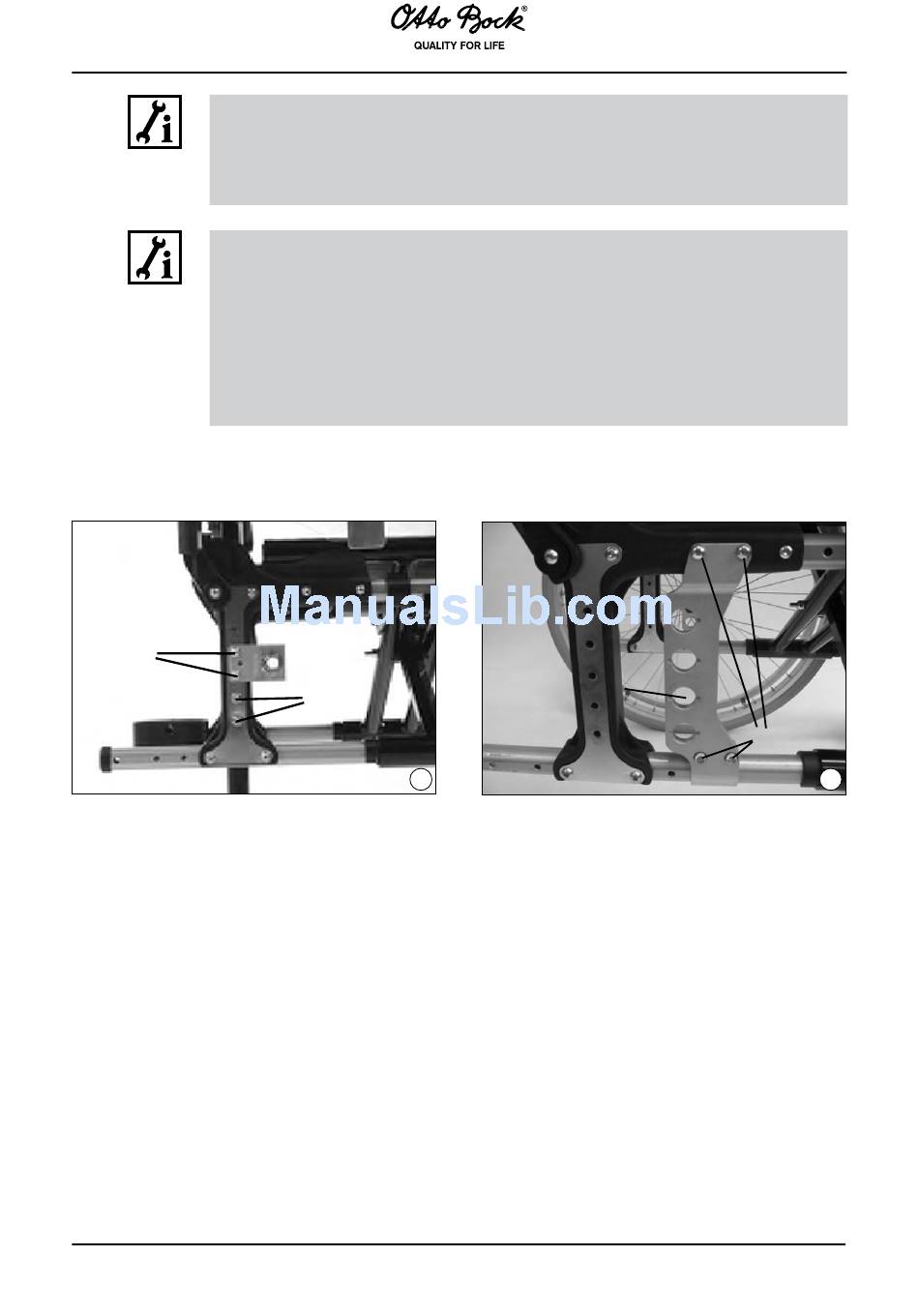

along the frame. Loosen the two screw connections A (Fig. 24) and remove the
screws. Shift the adapter to the desired position and firmly retighten the screws.
INFORMATION:
Make sure to firmly retighten all screws and nuts after making adjustments. The
proper torque for the screw connection of the rear wheel adapter is 8 Nm. The
proper torque for the screw connection of the fitting is 50 Nm.
For Start M4 XXL and M5 Comfort: Loosen the nut A (Fig. 25) of the quick-
release axle housing on the inside of the frame and remount the axle housing at
the desired position. The proper torque is 50 Nm. The distance between rear
wheel and side panel can be continuously adjusted by adjusting the counter nut on
the outer side of the frame.
A

6.2 Changing the wheelbase

Shifting the rear wheel backwards lengthens the wheelbase and thus provides for greater stabil-
ity of the wheelchair. Shifting the rear wheel forwards (only for advanced wheelchair drivers!)
relieves the load on the casters. This increases the maneuverability of the wheelchair. The caster
wheels can then also be lifted more easily to clear obstacles such as curbs or steps.
52
B
24
A
B
25
