f Right click on the selected device
f Click on import/export
When importing a .pam file you'll be prompted for a decision
on the realignment policy to adopt.
By selecting yes, the device setup is transmitted from the
virtual device to the real device. By selecting no, the device setup
is transmitted from the real device to the virtual device.
WARNING! Importing a .pam file leads to a
short interruption of the audio stream.
WARNING! Importing a .pam file overwrites the current preset
slot on the device. Any previous data on the slot will be erased.

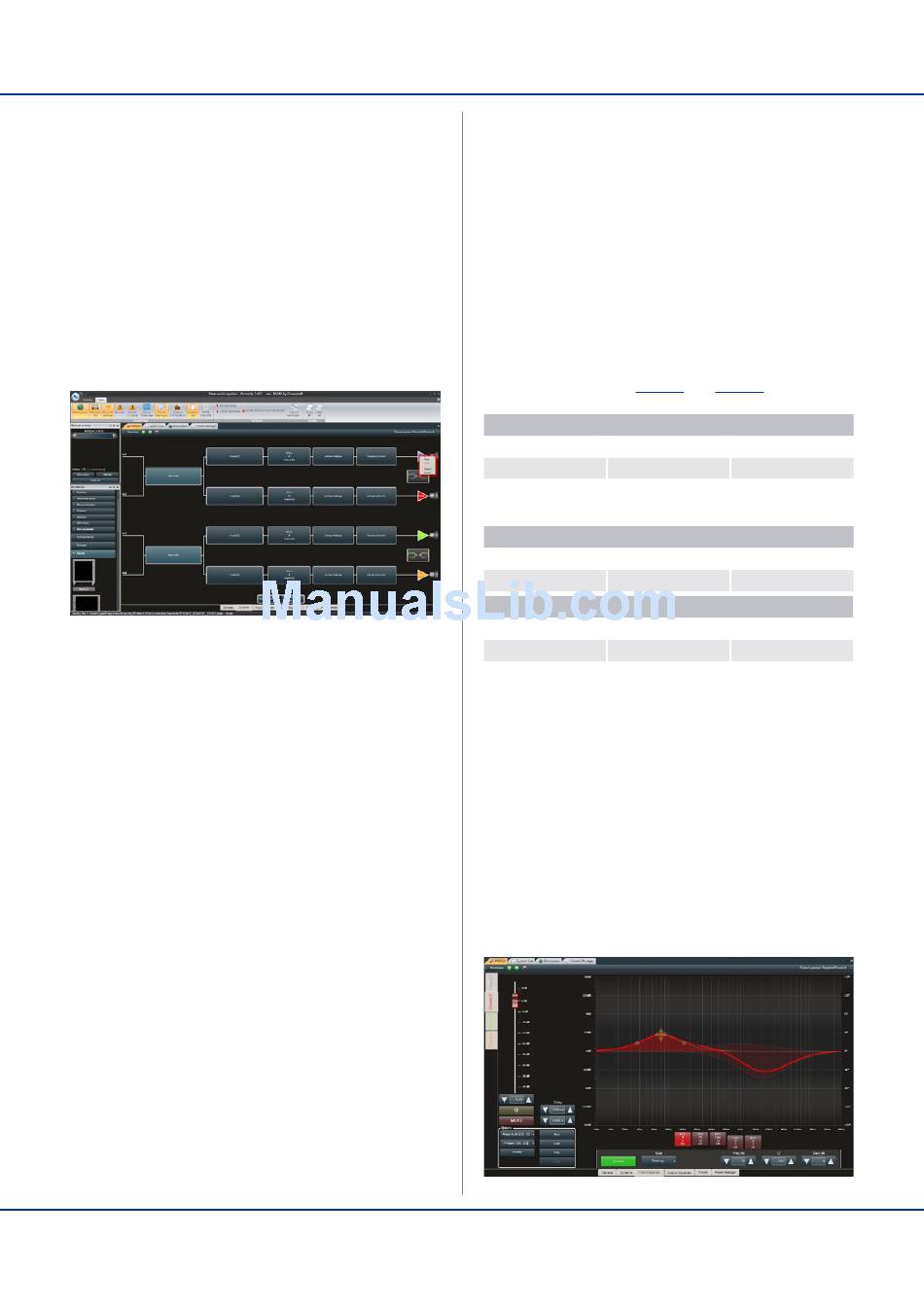

FIGURE 26: All possible channel operations are available by right
clicking on the respective channel.
10.7

System File .paw

Saving or opening a system file permits the storage of the entire
processing of the current device imported in the workspace. For
more information on system configuration, please refer to the
Armonía manual.
The save operation may be seen as a large .pam export of the
entire device; on the other hand, opening a .paw file is equivalent
to performing a large .pam import on multiple devices. The user
will be prompted for multiple realignment decision on any de-
synchronized devices.
If the question is answered with:
f yes, the device specified in the window will be aligned to the
data in the .paw file;
f yes to all, all the devices will be aligned to the data in the
.paw file;
f no, the device specified in the window will NOT be aligned
to the data in the .paw file but the data will be reloaded from
the device.
f no to all, all the devices will NOT be aligned to the data in
the .paw file but the data will be reloaded from the devices.
WARNING! During import or preset manager operations the
save .paw function is disabled.
18
10.8

DSP remote operations

WARNING! Due to the internal structure of the system some of
the following file operations can lead to a short audio interruption.
WARNING! All changes will be lost if the preset is NOT
stored on board before unplugging the unit from the mains.

10.8.1 Routing

The input routing is based on the processing layout used: the
1 in / 2 out configuration, for example, allows input on odd channels
only. On the other hand, the 2 in / 2 out configuration allows input
on every channel. In this configuration, a mono mix from both
channels is also allowed: the two channels are added together and
their sum divided by two to normalize the resulting level. Available
configurations are listed in TABLE 4
Module 0 configuration Input Module 0
1 In / 2 Out Ch1
2 In / 2 Out Ch1/Ch2
TABLE 4: MxxD amplifiers routing.
Module 0 configuration Input Module 0
1 In / 2 Out Ch1
2 In / 2 Out Ch1/Ch2
Module 1 configuration Input Module 1
1 In / 2 Out Ch3
2 In / 2 Out Ch3/Ch4
TABLE 5: MxxQ amplifiers routing.

10.8.2 Input eq

The input eq is intended for system operations. The input eq
provides a range of biquad filters that can act as any generic IIR filter.
From the input eq page, the frequency response of each channel
can be adjusted in several ways. Discrete time delays can also be
inserted. The presence of every input eq used in the device layout is
reported on the tabbed channel on the bottom left hand side of the
screen. The frequency response curves, together with other View
items, are color coded: blue for channel 1, red for channel 2, green
for channel 3, orange for channel 4. Every channel allows regulation
of filters, mute, gain, delay and polarity. The frequency response
(and/or phase response) curve displayed is always obtained as the
combined response of all currently active filters.
FIGURE 27: Input EQ.
et le TABLE 5.
Output Module 0
Ch1/Ch2
Ch1/Ch2
Output Module 0
Ch1/Ch2
Ch1/Ch2
Output Module 1
Ch3/Ch4
Ch3/Ch4
