10.1.3 AUTOIP

Every device tries to set up network communication when the
data cable is plugged in and connected to another device (PC,
switch, etc.). If a DHCP server is not active in the device network
the units initiates a stateless address auto-configuration. It self
assigns a link-local address of the type 169.254.x.y with a subnet
mask 255.255.0.0. Please make sure that your PC is in the same
subnet of the unit. Modern operating systems provide Zeroconf
features for network auto-configuration.

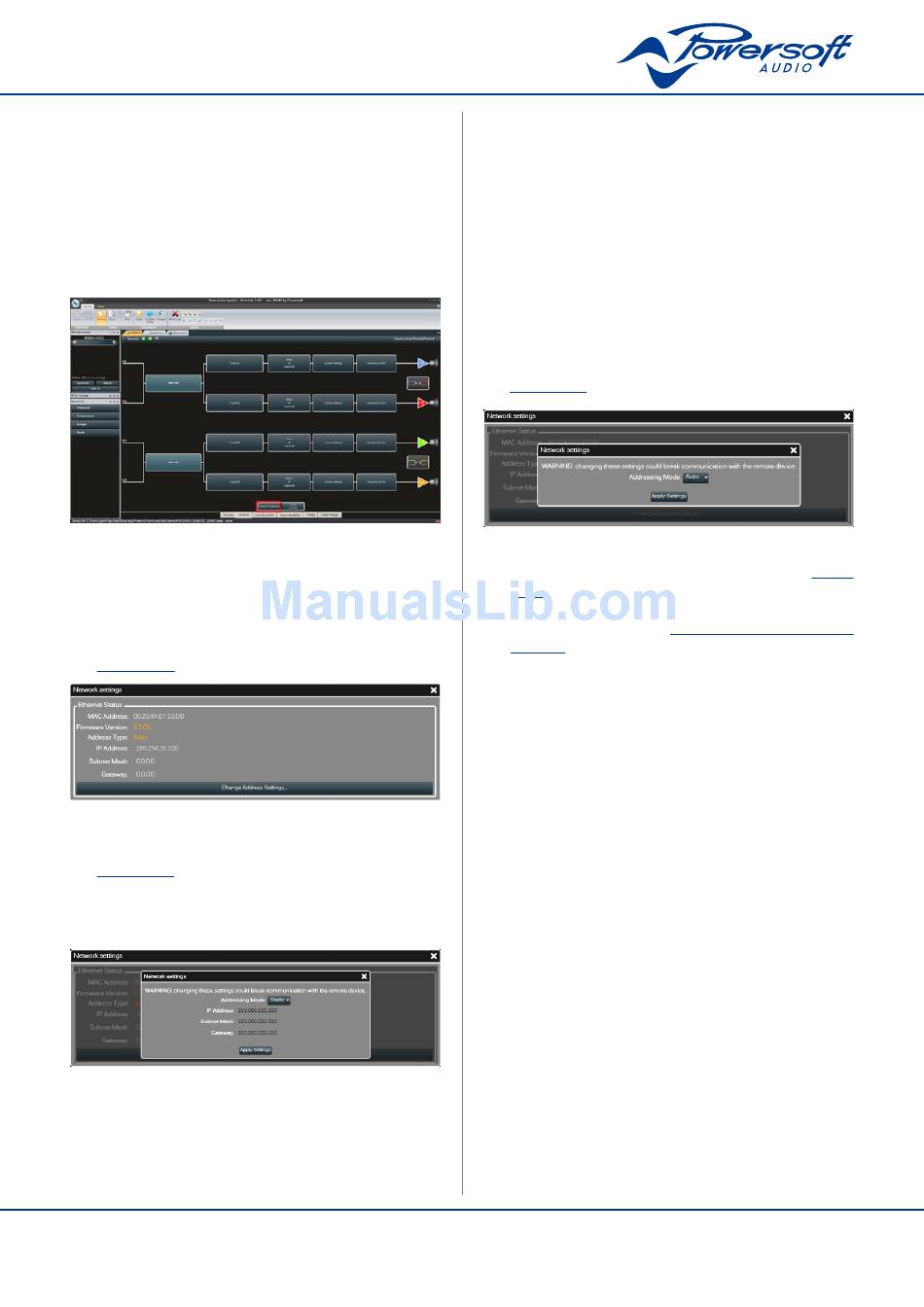

FIGURE 16: Push on the Network setting button.

10.1.4 Static IP

M Series devices can be set up with a static IP (or any other IP
policy) with the Armonía control software. In order to set up the
IP address please follow these steps.
1. Connect the device in a network with or without DHCP (ref.
Section 10.1.2).
FIGURE 17: Select the static IP policy.
2. Discover the device and import it in the workspace (ref.
Section 10.1.1 or refer to the Armonía user guide).
3. Go to the device scheme tab and select the Network settings
button.
4. Select the Static addressing mode from the combo box.
FIGURE 18: Fill in the IP, subnet, and net mask.
5. Insert the desired IP Address and network mask. Specifying
the gateway is necessary only in complex LANs.
6. Click apply settings button.
WARNING! The device is reachable only from PCs in the same
subnet mask, if this information is lost you will need to re-init
the network device with a third-party software.
When done, the device network will restart automatically. The
device will reconnect in approximately 15 seconds.

10.1.5 Revert from static IP

If for any reason re-programming the IP address or the IP policy
of your unit should be necessary, follow the instructions in the
previous chapter and make a different selection when assigning
the IP. For example, should you need to revert the device to the
automatic (DHCP, Zeroconf) IP settings, please follow these
steps. Connect the device in a network with or without DHCP
(ref. Section 10.1.1).
FIGURE 19: Select Auto addressing.
1. Discover the device and import in the workspace (ref.
10.1.2 or refer to the Armonía user guide). Device and PC
must use the same subnet. If you are not able to reconnect
the device please refer to
recovery".
2. Go to the device scheme tab and select the Network settings
button.
3. Select the Auto addressing mode from the combo box.
4. Click apply settings button.
When done, the device network will restart automatically.
The device will reconnect in approximately 15 seconds.
Section
"Annex A: IP management and
15
