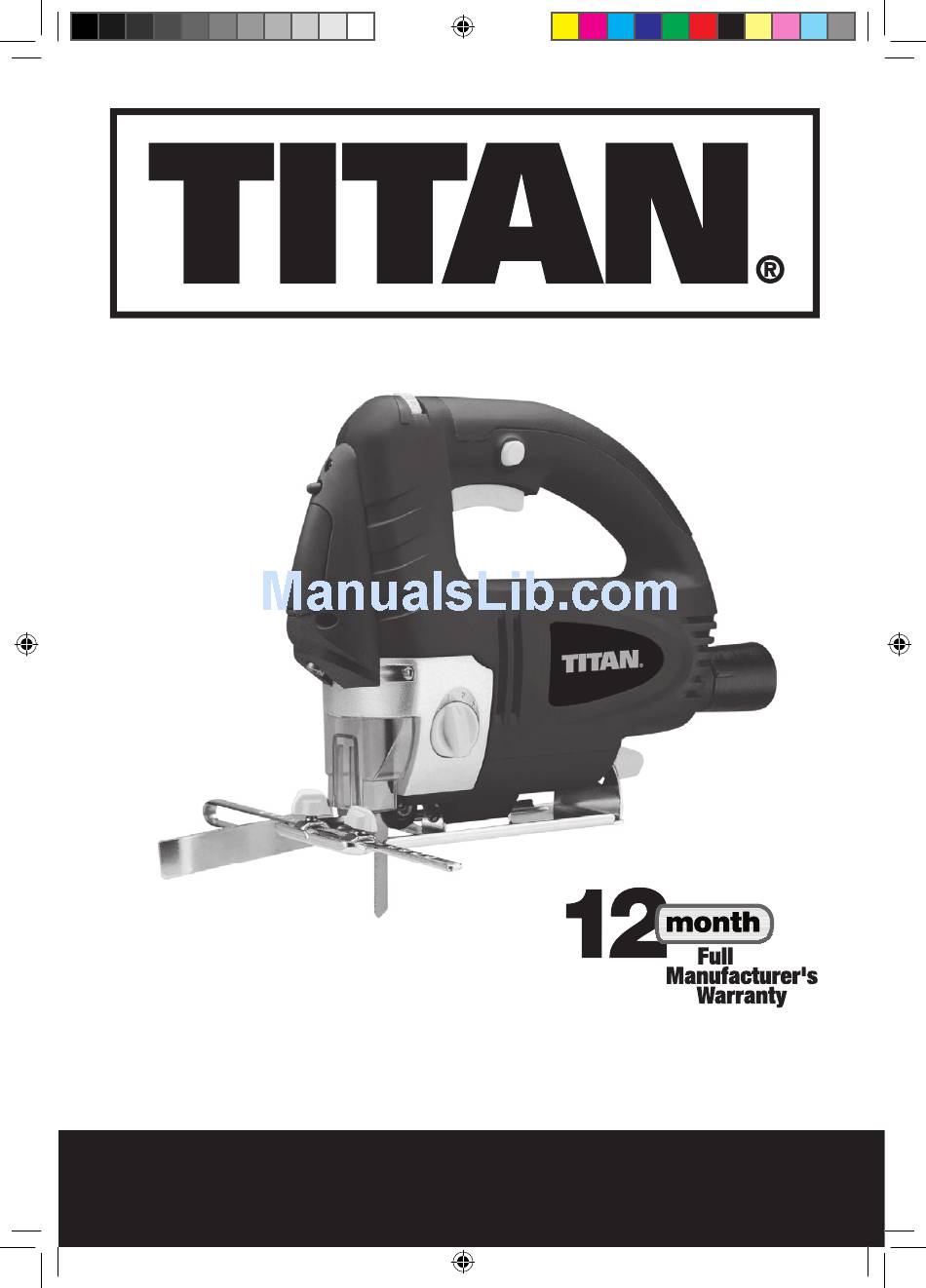

SAFETY AND OPERATING MANUAL
800W JIGSAW WITH LASER
SF800XPL
SF800XPL SJ800XPL-M-060525.indd 1
2006-5-26 18:34:39

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF800XPL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Titan SF800XPL

Summary of Contents for Titan SF800XPL

  • Page 1 SAFETY AND OPERATING MANUAL 800W JIGSAW WITH LASER SF800XPL SF800XPL SJ800XPL-M-060525.indd 1 2006-5-26 18:34:39...
  • Page 2 SF800XPL SJ800XPL-M-060525.indd 2 2006-5-26 18:34:39...
  • Page 3 This guarantee does not affect your statutory rights.This guarantee is only valid in the UK. For further technical advice, spare parts or repair service (outside of guarantee) please contact the customer helpline number on 0845 607 6380. 800W JIGSAW WITH LASER SF800XPL SF800XPL SJ800XPL-M-060525.indd 3 2006-5-26 18:34:40...

  • Page 4: Safety Instructions

    A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. SF800XPL SJ800XPL-M-060525.indd 4 2006-5-26 18:34:40...
  • Page 5 - Work in a well-ventilated area. -Work with approved safety equipment, such as those dust masks that are specially designed to filter microscopic particles. 800W JIGSAW WITH LASER SF800XPL SF800XPL SJ800XPL-M-060525.indd 5 2006-5-26 18:34:40...
  • Page 6 Bright shiny reflective sheet steel or similar is not suitable for laser applications as the reflective surface may direct the laser beam back at the operator. 5. Do not change the laser device with a different type. Repairs must be carried SF800XPL SJ800XPL-M-060525.indd 6 2006-5-26 18:34:40...
  • Page 7 Ensure your mains supply voltage is the same as your tool rating plate voltage. SYMBOLS Read the manual Warning Wear gloves Wear dust mask,eye & ear protection Conforms to relevant safety standards 800W JIGSAW WITH LASER SF800XPL SF800XPL SJ800XPL-M-060525.indd 7 2006-5-26 18:34:40...
  • Page 8 5. BATTERIES STORAGE COVER 6. LASER HOUSING 7. LASER GENERATOR 8. CLEAR SAW BLADE GUARD 9. PARALLEL GUIDE FIXTURE 10. SAW BLADE 11. PARALLEL GUIDE 12. PENDULUM ACTION SWITCH 13. BASE PLATE 14. DUST EXTRACTION ADAPTOR SF800XPL SJ800XPL-M-060525.indd 8 2006-5-26 18:34:42...

  • Page 9: Technical Data

    Double insulation: Machine weight: 2.75kg NOISE AND VIBRATION DATA Sound pressure level: 103dB (A) Sound power level: 92dB (A) Vibration level: 7.11m/s ACCESSORIES Blade 6pcs Parallel guide Dust extraction adaptor 800W JIGSAW WITH LASER SF800XPL SF800XPL SJ800XPL-M-060525.indd 9 2006-5-26 18:34:42...

  • Page 10: Operation Instructions

    Fig 3 below instruction. (See fig3) To replace the clear blade guard, pinch the clear guard, press inwards from bottom of wireframe safety guard, (See fig4). Slide upward until it reach the top. Fig 4 SF800XPL SJ800XPL-M-060525.indd 10 2006-5-26 18:34:44...
  • Page 11 7. The following rules should be observed -The pendulum action should be off when working with thin materials such as sheet metal. - Shut off pendulum action when using rasps or knifes. Fig 8 800W JIGSAW WITH LASER SF800XPL SF800XPL SJ800XPL-M-060525.indd 11 2006-5-26 18:34:45...
  • Page 12 Then position the rounded part at the front of the base plate on surface to be cut, slowly lower the saw into material at chosen point of entry. Lower the saw in a pivoting action SF800XPL SJ800XPL-M-060525.indd 12 2006-5-26 18:34:46...
  • Page 13 (See fig14) Fig 13 Fig 14 800W JIGSAW WITH LASER SF800XPL SF800XPL SJ800XPL-M-060525.indd 13 2006-5-26 18:34:47...
  • Page 14 Press the machine from above on to the material and guide the jigsaw along the cutting line. Fig 16b 5. Do not use too much pressure to achieve the SF800XPL SJ800XPL-M-060525.indd 14 2006-5-26 18:34:48...

  • Page 15: Maintenance

    90° to the base plate for normal use. 3There are no user serviceable parts in the jigsaw. If a fault can not be found return the saw to an authorised dealer for repair. 800W JIGSAW WITH LASER SF800XPL SF800XPL SJ800XPL-M-060525.indd 15 2006-5-26 18:34:48...

  • Page 16: Environmental Protection

    L. A 13AMP (BS1363 or BS1363/A) plug must be used and a 5 AMP fuse must be fitted. 5 AMP FUSE BLUE N (NEUTRAL) BROWN L (LIVE) OUTER SLEEVE CABLE GRIP SF800XPL SJ800XPL-M-060525.indd 16 2006-5-26 18:34:49...

  • Page 17: Declaration Of Conformity

    Standards and technical specifications referred to: EN 55014-1:2000/+A1:2001/+A2:2002 EN 55014-2:1997/+A1:2001 EN 61000-3-2:2000 EN 61000-3-3:1995/+A1:2001 EN 60745-2-11:2003 EN 60745-1:2003/+A1:2003 Authorised Signatory Date: 15/04/06 Signature: Name: Peter Harries Screwfix Direct Ltd Quality Manager 2006 800W JIGSAW WITH LASER SF800XPL SF800XPL SJ800XPL-M-060525.indd 17 2006-5-26 18:34:49...
