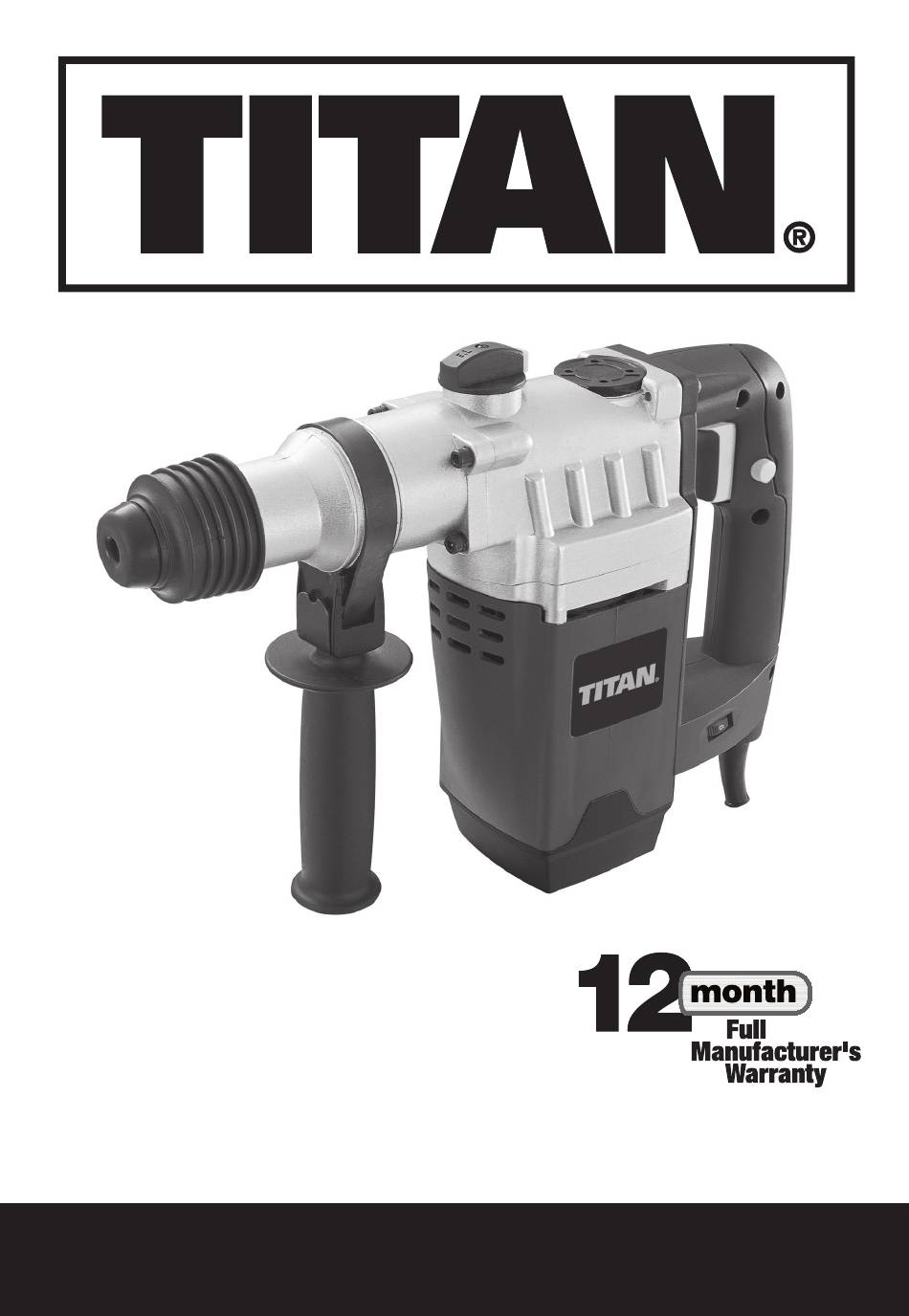

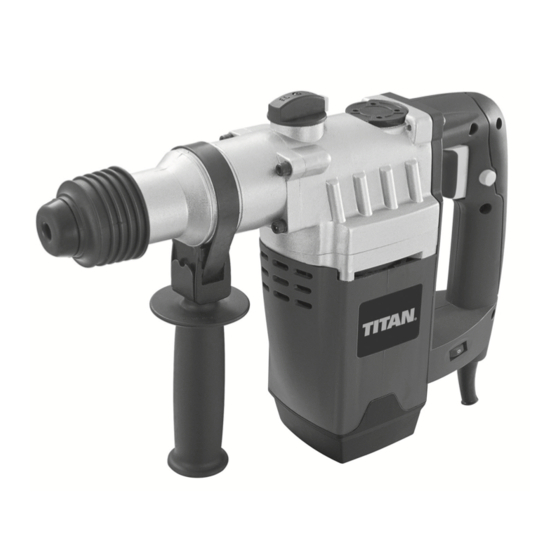

- Page 1 SAFETY AND OPERATING MANUAL 6kg SDS PLUS ROTARY HAMMER SF1022&SF26S6...
- Page 2 Congratulations on your purchase of a power tool from Screwfix Direct Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future. Your power tool comes with a 12-month guarantee,so should it develop a fault within this period contact Screwfix Direct Ltd on Freephone 0500 41...
-
Page 3: Safety Instructions
Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents. d. Remove any adjusting key or wrench before turning the power tool 6kg SDS PLUS ROTARY HAMMER SF1022&SF26S6... - Page 4 on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f.
- Page 5 The tool is double insulated.This means that all the external metal parts are electrically insulated from the mains power supply. This is done by placing insulation barriers between the electrical and mechanical components making it unnecessary for the tool to be earthed. 6kg SDS PLUS ROTARY HAMMER SF1022&SF26S6...
- Page 6 SYMBOLS Read the manual Warning Wear gloves Wear dust mask,eye & ear protection Conforms to relevant safety standards...
- Page 7 9. AUXILIARY HANDLE 10. DUST COVER 11. GEAR BOX COVER SPANNER 12. DEPTH GAUGE 13. GREASE POT 14. KEY CHUCK AND ADAPTER 15. SDS CHISEL BIT, 250mm (1 FLAT CHISEL, 1 POINT CHISEL ) 6kg SDS PLUS ROTARY HAMMER SF1022&SF26S6...
-
Page 8: Technical Data
Vibration level: 3.5m/s ACCESSORIES Auxiliary handle Grease pot Gear box cover spanner Depth gauge Dust cover Only for SF26S6 Only for SF1022 Key chuck and adapter 1 p c Diamond core 2pcs SDS drill bits 5pcs SDS drill bits 8pcs... - Page 9 Your switch is locked off to prevent accidental starting. Depress switch lock button then on/off switch and release lock button (see Fig4). Your switch is now on, to switch off just release the on/off switch. 5.VARIABLE SPEED SWITCH Fig 5 6kg SDS PLUS ROTARY HAMMER SF1022&SF26S6...
- Page 10 The speed increases as you turn the switch towards the higher number and decreases on the lower number. (See Fig 5) 6. USING THE KEY CHUCK The hammer comes supplied with a 1.5-13mm chuck, which is used for smaller drill bits. After deciding if hammer or normal drilling is required proceed with following instructions.
- Page 11 To maintain peak efficiency of the motor, we recommend regular inspection of the brushes. Replace when they wear down to length of about 6mm or less. To replace the brushes, remove the motor cover, Fig 13 6kg SDS PLUS ROTARY HAMMER SF1022&SF26S6...
-
Page 12: Maintenance
(see Fig15) Pull out the worn carbon brushes by pushing aside the spring clips, insert the new ones and loosen secure the cover. (see Fig16) 14.CHISEL AND DRILL BITS Inspect regularly chisel and drill bits for damage and sharpness. If in doubt obtain new chisels and Tighten bits from a qualified dealer. -
Page 13: Environmental Protection
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. 6kg SDS PLUS ROTARY HAMMER SF1022&SF26S6... -
Page 14: Plug Replacement
PLUG REPLACEMENT The fuse in the main plug of your power tool should always be replaced with one of identical rating. Check the voltage given on your power tool matches the supply voltage. The power tool is supplied with a fitted plug, however if you should need to fit a new plug follows the instruction below. - Page 15 Houndstone Business Park Yeovil BA 22 8RT Declare that the product 6kg SDS Plus Rotary Hammer Drill SF26S6&SF1022 Complies with the essential health and safety requirements of the following directives: 89/336/EEC, 93/68/EEC. –EMC Directive. 73/23/EEC, 93/68/EEC. –Low Voltage Directive. 98/37/EC. –Machinery Directive.
