350W Drill Press
CAUTION: Read the instructions before using the product.
MNL_TTB924DBT_350W Drill Press_GB_EU_V1_220421.indd 1
MNL_TTB924DBT_350W Drill Press_GB_EU_V1_220421.indd 1
TTB924DBT
EAN: 5059340397627
V10422 / BX220IM
2022/4/21 2:54 PM
2022/4/21 2:54 PM
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTB924DBT and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan TTB924DBT

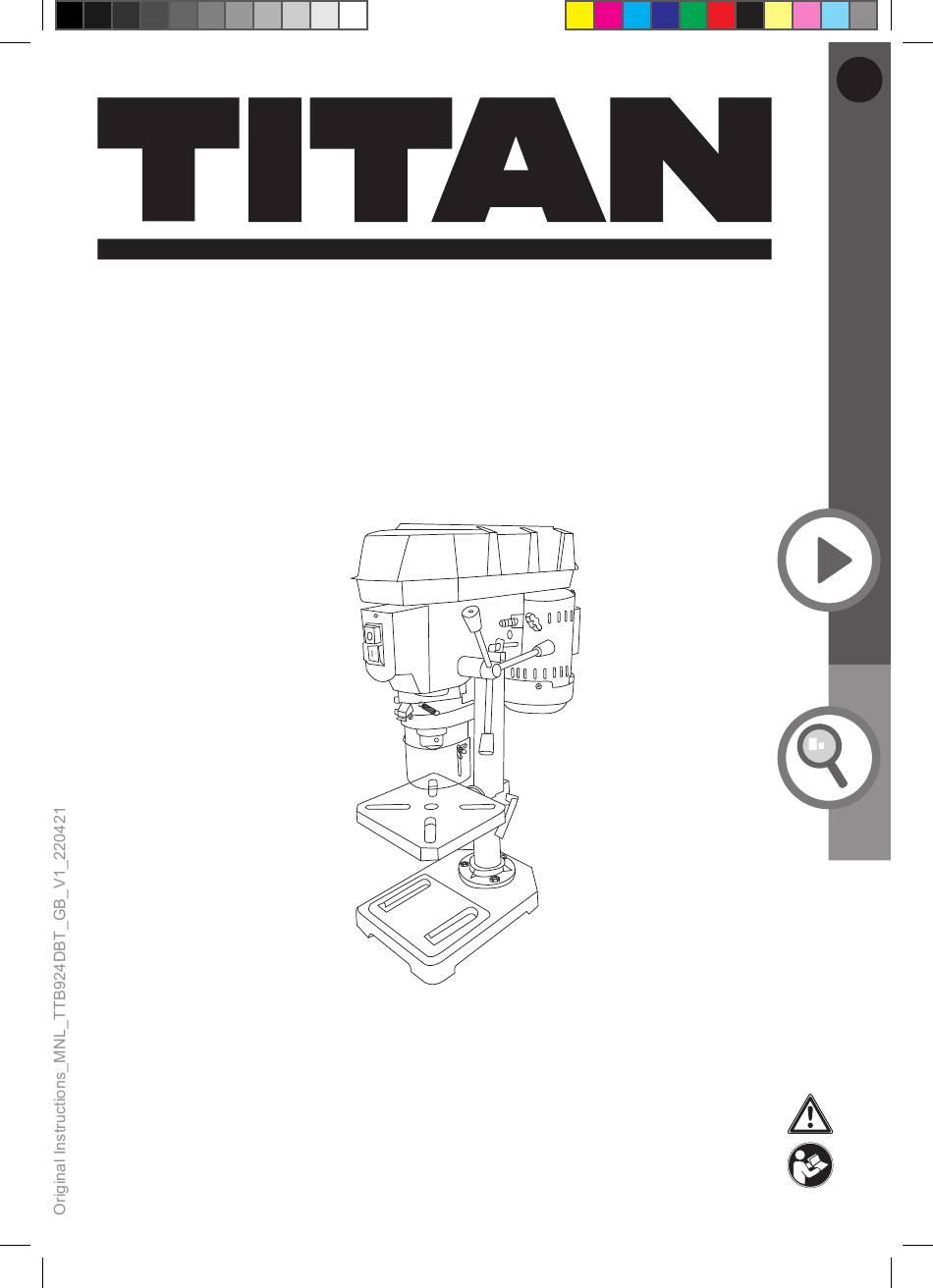

  • Page 1 350W Drill Press TTB924DBT EAN: 5059340397627 CAUTION: Read the instructions before using the product. V10422 / BX220IM MNL_TTB924DBT_350W Drill Press_GB_EU_V1_220421.indd 1 MNL_TTB924DBT_350W Drill Press_GB_EU_V1_220421.indd 1 2022/4/21 2:54 PM 2022/4/21 2:54 PM...
  • Page 2 Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Declaration of conformity...
  • Page 3: Safety Warnings

    TTB924DBT by TITAN Safety information Safety warnings General power tool safety warnings WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
  • Page 4 Safety information TTB924DBT by TITAN Safety warnings b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions.
  • Page 5 TTB924DBT by TITAN Safety information c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
  • Page 6 Safety information TTB924DBT by TITAN Safety warnings c) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
  • Page 7 TTB924DBT by TITAN Safety information 5) Service a) Have your power tools serviced by a qualified repair person using only identical replacement parts. This will ensure that safety of the power tool is maintained. Safety instructions for drill press a) The drill must be secured. A drill that is not properly secured may move or tip over and may result in personal injury.
  • Page 8 Safety information TTB924DBT by TITAN Safety warnings h) Never remove chips from the drilling area while the tool is running. To remove chips, move the accessory away from the workpiece, switch off the tool and wait for the accessory to stop moving.
  • Page 9 TTB924DBT by TITAN Safety information If the power supply cord is damaged, it must be replaced only by the manufacturer or by an authorised service centre to avoid risk. Care should be taken when drilling brass and copper as drill may jam and break if too much pressure is applied.
  • Page 10 Safety information TTB924DBT by TITAN Safety warnings To protect the lung, the COSHH Regulations sets a limit on the amount of these dusts that you can breathe (called a Workplace Exposure Limit or WEL) when averaged over a normal working day. These limits are not a large amount of dust: when compared to a penny it is tiny –...
  • Page 11 TTB924DBT by TITAN Safety information WARNING! Some dust particles created by power sanding, sawing, grinding, drilling and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints.
  • Page 12 Safety information TTB924DBT by TITAN Safety warnings The declared vibration emission value has been measured in accordance with a standardised test and may be used to compare one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.
  • Page 13 TTB924DBT by TITAN Safety information WARNING! Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
  • Page 14 Safety information TTB924DBT by TITAN Safety warnings c) Use correct attachments for the product and ensure they are in good condition. d) Keep tight grip on the handles/grip surface. e) Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
  • Page 15 TTB924DBT by TITAN Safety information Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design...
  • Page 16: Your Product

    Your product TTB924DBT by TITAN Your product 1. Pulley cover a. Clamp lever f. Hex bolt* (x2) a. Locking knob* 10. Support 15. Drill chuck 2. Belt pulley (x2) 11. Base a. Jaws* 3. Belt a. Mounting bolt (x3) 16. Spindle feed head 4.
  • Page 17: Technical Specifications

    TTB924DBT by TITAN Your product NOTE: Parts marked with * are not shown in this overview. Please refer to the respective part in the instruction manual. Technical specifications Drill Press > Rated voltage, frequency : 230-240 V~, 50 Hz > Rated input : 350 W S1, 500 W S6 40% >...
  • Page 18 (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). Rating label explanation TTB924DBT = Model number TT = TITAN B = Voltage (230-240 V~) 924 = Sequential Code...
  • Page 19 TTB924DBT by TITAN Your product Note / Remark. Caution / Warning. yyWxx Manufacturing date code; year of manufacturing (20yy) and week of manufacturing (Wxx) Read the instruction manual. Wear hearing protection. Wear eye protection. Wear a dust mask. Wear protective gloves when...
  • Page 20 Before you start TTB924DBT by TITAN Unpacking WARNING! The product is heavy, ask another person for assistance if required! 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices if applicable.
  • Page 21: You Will Need

    TTB924DBT by TITAN Before you start You will need ( items not supplied) (items supplied) Suitable personal protective equipment Chuck key (21) Suitable crosshead screwdriver 4mm hex key (22) Suitable vice Suitable wrench or hex key Mounting sets for drill press assembly...
  • Page 22 Before you start TTB924DBT by TITAN Column / base 1. Place the base (11) on a firm level surface. 2. Align the three mounting holes on the base (11) and support (10), then assemble the column (8) onto the base (11).
  • Page 23 TTB924DBT by TITAN Before you start Feed handles 1. Screw the three feed handles (7) clockwise onto the spindle feed head (16) (Fig. 4). Fig. 4 Chuck guard The chuck guard (14) is pre-assembled. Ensure that the chuck guard (14) is assembled on the machine head (6) using the clamp (14a) before use.
  • Page 24: Drill Chuck

    Before you start TTB924DBT by TITAN Drill chuck WARNING! Before assembling the drill chuck (15) to the spindle (6b), clean all mating surfaces with a clean cloth. Any oil or grease must be removed otherwise the chuck may come loose during operation. Do not connect to the power supply before it is...
  • Page 25: Connection To Power Supply

    TTB924DBT by TITAN Before you start There are 2 mounting holes (11b) on the base (11) to facilitate bench mounting. 1. Place the product on a level, horizontal bench or work table and fix the product on it with 2 mounting sets (not provided) (Fig.
  • Page 26 TTB924DBT by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Declaration of conformity MNL_TTB924DBT_350W Drill Press_GB_EU_V1_220421.indd 26 MNL_TTB924DBT_350W Drill Press_GB_EU_V1_220421.indd 26 2022/4/21 2:54 PM 2022/4/21 2:54 PM...
  • Page 27: Intended Use

    TTB924DBT by TITAN Product functions Intended use This drill press TTB924DBT is designated with a rated input of 350 Watts. This product is intended for drilling holes in wood and similar materials e. g. MDF, plywood etc., plastic and metal.
  • Page 28 Product functions TTB924DBT by TITAN Drill bits WARNING! Do not operate the product without the guard positioned correctly. After short operation, switch the product off and check once again that the bit is properly fastened! CAUTION! The drill bit could be hot! Inserting 1.
  • Page 29: Depth Adjustment

    TTB924DBT by TITAN Product functions Drill table Height adjustment Adjust the drill table (13) height according to the workpiece and depth to be drilled. 1. Turn the clamping lever (9a) anticlockwise to loosen the clamp (9) (Fig. 10, step 1).

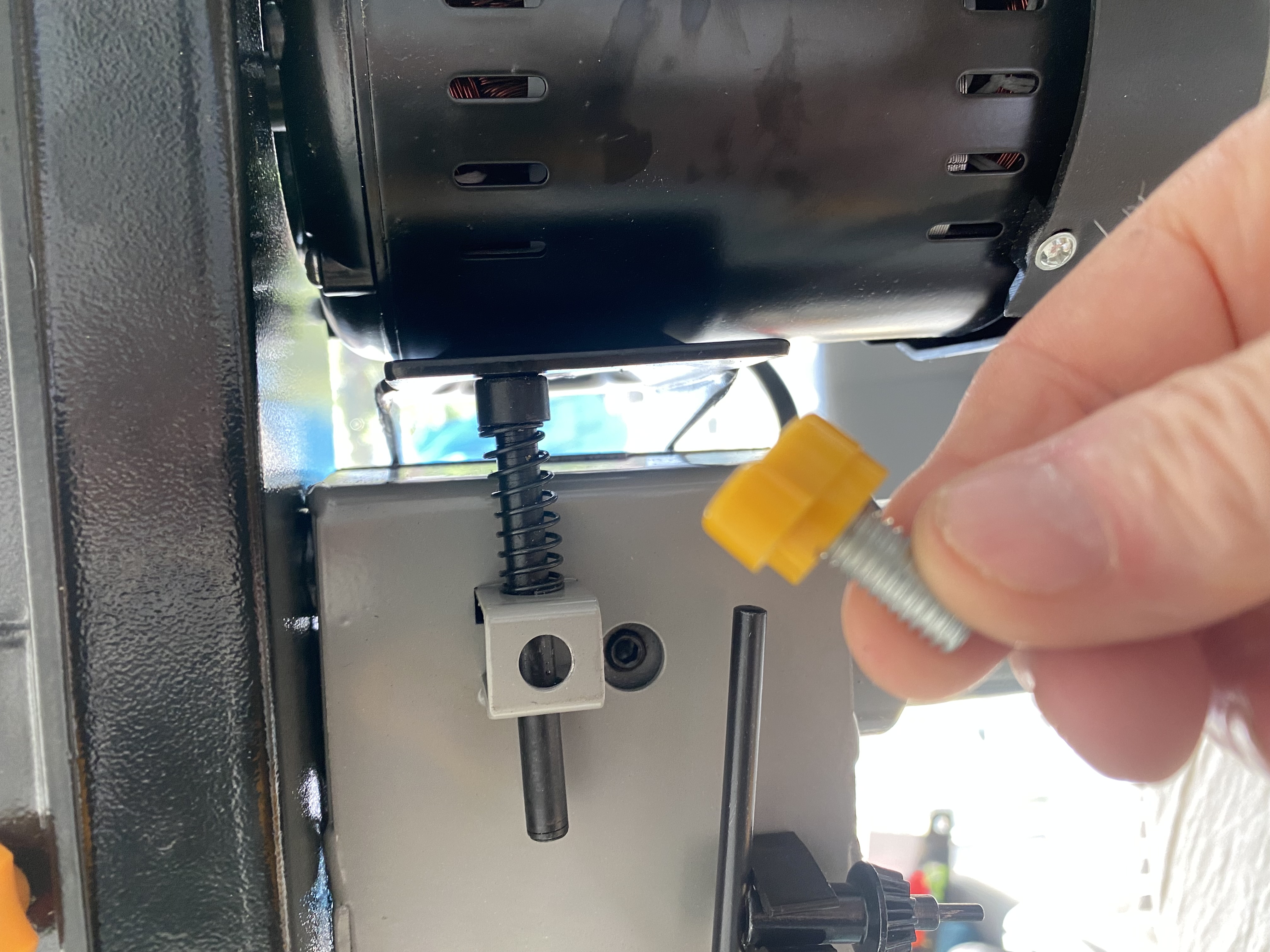

  • Page 30: Speed Adjustment

    Product functions TTB924DBT by TITAN Depth adjustment Fig. 12 NOTE: The drill bit will stop at the required depth. Once the lowest set position is reached, do not force down. Ensure the chuck guard does not interfere with the workpiece.
  • Page 31: On/Off Switch

    TTB924DBT by TITAN Product functions Ø (mm): Ø (mm): (U/min) <3 <4 2650 1800 1300 9-10 >8 >10 Fig. 14 NOTE: Always set the belts in parallel. Do not cross belts. Always test belt tension before operation by pressing the belt sides towards the center.
  • Page 32: General Operation

    Product functions / Operation TTB924DBT by TITAN On/off switch This machine can only be operated in continuous mode. 1. Switch the product on by pressing the green ON button I (18) and wait until the drill bit has reached maximum speed (Fig.
  • Page 33: After Use

    TTB924DBT by TITAN Operation Drilling WARNING! Always clamp the workpiece! Never try to work on a workpiece that is unsecured or only held by hand! Holding the workpiece by hand during operation may result in personal injury. Use the vice (not provided) to clamp workpieces that are too small!
  • Page 34: General Cleaning

    Care and maintenance TTB924DBT by TITAN The golden rules for care WARNING! Always switch the machine off, disconnect the machine from the power supply and let it cool down before performing inspection, maintenance and cleaning work! 1. Keep the machine clean. Remove debris from it after each use and before storage.
  • Page 35: Power Cord

    TTB924DBT by TITAN Care and maintenance Power cord If the replacement of the supply cord (12) is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. UK plug If you need to replace the fitted plug, then follow the instructions below.
  • Page 36: Troubleshooting

    Care and maintenance / Troubleshooting TTB924DBT by TITAN Repair This machine does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Storage 1.
  • Page 37 TTB924DBT by TITAN Troubleshooting Problem Possible cause Solution 1. Product does not 1.1. Not connected to 1.1. Connect to power start power supply supply 1.2. Power cord or plug is 1.2. Check by a specialist defective electrician 1.3. Other electrical defect 1.3.
  • Page 38: Recycling And Disposal

    Recycling and disposal TTB924DBT by TITAN Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. For further information visit www.recycle-more.co.uk.
  • Page 39 TTB924DBT by TITAN Guarantee Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product ( 350W Drill Press) has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non- professional or commercial) household use.
  • Page 40 Declaration of conformity TTB924DBT by TITAN (EN) EU DECLARATION OF CONFORMITY (FR) DÉCLARATION UE DE CONFORMITÉ (PL) DEKLARACJA ZGODNOŚCI UE (RO) DECLARAȚIA DE CONFORMITATE UE (ES) DECLARACIÓN UE DE CONFORMIDAD (PT) DECLARAÇÃO DE CONFORMIDADE UE Product/ Produit/ Produkt/Produsul/Producto/Produto • 350W Drill Press /Perceuse à colonne 350W/Wiertarka stołowa 350W/Mașină de găurit cu coloană, 350 W/ Taladro de columna de 350 W/Berbequim de coluna de 350 W •...
  • Page 41 TTB924DBT by TITAN Declaration of conformity 2006/42/EC as amended Machinery Directive 2014/30/EU as amended Directive Electromagnetic compatibility 2011/65/EU as amended Directive Restriction of the use of certain hazardous substances in electrical and electronic equipment Directive 2006/42/CE relative aux machines 2014/30 / UE telle que modifiée Directive Compatibilité électromagnétique Directive 2011/65/UE relative à...
  • Page 42 Declaration of conformity TTB924DBT by TITAN Authorised signatory and technical file holder/signataire et responsable de la documentation technique authorisé/ podmiot uprawniony do wystawienia i adres prezechowywania dokumentacji technicznej/semnatar autorizat și deținător al dosarului tehnic/firmante autorizado y titular del expediente tecnico/ signatário autorizado e detentor da ficha técnica...
  • Page 43 TTB924DBT by TITAN Declaration of conformity MNL_TTB924DBT_350W Drill Press_GB_EU_V1_220421.indd 43 MNL_TTB924DBT_350W Drill Press_GB_EU_V1_220421.indd 43 2022/4/21 2:54 PM 2022/4/21 2:54 PM...
  • Page 44 Manufacturer,Fabricant,Producent,Produc tor,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square, London, W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.diy.com To view instruction manuals online, visit www.screwfix.com www.kingfisher.com/products www.screwfix.ie www.castorama.fr Pour consulter les manuels d’instructions en ligne,...
