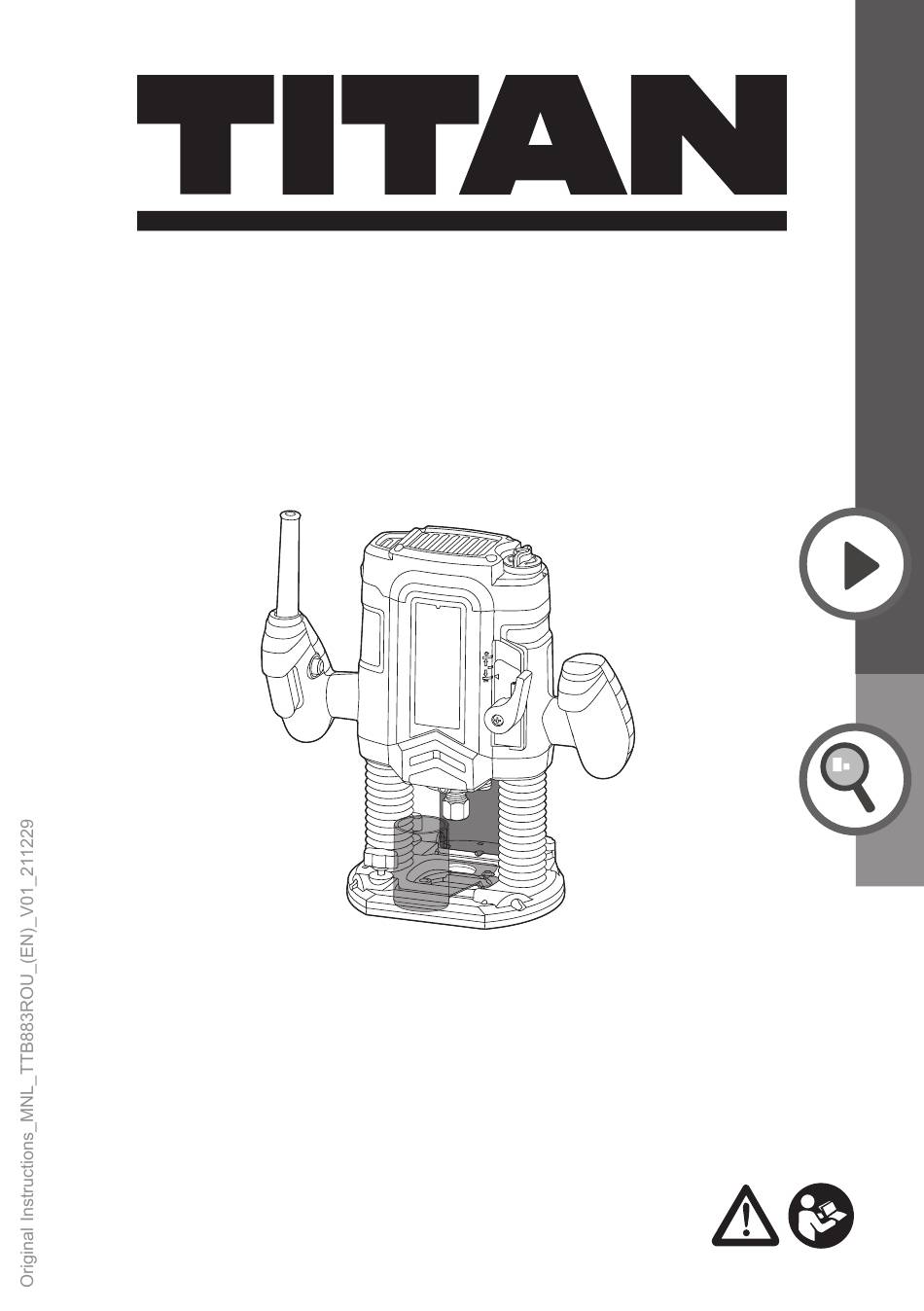

- Page 1 TTB883ROU EAN: 5059340253664 WARNING! Read the instructions before using the product!
-
Page 2: Table Of Contents
TTB883ROU Let's get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety Symbols Your product Technical and legal information Before you start more detail... Product functions... - Page 3 Safety TTB883ROU Safety warnings General power tool safety warnings WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
-
Page 4: Safety
Safety TTB883ROU Safety warnings Electrical safety 1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. - Page 5 Safety TTB883ROU Personal safety 1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 6 Safety TTB883ROU Safety warnings 7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. 8. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
- Page 7 Safety TTB883ROU with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. 5. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation.
- Page 8 Safety TTB883ROU Safety warnings Additional safety warnings for router 1. Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact its own cord. Cutting a “live” wire may make exposed metal parts of the power tool “live”...
- Page 9 Safety TTB883ROU • The bit must be running at full speed before lowering into the work-piece. • When operating the machine, take great care and always hold the router handles firmly with both hands. Always keep secure footing when working.
- Page 10 Safety TTB883ROU Safety warnings • Avoid cutting nails and screws. Inspect timber and remove all nails and screws before cutting. • In the event of an electrical or mechanical malfunction, immediately switch off the router and disconnect the power lead from the mains supply.
- Page 11 Safety TTB883ROU as concrete and mortar. The silica is broken into very fine dust (also known as Respirable Crystalline Silica or RCS) during many common tasks such as cutting, drilling and grinding Breathing in very fine particles of crystalline silica...
- Page 12 Safety TTB883ROU Safety warnings Please always work with approved safety equipment, such as those dust masks that specially designed to filter out microscopic particles and use the dust extraction facility at all time. For more information, please see the HSE website: http://www.hse.
- Page 13 Safety TTB883ROU Vibration The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users...
-
Page 14: Symbols
Symbols TTB883ROU NOTE: The use of other tools will reduce the users’ total working period on this tool. Health surveillance All employees should be part of an employer’s health surveillance scheme to help identify any vibration related diseases at an early stage, prevent disease progression and help employees stay in work. - Page 15 Symbols TTB883ROU Class II equipment Manufacturing date code: Year of manufacturing yyWxx (20yy) and week of manufacturing (Wxx) The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. UK Comformity Assessed...
-
Page 16: Your Product
Your product TTB883ROU Your product... - Page 17 TTB883ROU 1. On/off switch 9a. Fine adjustment knob 2. Lock-off button 9b. Scale wheel 3. Speed adjuster 10. Locking screw 4. Plunge lock lever 11. Screw for edge guide 5. Spindle lock button 12. Base plate 6. Socket 13. Handle 6a.
-
Page 18: Technical And Legal Information
Technical and legal TTB883ROU information Technical specifications Router Rated voltage, frequency: 220 -240 V~, 50 Hz Rated power input: 1200 W Rated no load speed n 11000 - 30000 /min Collet size: 6.35 / 8 mm Max cutting depth: 55mm Weight: 3.2 kg... -
Page 19: Before You Start
Before you start TTB883ROU RATING LABEL EXPLANATION TTB883ROU = MODEL NUMBER TT= TITAN B=240V AC 883= Version Number ROU = Router... - Page 20 Before you start TTB883ROU Unpack Unpack all parts and lay them on a flat, stable surface. Remove all packing materials and shipping devices if applicable. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
- Page 21 Before you start TTB883ROU Router bits selection Router bits are available in various shapes and sizes. Below is only a short overview of the most commonly found shapes. Ask in store for more choices. Type Profile Straight bit V-groove bit...
- Page 22 Before you start TTB883ROU WARNING! Use only routing tools whose allowable speed is at least as high as the highest no-load speed of the machine. Always use router bits according to the intended use! Observe the technical specifications of this...
- Page 23 Before you start TTB883ROU Keep the spindle lock button (5) depressed and fully tighten the collet nut (6a) using the wrench (16) (Fig.2). Release the spindle lock button (5). Raise the transparent cover (14) (Fig.3). To remove the bit, lower the transparent cover (14). Press the spindle lock button (5) and keep it pressed.
- Page 24 Before you start TTB883ROU Installing edge guide The edge guide (15) is an effective aid to cutting in a straight line when chamfering or grooving. Loosen the two screws (11) for edge guide (Fig.5). Feed the bars on the edge guide through the holes in the base plate (12).
- Page 25 TTB883ROU Fig.7 Fig.8 Connection to the power supply 1. Make sure the on/off switch (1) is in its off position. 2. Connect the plug with a suitable socket. WARNING! Check the voltage! The voltage must comply with the information on the rating label!
-
Page 26: In More Detail
detail... more Product functions Operation Care and maintenance Trouble shooting Guarantee Declaration of conformity... - Page 27 Product functions TTB883ROU Intended use This product is intended for routing grooves, edges, profiles and elongated holes as well as for template cuts in wood, plastic and light building materials, while resting firmly on the workpiece. Coarse adjusting the depth cut The depth of cut is the distance between the depth stop (8) and the depth stop buffer (7).
- Page 28 Product functions TTB883ROU Fine adjusting the depth cut Use the adjustment knob (9a) for precise setting of cutting depth. The adjustment can be done both in locking and releasing position of lunge lock lever (4). Turning of adjustment knob (9a) can perform fine adjustment of cutting depth according following information: 1 mark on scale wheel (9b) = 0.1 mm...
- Page 29 Product functions TTB883ROU 2. Pre-adjustment of varying depth-of-cuts If several different depth-of-cuts are required for the machining of a workpiece, these can also be pre-adjusted by using the step buffer (7). Fig.13 Routing for general tasks The feed motion of the router must always be carried out against the rotation direction of the router bit (up-grinding).
- Page 30 Product functions TTB883ROU Speed adjuster With the thumbwheel (3), the required speed can be selected (Fig.15). low speed medium speed high speed Material Router bit diameter Speed stages Hardwood (Beech) 4-10mm 12-20mm 22-40mm Softwood (Pine) 4-10mm 12-20mm 22-40mm Particle board...
- Page 31 Product functions TTB883ROU On/off switch WARNING! Always check that the power supply is the same as that indicated on the nameplate of the tool. The tool is equipped with a lock-off button (2) to avoid unintention- al starting. WARNING! Before plugging the tool into the power point always check that the trigger switch and lock-off button 2 work properly.
- Page 32 Product functions TTB883ROU 1. Routing with guide bush The guide bush (21) enables template and pattern routing on workpieces. Turn the router upside down. Fix guide bush (21) to the bottom of the base plate (12) with the two screws (18) and two fixing nuts (19) (Fig.17).
- Page 33 Product functions TTB883ROU 2. Routing with parallel guide Slide the parallel guide (15) with the guide rods into the base plate (12) and tighten at the required measurement with the screws for edge guide (11). Guide the machine with uniform feed and side- ward pressure on the parallel guide (15) along the edge of the workpiece (Fig.19).
- Page 34 Operation TTB883ROU The golden rules for cleaning WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! Keep the product clean. Remove debris from it after each use and before storage.
- Page 35 Operation TTB883ROU • Check for worn or damaged parts. Replace worn parts as necessary or contact an authorised service centre for repair before using the product again. Maintenance Before and after each use, check the product and accessories (or attachments) for wear and damage. If required, exchange them for new ones as described in this instruction manual.
- Page 36 Care and maintenance TTB883ROU Plug replacement If you need to replace the fitted plug, then follow the instructions below. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue – Neutral Brown – Live...
- Page 37 Care and maintenance TTB883ROU Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recycle-more.co.uk Repair •...
- Page 38 Care and maintenance TTB883ROU Transportation • Switch the product off and disconnect it from power supply before transporting it anywhere. • Attach transportation guards, if applicable. • Always carry the product by its handle. • Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
- Page 39 Troubleshooting TTB883ROU Trouble shooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within...
- Page 40 We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product (TITAN 1200W Router) has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost.
- Page 41 TTB883ROU EC declaration of conformity (UK) DECLARATION OF CONFORMITY Product • 1200W Router • MR1200 / TTB883ROU • Serial number 00001-99999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer.
- Page 42 • 1200W Router/Défonceuse 1200W/Frezarka 1200W/Freză electrică de 1200 W/ Fresadora de 1200 W/Tupia de 1200 W • MR1200 / TTB883ROU • Serial number 00001-99999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nazwa i adres producenta lub jego upoważnionego przedstawiciela:...
- Page 43 TTB883ROU The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: L’objet de la déclaration décrit ci-dessus est conforme à la législation d’harmonisation de l’Union applicable: Wymieniony powyżej przedmiot niniejszej deklaracji jest zgodny z odnośnymi wymaganiami unijnego prawodawstwa harmonizacyjnego: Obiectul declarației descris mai sus este în conformitate cu legislația relevantă...
- Page 44 TTB883ROU References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared: Références des normes harmonisées pertinentes appliquées, y compris la date de celles-ci, ou des autres caractéristiques techniques, y compris la date de celles-ci, par rapport auxquelles la conformité...
- Page 48 Manufacturer,Fabricant,Producent,Producător,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square, London, W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.screwfix.com To view instruction manuals online, visit www.screwfix.ie www.kingfisher.com/products www.bricodepot.fr Pour consulter les manuels d’instructions en ligne, rendez-vous sur le site www.kingfisher.com/products www.bricodepot.es...
