Summary of Contents for Titan TTB591ROU

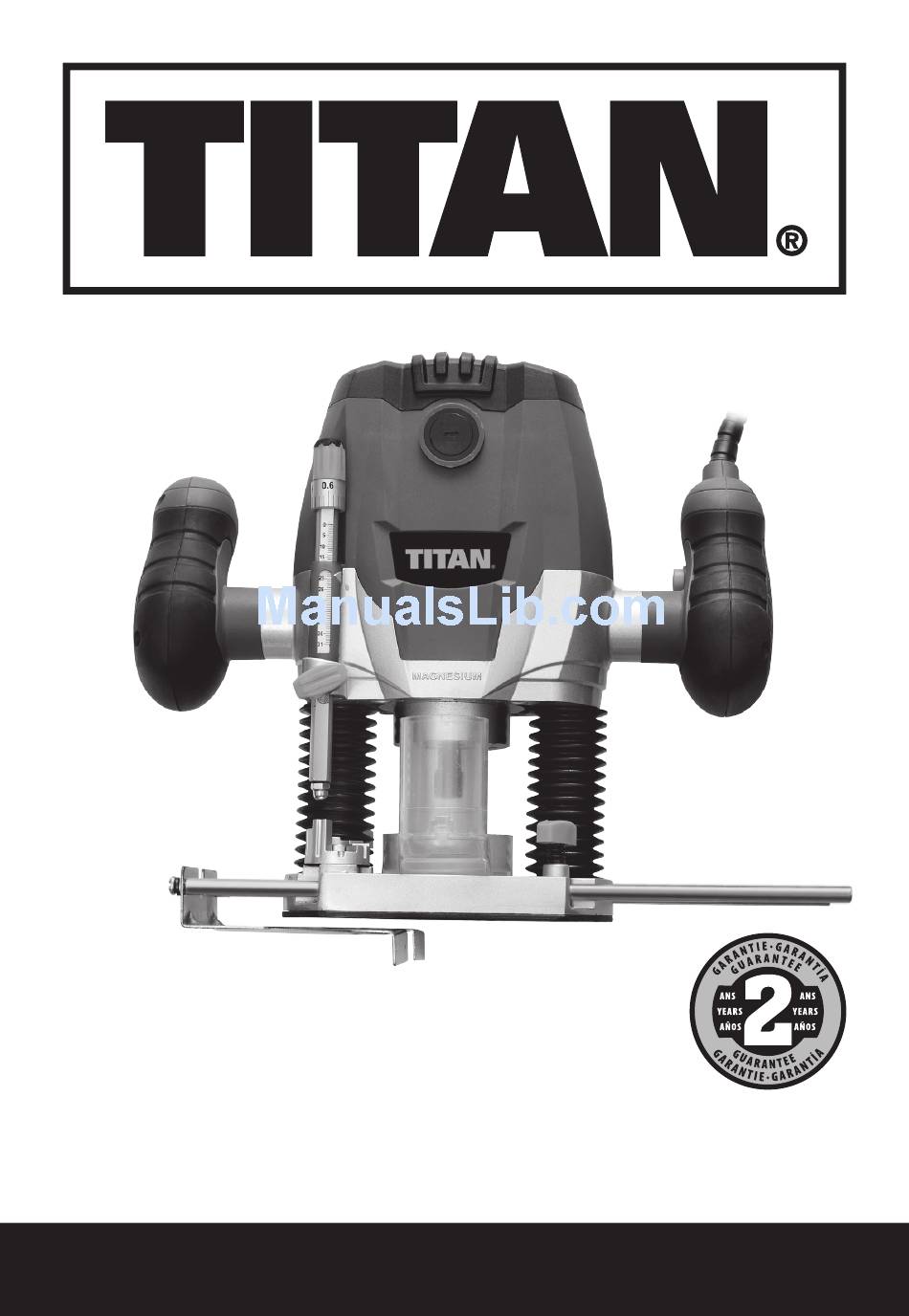

- Page 1 SAFETY AND OPERATING MANUAL Original Instructions ROUTER 1250W TTB591ROU...
- Page 3 - Failure to follow manufacturer’s guidelines - Loss of use of the goods This guarantee does not affect your statutory rights. This guarantee is only valid in the For any enquiries relating to the guarantee please refer to your retailer. ROUTER 1250W TTB591ROU...
-
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WaRninG: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 5) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. ROUTER 1250W TTB591ROU...
- Page 6 ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR ROUTER 1. Hold power tool by insulated gripping surfaces, because the cutter may contact its own cord. Cutting a “live” wire may make exposed metal parts of the power tool “live” and shock the operator. 2.
- Page 7 To reduce your exposure to these chemicals: • Work in a well ventilated area. • Work with approved safety equipment, such as those dust masks that specially designed to filter out microscopic particles and use the dust extraction facility at all time. ROUTER 1250W TTB591ROU...
- Page 8 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
- Page 9 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. Conformity to CE directive yyWxx Manufacturing date code; Year of manufacturing (20yy) and week of manufacturing (Wxx); ROUTER 1250W TTB591ROU...
- Page 10 1. Depth stop bar with micro-adjustment 2. Turret depth stop 3. Parallel guide locking knob 4. Spindle lock 5. Carbon brush cap 6. Lock off button 7. ON/OFF trigger switch 8. Collet nut 9. Plunge lock lever 10. Variable speed dial 11.
-
Page 11: Technical Data
: 3dB(A) A weighted sound power 96.9dB(A) K : 3dB(A) Wear ear protection when sound pressure is over 80dB(A) ACCESSOIRES Dust extraction adaptor Guide bush Parallel guide Spanner Collet 6.35mm(1/4” for UK) Centre pin Long screws (20mm) 2pcs ROUTER 1250W TTB591ROU... -
Page 12: Intended Use
OPERATIONS INSTRUCTIONS noTE: Before using the tool, read the instruction book carefully. inTEnDED USE This router shall be used for only for light works on the wood. Other uses for the tool will lead to the damage of the tool and a series of dangers to the operator. -
Page 13: Adjusting Depth Of Cut
5. MaRKinG FinE aDJUSTMEnT To CUT Fig. 8 DEPTH (See Fig. 7) If you want to make some accurate adjustment, micro-adjustment can be made by turning the micro depth adjustment knob (b). ROUTER 1250W TTB591ROU... - Page 14 Fig. 7 6. FiTTinG THE PaRaLLEL GUiDE (See Fig. 8) Before using the parallel guide you will need to assemble the guide. Remove the two screws and washers from the end of the two bars and fit the guide to the bars using the washers and screws you removed.
-
Page 15: Speed Dial
3. Determine the optimum speed by making a trial cut in a scrap piece of material. The setting on the dial equates approximately to no-load speeds that increase from approximately 11000min to approximatel 30000min in 7 steps. ROUTER 1250W TTB591ROU... -
Page 16: Starting The Router
Ensure that you use the correct setting for the maximum rated speed of the router bit used. Symbol indicator of Speed position speed(min 11000 15000 20000 24000 27000 29000 30000 noTE: Above speed table maybe can not accurate match your product speed, as it is our experience data. -
Page 17: Maintenance
‘bed’ down. ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recyclemore.co.uk ROUTER 1250W TTB591ROU... -
Page 18: Plug Replacement
PLUG REPLACEMENT (UK & IRELAND ONLY) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: BLUE =NEUTRAL Brown = Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. -
Page 19: Declaration Of Conformity
En 55014-2:1997+a1: 2001+a2: 2008 En 61000-3-2: 2006+a1: 2009+a2: 2009 En 61000-3-3: 2008 authorised signatory and technical file holder Date: 01/01/2014 Signature: Name / title: Peter Harries / Quality Manager Titan Power Tools (UK) Ltd. Trade House, Mead Avenue, BA22 8RT ROUTER 1250W TTB591ROU...
