- Page 1 11’ 10’ O C/ Cantilever Assembly and Operation Guide...
- Page 2 Thank you for your purchase of Treasure Garden’s AKZ/AKZSQ Cantilever Umbrella. Please remove all contents from the package, inspect and review checklist. CAUTION: To reduce personal injury and damage to your AKZ/AKZSQ, read and follow this assembly and operation guide We recommend a two-person team for assembly and disassembly.
- Page 3 AKZ/AKZSQ PART LIST Part Description Qty. Base Shell Base Lid Steel Wrench Inverted Base Stem Mounting Plate Playground Sand (not included) 200 lbs. Large Hexagon Wrench AKZ Main Frame Crank Lift Handle Small Hexagon Wrench Hub Bolts Plate Bolts Washers REQUIRED FOR ASSEMBLY: •...
- Page 4 S T E P 1 Base Assembly Select area to set AKZ base and place in desired location. NOTE: Moving the umbrella will be difficult once fully assembled. Remove mounting plate from inverted base stem (Fig. 1). Remove the inverted base stem by using the steel wrench (provided) turning counter-clockwise (Fig.

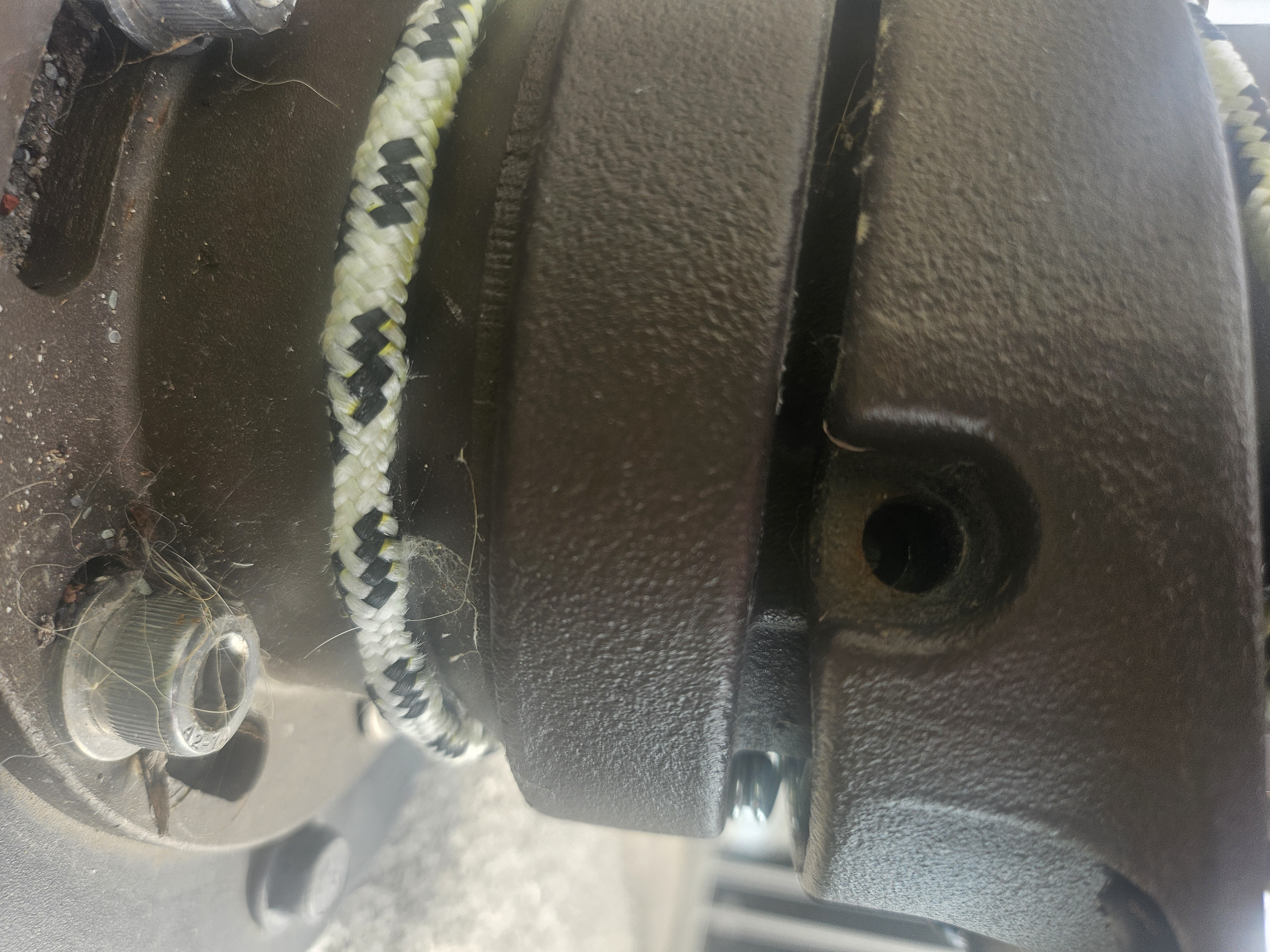

- Page 5 S T E P 2 Umbrella Assembly NOTE: Two-persons recommended for team lift and the rest of the assembly. Remove rotating hub from the main frame by removing the (2) main frame bolts (Fig. 10), set aside bolts for later use. Now, place rotating hub into mounting plate (Fig. 11) and tighten with supplied (5) washers &...
- Page 6 S T E P 3 Operation To OPEN Canopy: Slowly turn the crank lift handle clockwise (Fig. 15) to open the umbrella to a level position. CAUTION: Stop turning the crank handle as soon as the umbrella cover is completely open and the sleeve on the umbrella pole has reached its maximum height (Fig.
- Page 7 IMPORTANT: To avoid personal injury or damage to the AKZ umbrella, it is important before you use the tilt feature to make sure the area around you is clear from any outdoor structure or furniture. To TILT Canopy: Make sure canopy is fully OPEN. Position yourself in front of the tilt lever and pull loop lock from main frame track (Fig.
- Page 8 AKZ/AKZSQ Features To OPERATE the 360° Rotating Hub Swivel: Place your foot on the base pedal of the rotating hub and push to release rotating lock (Fig. 24). Place one hand on the main frame and one hand on the tilt lever (Fig. 25), swivel the umbrella frame in either direction until desired position is reached (Fig.
- Page 9 AKZ/AKZSQ Features To ATTACH VEGA Umbrella Light: Loosen the VEGA light adapter built into the umbrella runner by turning counter-clockwise (Fig. 27). After loosening, pull down light adapter post (Fig. 28) to attach the VEGA umbrella light (sold separately). To OPEN and ATTACH VEGA: Open the VEGA umbrella light by holding firmly with one hand and then depress the clamp release button with the other hand to release the clamp lock.
- Page 10 S A F E T Y P R E C A U T I O N S : • Close the umbrella in windy conditions or when a storm approaches. Never allow the umbrella to flap in the wind; this could damage the canopy. •...
- Page 11 If a defect in the original material or inspection) is deemed to be “not covered” workmanship appears during the warranty under our warranty, will be shipped/billed period; Treasure Garden will (at its option) at your expense. repair or replace the product without Limited warranty of 4 years charge.
