Summary of Contents for Treasure Garden Cantilever AKZ13

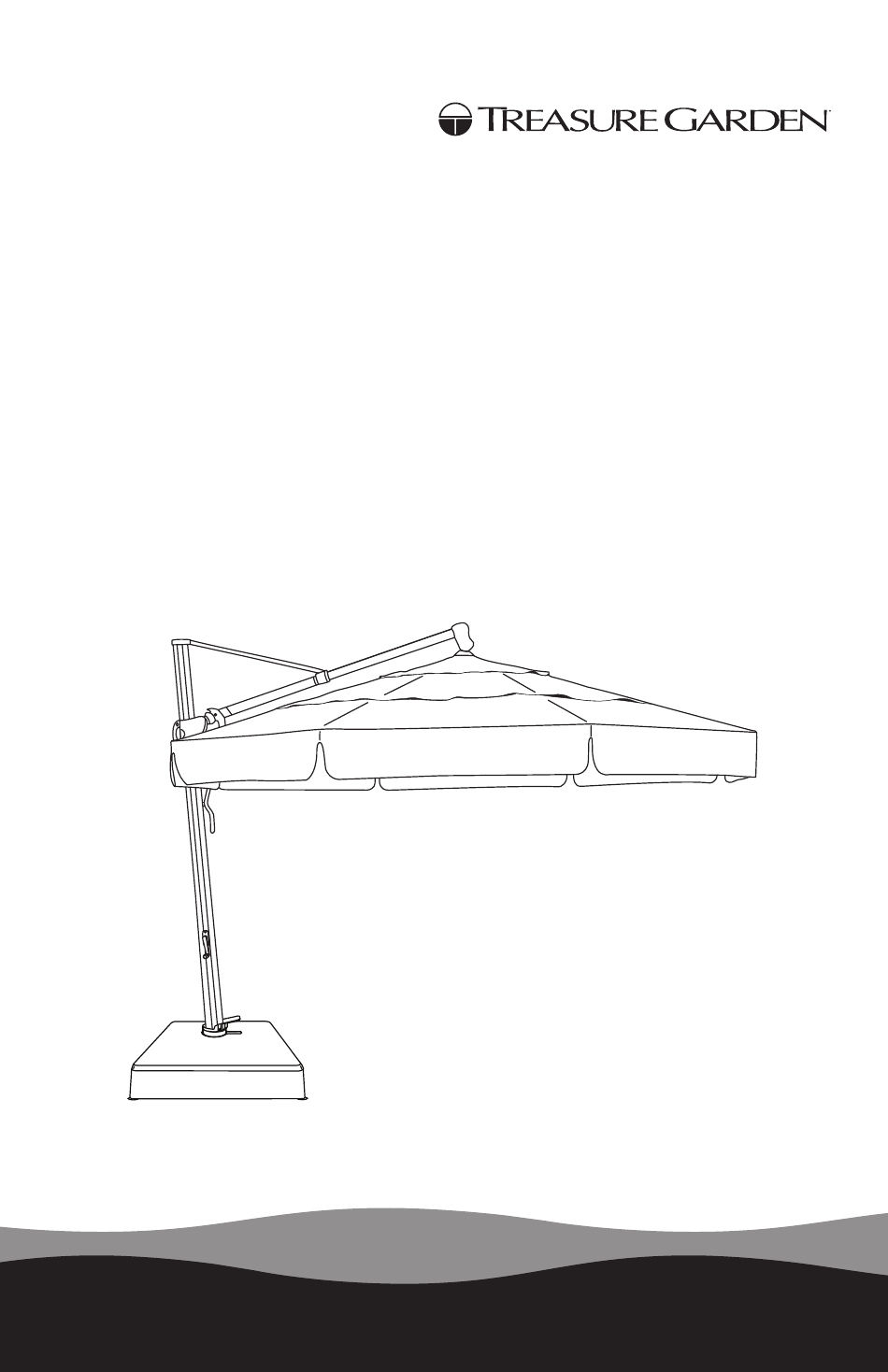

- Page 1 AKZ13/AKZRT 13’ /10’x13’ Cantilever Assembly and Operation Guide...
- Page 2 Thank you for purchasing Treasure Garden’s AKZ Cantilever Umbrella. Please remove all contents from the package, inspect and review checklist. CAUTION: To reduce personal injury and damage to your umbrella, read and follow this assembly and operation guide. We recommend a two-person team for assembly and disassembly.
- Page 3 AKZ PART LIST Part Description Qty. AKZ Main Frame Crank Lift Handle Hub Bolts Washers 8mm Hexagon Wrench 6mm Hexagon Wrench 2.5mm Hexagon Wrench IMPORTANT: Prior to assembly it is important to decide on the location of the umbrella. • Allow ample height to avoid damage to your umbrella during assembly and usage. •...
- Page 4 NOTE: REFER TO SEPARATE BASE-13 OR MOUNT KIT MANUAL FOR BASE/MOUNT ASSEMBLY PRIOR TO PROCEEDING. S T E P 1 Umbrella Assembly Two-persons recommended for team lift and to complete assembly. With base cover in place or mount kit installed, insert the main frame onto the installed rotating hub (Fig.
- Page 5 S T E P 2 Operation To Open Canopy: Slowly turn the crank lift handle clockwise to open the umbrella to a level position (Fig. 4). CAUTION: Stop turning the crank handle as soon as the umbrella cover is completely open and the sleeve on the umbrella pole has reached its maximum height (Fig.
- Page 6 IMPORTANT: PRIOR TO USING THE TILT FEATURE. To avoid personal injury or damage to the umbrella, make sure the area behind you is clear and free from any furniture or structure. To Tilt Canopy: Make sure canopy is fully OPEN. Position yourself in front of the tilt lever and pull loop lock from main frame track (Fig.
- Page 7 AKZ Features To OPERATE the 360° Rotating Hub Swivel: Place your foot on the foot pedal of the rotating hub and step-on the foot pedal to release rotating lock (Fig. 13). Place one hand on the main frame and one hand on the tilt lever (Fig.
- Page 8 AKZ Features To ATTACH Umbrella Light: (sold separately) Loosen the light adapter built into the umbrella runner by turning counter-clockwise (Fig. 16). After loosening, pull down light adapter post (Fig. 17) to attach the umbrella light (sold separately). To REMOVE Umbrella Light and CLOSE adapter: Remove umbrella light, and gently push up the light adapter post back into umbrella runner and tighten turning clockwise (Fig.
-
Page 9: Care And Maintenance
S A F E T Y P R E C A U T I O N S : • When adjusting the umbrella, make sure that no person(s) or item(s) are close to the umbrella. This is important to prevent injury or material damage. •... -
Page 10: Warranty
This warranty gives you specific legal appears during the warranty period; rights, and you may have other rights Treasure Garden will (at its option) repair which vary from state to state. or replace the product without charge. RUST: Rust is a natural part of the... - Page 11 ©2018 Treasure Garden, Inc. - All Rights Reserved. Rev. 10/18...
