OPERATION MANUAL
INSTRUCTIONS FOR BOTH: AKZ 11 ft. (Octagon) & AKZSQ 10 ft. X 10 ft. (Square)

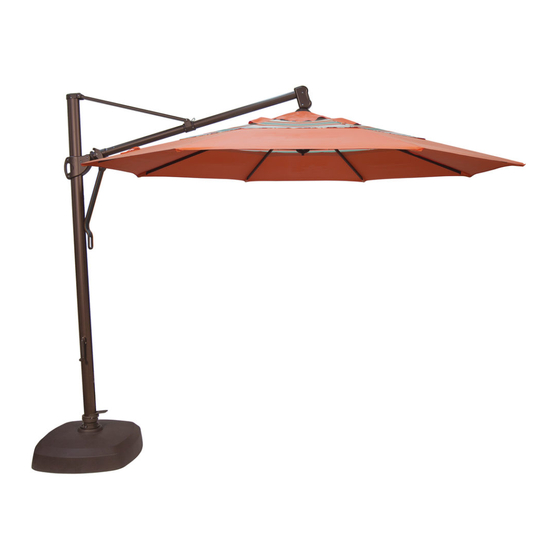

1 1 F T. C O M M E R C IA L C A NT I L EV E R U M B R E L L A
AKZ 11 ft. (Octagon)
AKZSQ 10 ft. X 10 ft. (Square)
©2005 Treasure Garden, Inc. All Rights Reserved. Effective Date 6/20/05
CONTENTS
Important Parts and Names
Assembly Instructions
Operation Instructions
Important Notes
®
2
3 - 5
6 - 8
9

Advertisement

loading

Related Manuals for Treasure Garden AKZ

Summary of Contents for Treasure Garden AKZ

  • Page 1 1 1 F T. C O M M E R C IA L C A NT I L EV E R U M B R E L L A CONTENTS Important Parts and Names Assembly Instructions 3 - 5 Operation Instructions 6 - 8 Important Notes AKZ 11 ft. (Octagon) AKZSQ 10 ft. X 10 ft. (Square) ©2005 Treasure Garden, Inc. All Rights Reserved. Effective Date 6/20/05...

  • Page 2: Important Parts And Names

    1 1 F T. C O M M E R C IA L C A NT I L EV E R U M B R E L L A IMPORTANT PARTS AND NAMES (10) (11) Base Shell Base Lid 1. Base Shell and Base Lid 7.
  • Page 3 1 1 F T. C O M M E R C IA L C A NT I L EV E R U M B R E L L A ASSEMBLY INSTRUCTIONS Parts All our products are tested for quality and completeness before delivery. Check the contents of the packaging before starting assembly.

  • Page 4: Bolt

    1 1 F T. C O M M E R C IA L C A NT I L EV E R U M B R E L L A ASSEMBLY INSTRUCTIONS Assemble the AKZ 360 Rotating Base Hub 1. Separate the rotating hub from the AKZ main frame by pulling it out from the frame (Fig.1).

  • Page 5: Assembly Instructions

    1 1 F T. C O M M E R C IA L C A NT I L EV E R U M B R E L L A ASSEMBLY INSTRUCTIONS To Assemble AKZ Cantilever Umbrella 1. Remove the umbrella and set it into the rotating hub in the upright position (Fig.1).

  • Page 6: Operation Instructions

    1 1 F T. C O M M E R C IA L C A NT I L EV E R U M B R E L L A OPERATION INSTRUCTIONS Before You Open Your AKZ Umbrella Note the following product dimensions: - Height measurement including base is 10 ft.
  • Page 7 1 1 F T. C O M M E R C IA L C A NT I L EV E R U M B R E L L A OPERATION INSTRUCTIONS Important: Before you use the tilt feature on the AKZ Umbrella it is important to make sure the area behind you is clear to avoid personal injury or damage to the umbrella as well as any other outdoor structure or furniture.

  • Page 8: Operation Instructions

    1 1 F T. C O M M E R C IA L C A NT I L EV E R U M B R E L L A OPERATION INSTRUCTIONS Operating the AKZ 360º Rotating Hub Swivel Feature 1. Place your foot on the foot pedal of the Rotating Hub and Step-On the base pedal to release rotating lock (Fig.1).

  • Page 9: Important Notes

    Treasure Garden products are guaranteed for ONE FULL YEAR to be free from defects in original material and workmanship. If a defect in the original material or workmanship appears during the warranty period; Treasure Garden (at its option) will replace or repair your product without charge.
