- Page 1 Assembly and Operation Guide AKZ PLUS CANTILEVER AKZP13LX 13’ octagon AKZP13 13’ octagon AKZPRT 10’ x 13’ rectangle AKZP 11’ octagon...
- Page 2 Thank you for purchasing Treasure Garden’s AKZ Plus Cantilever. Please remove all contents from the package, inspect and review checklist. Some parts may be included in the styrofoam packaging. Do not discard any packaging or box until assembly is complete.
- Page 3 For free standing base applications, it is imperative to install the appropriate base for your size cantilever. The minimum base weight recommended for each size is: · 13’ and 10’ x 13’ AKZ Plus is 400 lbs. · 11’ AKZ Plus is 200 lbs.
- Page 4 STEP OPENING UMBRELLA Position yourself behind umbrella. Squeeze the main frame grip handle and slide handle midway up main frame (Fig. 4). Release grip handle to lock into place. Slowly turn the crank lift handle clockwise to open the umbrella (Fig. 5). Crank the handle an extra half turn to lock the canopy structure into place.

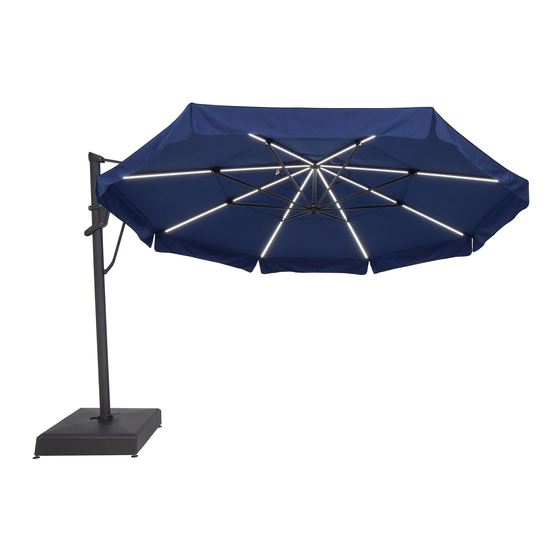

- Page 5 Turn umbrella lights on by pressing button located under plug (Fig. 11). Lights will initially turn on high setting (Fig. 12). For low setting, press button once more. To turn off lights, press button a third time. WARNING: We do not recommend use of lights while raining. See Safety Precautions on page 9.
- Page 6 To Tilt Canopy Horizontally: IMPORTANT: PRIOR TO USING TILT FEATURE. To avoid personal injury or damage to the umbrella, make sure the area behind you is clear and free from any furniture or structure. Make sure canopy is fully OPEN. Position yourself in front of the tilt lever and pull loop lock from main frame track (Fig.
- Page 7 STEP ROTATING UMBRELLA Place your foot on the foot pedal of the rotating hub and step-on the foot pedal to release rotating lock (Fig. 20). Place one hand on the main frame and one hand on the tilt lever (Fig. 21), swivel the umbrella frame in either direction until desired position is reached (Fig.
- Page 8 STEP LIGHT ADAPTER FEATURE To Open Light Adapter: • Loosen the light adapter built into the umbrella runner by turning counter-clockwise (Fig. 23). • After loosening, pull down light adapter post (Fig. 24). To Open and Attach Umbrella Light: (light sold separately) •...
-
Page 9: Care And Maintenance
STEP CLOSING UMBRELLA Position yourself behind umbrella. Squeeze the main frame grip handle and slide handle midway down main frame (Fig. 27). Release grip handle to lock into place. Slowly turn the crank lift handle counter-clockwise until the canopy is fully closed (Fig. 28). Squeeze main frame grip handle to release lock and continue to slide grip handle downward SLOWLY until umbrella is fully closed in an upright position (Fig. -
Page 10: Safety Precautions
CARE AND MAINTENANCE • When not in use, close and cover umbrella with provided protective cover. • Store rechargeable battery pack and power supply in dry place. • Allow a wet canopy to dry while in open position, but do not leave unattended. •... - Page 11 Simply contact your original authorized RUST: Rust is a natural part of the aging Treasure Garden dealer with a description process of steel or iron based materials, of the defect. The dealer will verify the and is therefore NOT considered a defect.
- Page 12 ©2020 Treasure Garden, Inc. - All Rights Reserved. v.11.30.20...
