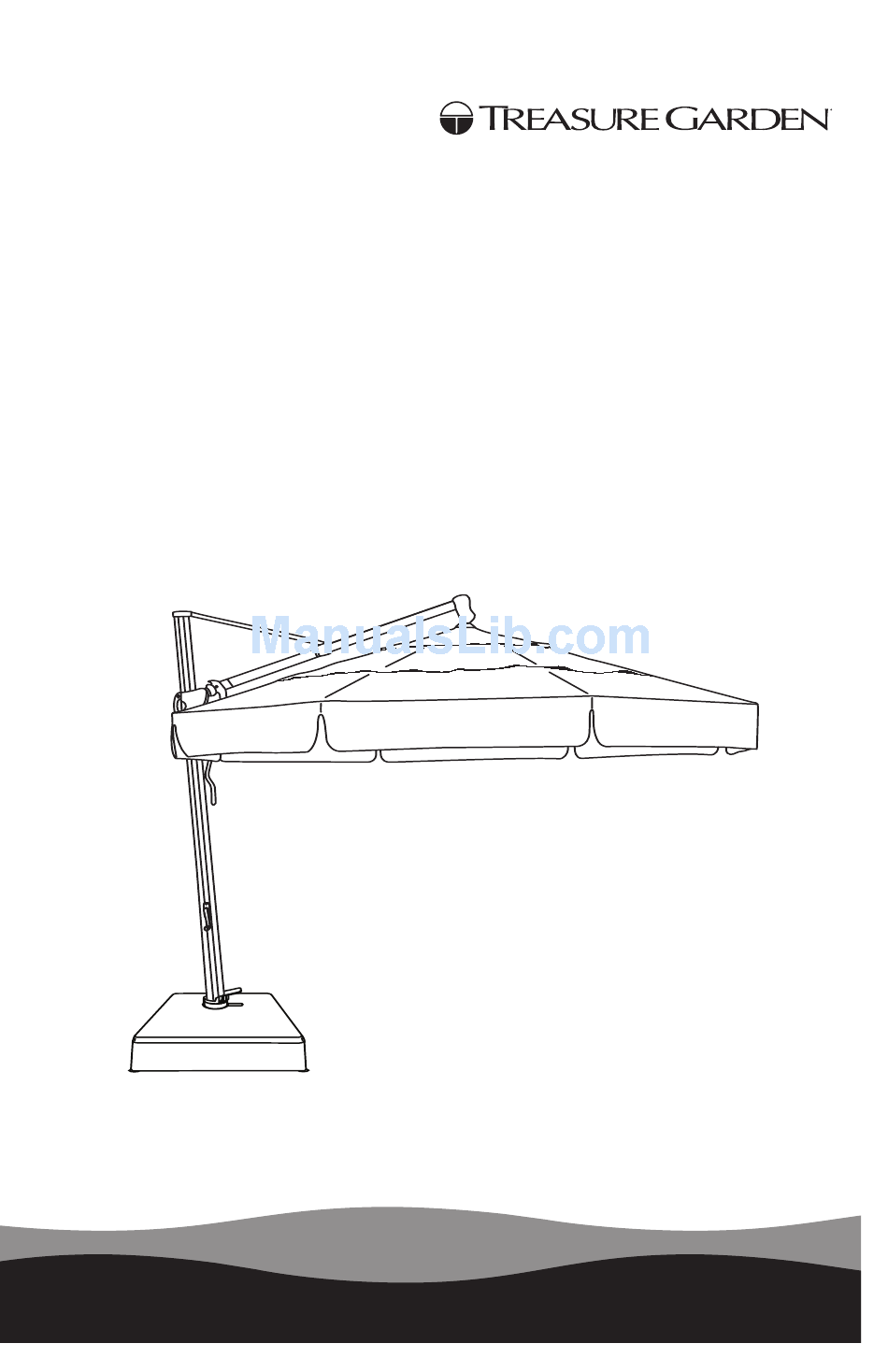

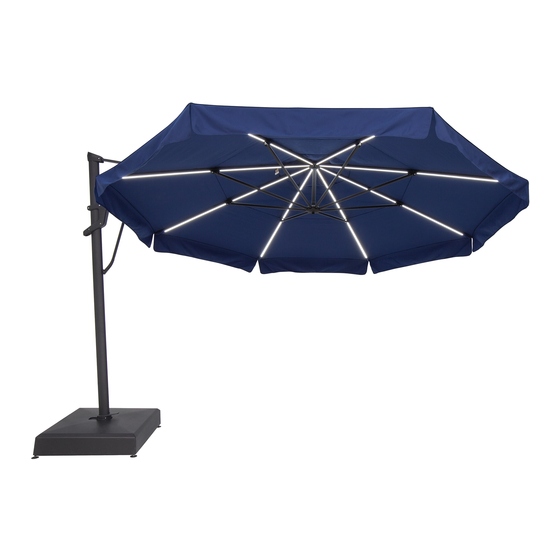

- Page 1 AKZ13 13’ Cantilever Assembly and Operation Guide...
- Page 2 Thank you for your purchase of Treasure Garden’s AKZ13 Cantilever Umbrella. Please remove all contents from the package, inspect and review checklist. CAUTION: To reduce personal injury and damage to your AKZ13, read and follow this assembly and operation guide We recommend a two-person team for assembly and disassembly.
- Page 3 Crank Lift Handle Small Hexagon Wrench IMPORTANT: Prior to assembly it is important to decide on the location of the AKZ13 umbrella. The umbrella measures approximately 10 ft. in height and 13 ft. in width. • Allow ample height to avoid damage to your umbrella during assembly and usage.
- Page 4 (5) bolts & (5) washers (Fig. 3). Remove caps from each add-on weight container and fill with dry playground sand (Fig. 4). The AKZ13 base containers hold up to 400 lbs. of sand. IMPORTANT: When filling the containers, it is necessary to wet down the sand after partial filling.
- Page 5 Use the small hexagon wrench provided to lock in the small screw (Fig. 10). REMOVE ALL PLASTIC PACKAGING MATERIAL FROM ALL PARTS PRIOR TO OPENING UMBRELLA. CHECK UNDER CANOPY FOR PACKAGING AROUND RIBS. Your AKZ13 umbrella is now ready to operate! (Fig. 8) Large Hexagon Wrench (Fig.
- Page 6 S T E P 3 Operation To Open Canopy: Slowly turn the crank lift handle clockwise to open the umbrella to a level position (Fig. 11). CAUTION: Stop turning the crank handle as soon as the umbrella cover is completely open and the sleeve on the umbrella pole has reached its maximum height (Fig.
- Page 7 IMPORTANT: PRIOR TO USING THE TILT FEATURE. To avoid personal injury or damage to the AKZ13 umbrella, make sure the area behind you is clear and free from any furniture or structure. To Tilt Canopy: Make sure canopy is fully OPEN. Position yourself in front of the tilt lever and pull loop lock from main frame track (Fig.
- Page 8 AKZ13 Features To OPERATE the 360° Rotating Hub Swivel: Place your foot on the foot pedal of the rotating hub and step-on the base pedal to release rotating lock (Fig. 20). Place one hand on the main frame and one hand on the tilt lever (Fig.
- Page 9 AKZ13 Features To ATTACH VEGA Umbrella Light: (sold separately) Loosen the VEGA light adapter built into the umbrella runner by turning counter-clockwise (Fig. 23). After loosening, pull down light adapter post (Fig. 24) to attach the VEGA umbrella light (sold separately).
-
Page 10: Care And Maintenance
• Check the condition and function of the umbrella. Any defects must be repaired by a professional. CAUTION: Fully assembled, the AKZ13 umbrella weighs over 500 lbs. Moving the umbrella fully assembled will increase the risk of damage to your umbrella and/or can cause serious injury. -
Page 11: Warranty
This warranty gives you specific legal appears during the warranty period; rights, and you may have other rights Treasure Garden will (at its option) repair which vary from state to state. or replace the product without charge. RUST: Rust is a natural part of the... - Page 12 ©2012 Treasure Garden, Inc. - All Rights Reserved. Rev. 10/12...
