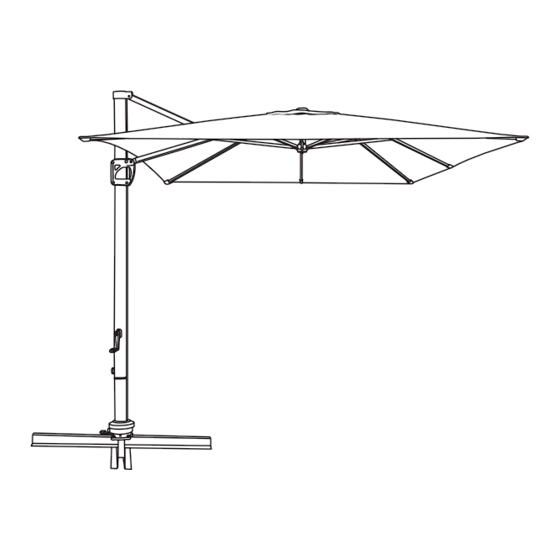

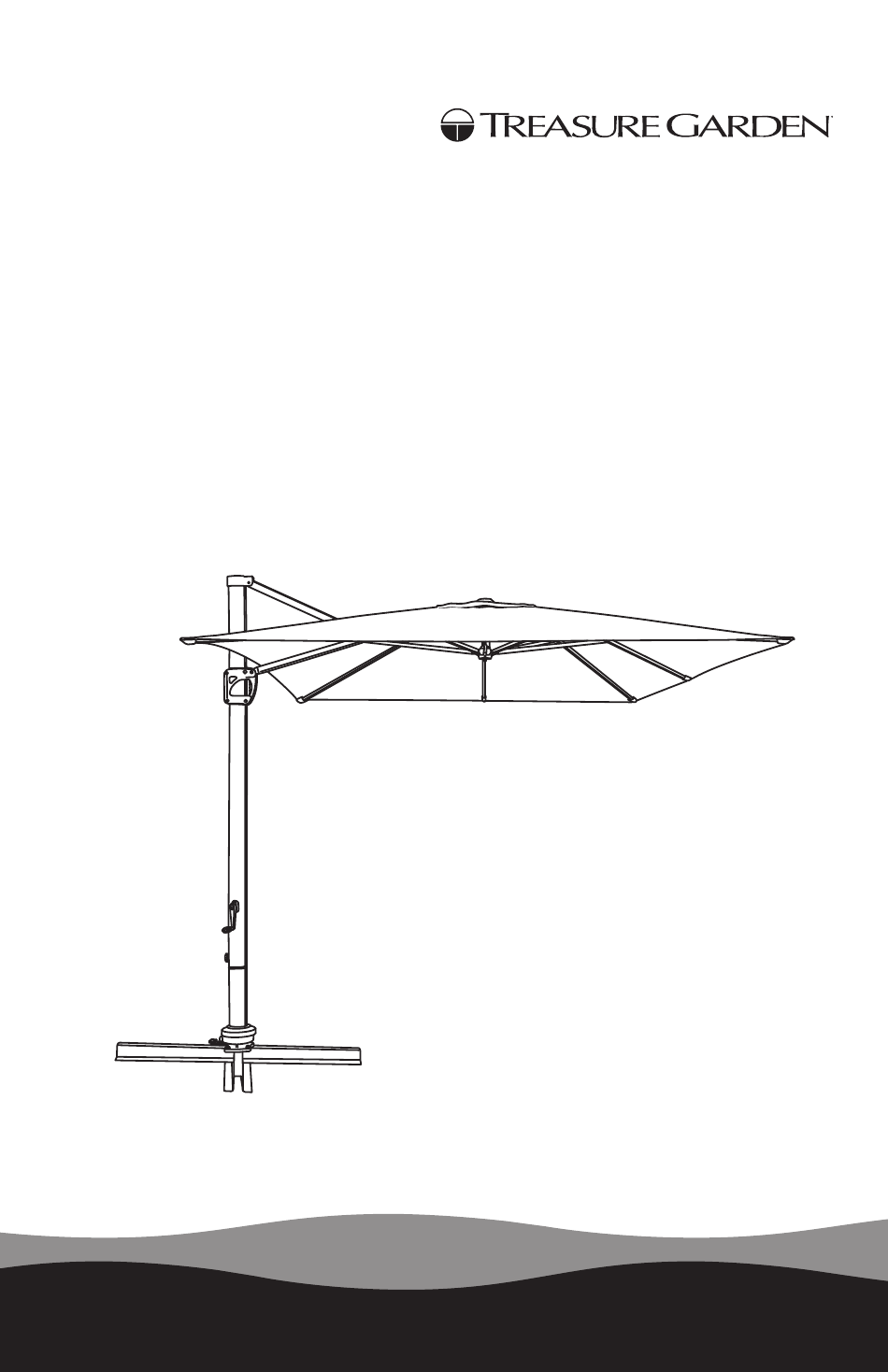

- Page 1 AD45 11’ /10’ /8’ Cantilever Assembly and Operation Guide...
- Page 2 Thank you for your purchase of Treasure Garden’s AD45 Cantilever Umbrella. Please remove all contents from the package, inspect and review checklist. CAUTION: To reduce personal injury and damage to your AD45, read and follow this assembly and operation guide We recommend a two-person team for assembly and disassembly.
- Page 3 AD45 PART LIST Part Description Qty. Cross Bars Main Frame with Canopy Support Stem Main Frame Support Tube Gasket Rotating Hub Cover Rotating Hub Foot Pedal Knob Crank Handle Large Bolts Medium Bolts Small Screw Washers Wrench REQUIRED FOR ASSEMBLY: •...
- Page 4 S T E P 1 Assemble Cross Bar Stand Select area to set AD45 base and place in desired location. Set cross bars in a cross position (Fig. 1). Secure stand with (4) square stones or concrete weights (weights not included).
- Page 5 S T E P 3 Assemble AD45 Support Stem to Rotating Hub Slide support stem over rotating hub (Fig. 6) and line up holes. Tighten with 4 supplied medium bolts and washers. Tighten with supplied wrench (Fig. 7). Slide rotating hub cover over rotating hub (Fig. 8). (Fig.
- Page 6 S T E P 4 Assemble AD45 Main Frame to Base Slide main frame support tube over support stem (Fig. 9). Slide gasket over support stem and snap onto main frame support tube (Fig. 10). Slide main frame over support stem (Fig. 11). NOTE: Make sure back side of main frame is on the same side as hole located on support stem.
- Page 7 S T E P 5 Opening AD45 Attach crank handle to crank mechanism (Fig. 13). From closed position, turn the crank clockwise (Fig. 14) until the umbrella is fully opened (Fig. 15) and the hub is at the top most position (Fig. 16). Tilt umbrella to desired position. See Step 6 for tilt operation. NOTE: When cranking umbrella open, if you feel resistance and the umbrella is not opening, do not force the crank.
- Page 8 S T E P 6 Tilting AD45 To tilt umbrella, squeeze the main frame grip handle (Fig. 17) and slide handle to desired tilt position (Fig. 18). Release main frame grip handle to lock into tilt position. Horizontal Position Hole Tilt Position #1 Hole Tilt Position #2 Hole Tilt Position #3 Hole...
- Page 9 S T E P 7 Rotating AD45 360° Place your foot on the foot pedal of the rotating hub and place hands on the main frame (Fig. 19). Swivel the umbrella frame in either direction until desired position is reached. There are 12 locking positions for the AD45 to rotate 360°...
- Page 10 AD45 Features To ATTACH Umbrella Light: Loosen the light adapter built into the umbrella runner by turning counter-clockwise (Fig. 25). After loosening, pull down light adapter post (Fig. 26) to attach the umbrella light (Fig. 27 and 28) (sold separately). To REMOVE Umbrella Light and CLOSE adapter: Remove umbrella light, and gently push up the light adapter post back into umbrella runner and tighten turning clockwise (Fig.
-
Page 11: Warranty
If a defect in the original material or inspection) is deemed to be “not covered” workmanship appears during the warranty under our warranty, will be shipped/billed period; Treasure Garden will (at its option) at your expense. repair or replace the product without Limited warranty against fabric charge. - Page 12 ©2013 Treasure Garden, Inc. - All Rights Reserved. Rev. 3/13...
