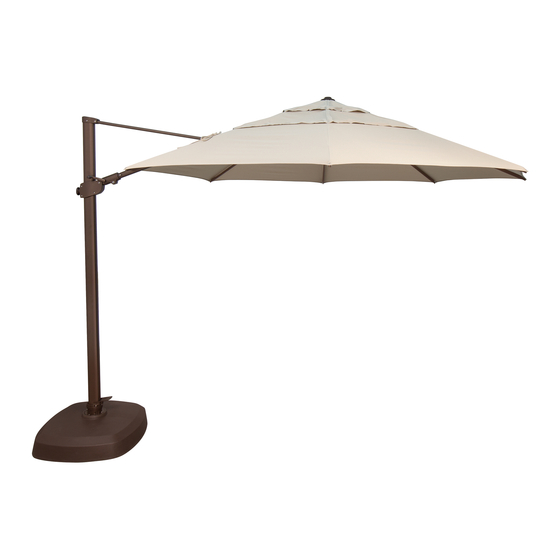

- Page 1 Assembly and Operation Guide AG25T CANTILEVER AG25T 11.5’ octagon AG25TSQ 10’ square...
- Page 2 Thank you for purchasing Treasure Garden’s AG25T Cantilever. Please remove all contents from the package, inspect and review checklist. Some parts may be included in the styrogoam packaging. Do not discard any packaging or box until assembly is complete. CHECKLIST A - (1) 360°...
- Page 3 NOTE: REFER TO SEPARATE BASE OR MOUNT KIT MANUAL FOR BASE ASSEMBLY PRIOR TO PROCEEDING. STEP UMBRELLA ASSEMBLY Two-persons recommended for team lift and to complete assembly. With base cover in place or mount kit installed, lift umbrella up and insert the main frame onto the installed rotating hub (Fig.
- Page 4 STEP OPENING UMBRELLA Position yourself behind umbrella. In the closed position, turn adjustment knob counter clockwise (Fig. 3) and slide the adjustment knob upward (Fig. 4). Turn adjustment knob clockwise to tighten and secure in place. (Fig. 3) (Fig. 4) Insert crank handle into “Open/Close”...
- Page 5 STEP TILTING UMBRELLA To Tilt Canopy Vertically: IMPORTANT: PRIOR TO USING VERTICAL AND HORIZONTAL TILT FEATURE. To avoid personal injury or damage to the umbrella, make sure the area behind you is clear and free from any furniture or structure. Position yourself behind umbrella.
- Page 6 STEP ROTATING UMBRELLA Place your foot on the foot pedal of the rotating hub and step-on the pedal to release rotating lock (Fig. 10). Place hands on the main frame and rotate the umbrella frame in either direction, in 90° increments. To lock position, step off the foot pedal to engage rotating lock.
- Page 7 STEP CLOSING UMBRELLA Position yourself behind umbrella. Insert crank handle into “Open/Close” socket in crank mechanism (Fig. 13). Turn crank handle counter clockwise until the canopy is closed (Fig. 14). Turn adjustment knob counter clockwise and slide downward until umbrella is in closed position.
- Page 8 In the event that warranted factory service not limited to wind, hurricanes, tornadoes, is required, Treasure Garden will assume and storms) are not covered by this the responsibility of the return freight warranty. www.treasuregarden.com ©2020 Treasure Garden, Inc. - All Rights Reserved. v.04.27.20...
