Summary of Contents for Treasure Garden AG5A

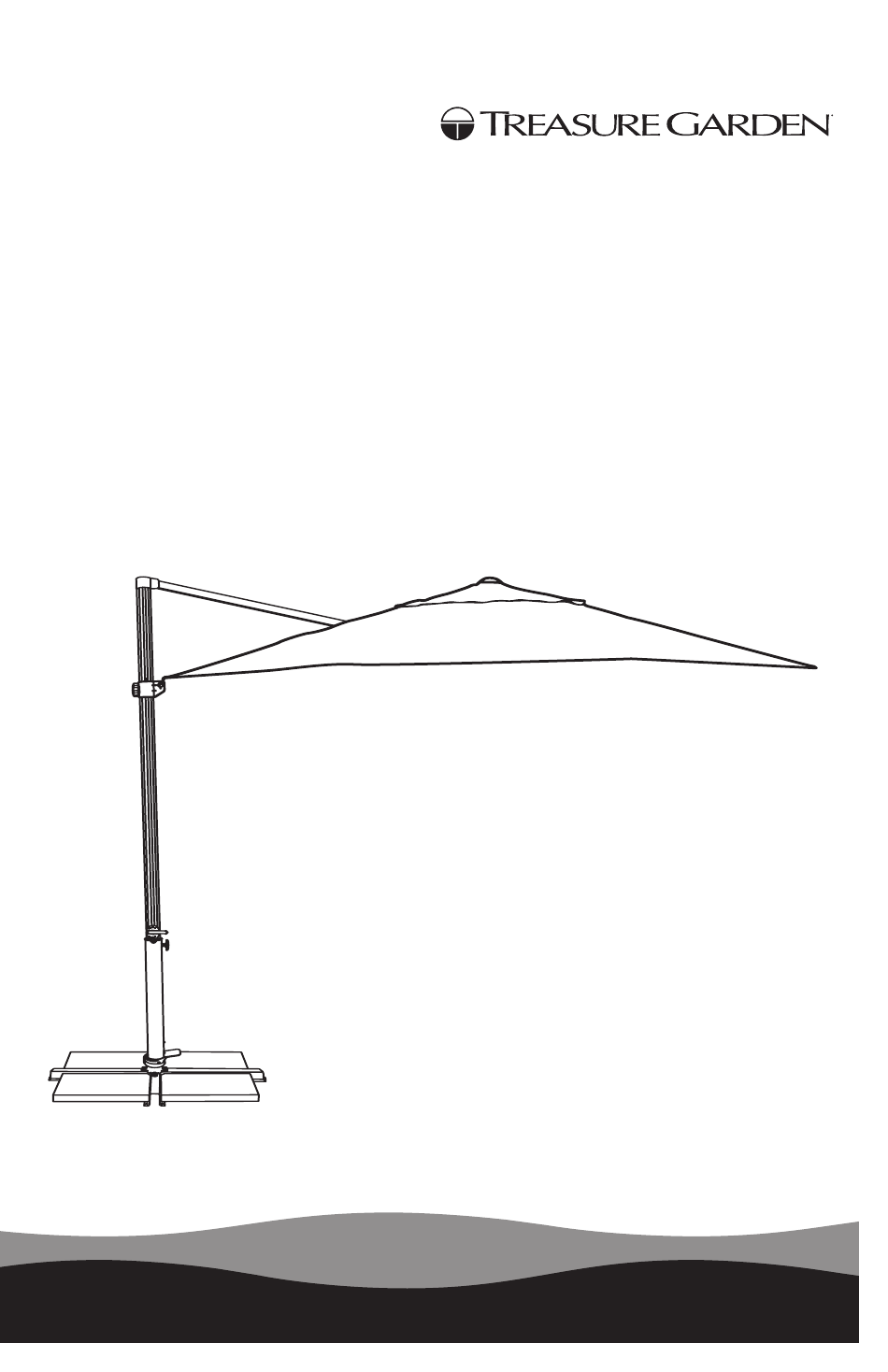

- Page 1 AG5A 8.5’ Cantilever Assembly and Operation Guide...
- Page 2 Thank you for your purchase of Treasure Garden’s AG5A Cantilever Umbrella. Please remove all contents from the package, inspect and review checklist. CAUTION: To reduce personal injury and damage to your AG5A, read and follow this assembly and operation guide We recommend a two-person team for assembly and disassembly.
- Page 3 NOTE: Two persons may be needed for the following action. Lift the AG5A up and insert the main frame into the column until it locks into place (Fig. 4). Secure the canopy at the same direction with the foot pedal on the rotation hub, and then loosen the umbrella tie.
- Page 4 (Fig. 5). Now the umbrella is ready to use. Adjustment Adjustment Knob Knob Crank Lift Handle Slider (Fig. 5) S T E P 4 Closing AG5A Canopy Slide the adjustment knob downward and turn the crank handle counter-clockwise until the canopy is fully closed. CLOSED OPENED...
- Page 5 S T E P 5 Adjusting AG5A Height and Tilt Loosen the adjustment knob counter-clockwise (Fig. 6) to adjust height and tilt. Slide the adjustment knob up or down to adjust the umbrella to your desired height and angle. Tighten the adjustment knob clockwise to lock its position.
- Page 6 AG5A Features To ATTACH VEGA Umbrella Light: Loosen the VEGA light adapter built into the umbrella runner by turning counter-clockwise (Fig. 10). After loosening, pull down light adapter post (Fig. 11) to attach the VEGA umbrella light (sold separately). To OPEN and ATTACH VEGA: Open the VEGA umbrella light by holding firmly with one hand and then depress the clamp release button with the other hand to release the clamp lock.
-
Page 7: Warranty
Returned product that (upon receipt and workmanship appears during the warranty inspection) is deemed to be “not covered” period; Treasure Garden will (at its option) under our warranty, will be shipped/billed repair or replace the product without at your expense. - Page 8 ® www.treasuregarden.com ©2011 Treasure Garden, Inc. - All Rights Reserved. Initial 7/11...
