Front Panel Controls and Features

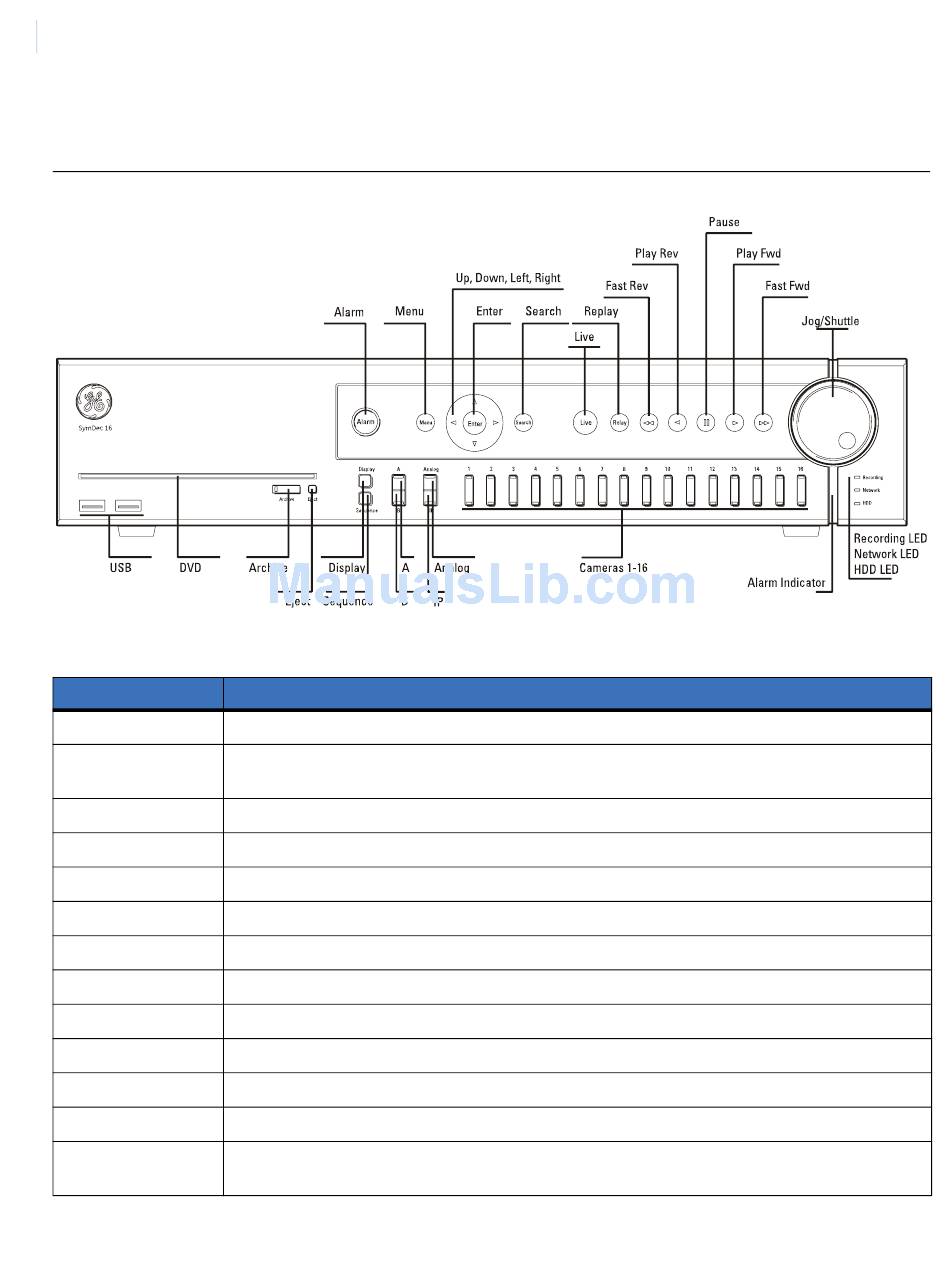

Figure 3. SymDec 16 plus 4 front panel
Table 3. Front panel controls
Control
Alarm button
Menu button
Arrow buttons
Enter button
Search button
Live button
Replay button
Fast reverse button
Play reverse button
Pause button
Play forward button
Fast forward button
Jog/Shuttle
Use
LED glows red to indicate an alarm condition. Push to silence current alarm.
Touch to enter OSD and enter Setup mode. In Setup mode, touch to discard changes and return to the
next highest level menu or exits OSD.
Use to navigate menus.
In Setup mode toggles in and out of editable fields. In Playback mode starts Cameo mode.
Touch to display the Search and Disk Analysis screen.
Touch to stop all video playback and return to showing live video.
Touch to jump the play marker back x seconds. Configured in
Touch to play video in reverse. Touch again to increase speed.
Touch to play video in reverse at 1X speed.
Touch to freeze all video at the current play marker.
Touch to play video at 1X speed.
Touch to play video. Touch again to increase speed.
During playback, rotate the shuttle (the outer dial) to increase playing speed. Use the jog to pause and
view video frame by frame.
Front Panel on page 52.
