SymDec 16 plus 4
User Manual
Firmware Upgrade
Use this menu to upgrade the firmware (from a USB flashdrive) of the SymDec 16 plus 4. To upgrade do the
following:
1. Insert a USB flashdrive, with the flash upgrade file, into one of the USB ports.
2. Navigate to the Upgrade Now command and press the enter button.
3. The SymDec will reboot when completed.
Note:
The flash upgrade file must be in the root directory of the flashdrive. Do not remove power while an upgrade is in-
process.

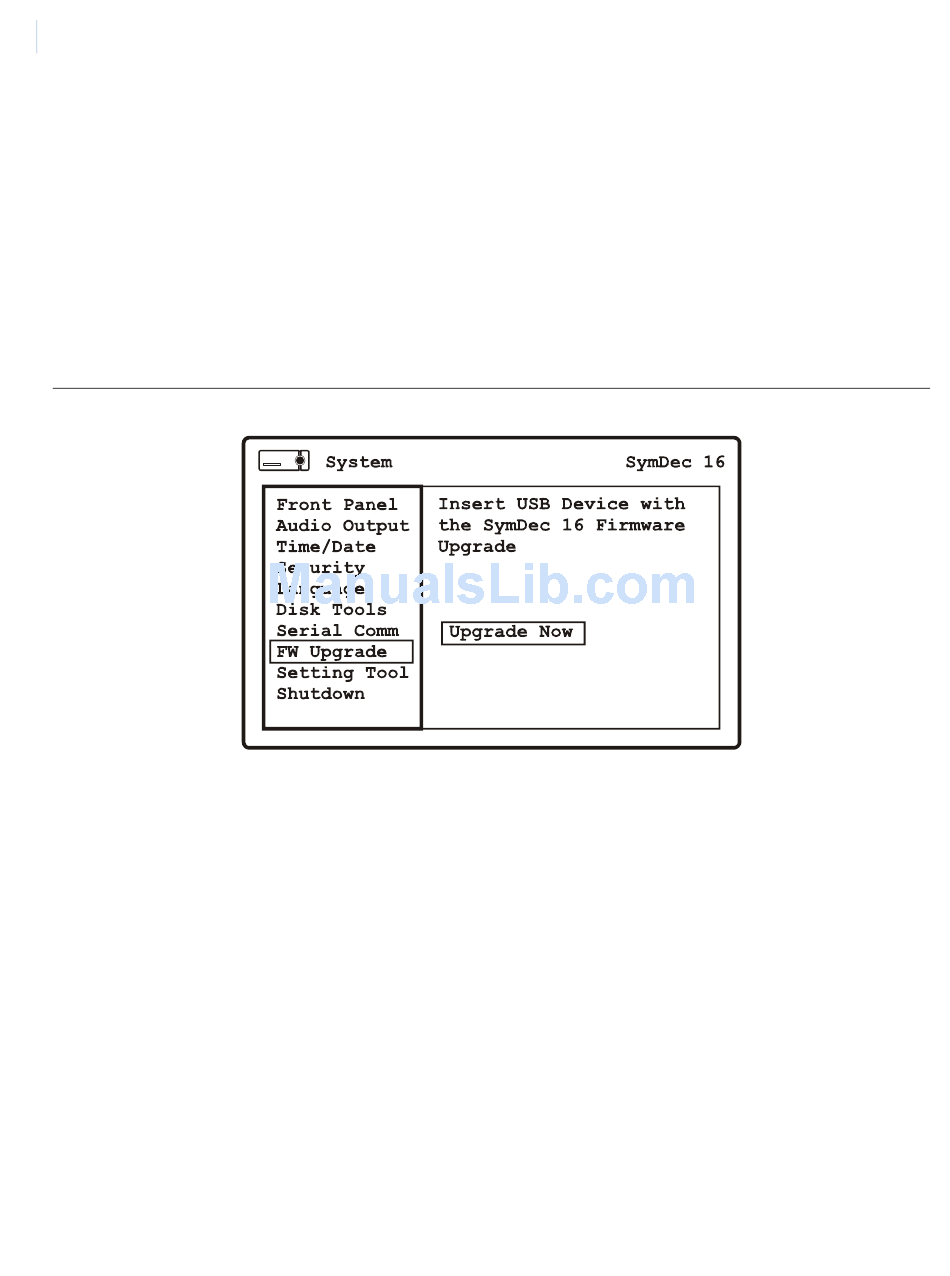

Figure 56. The System/Firmware Upgrade menu
