12 SymDec 16 plus 4

User Manual

Back Panel Connections

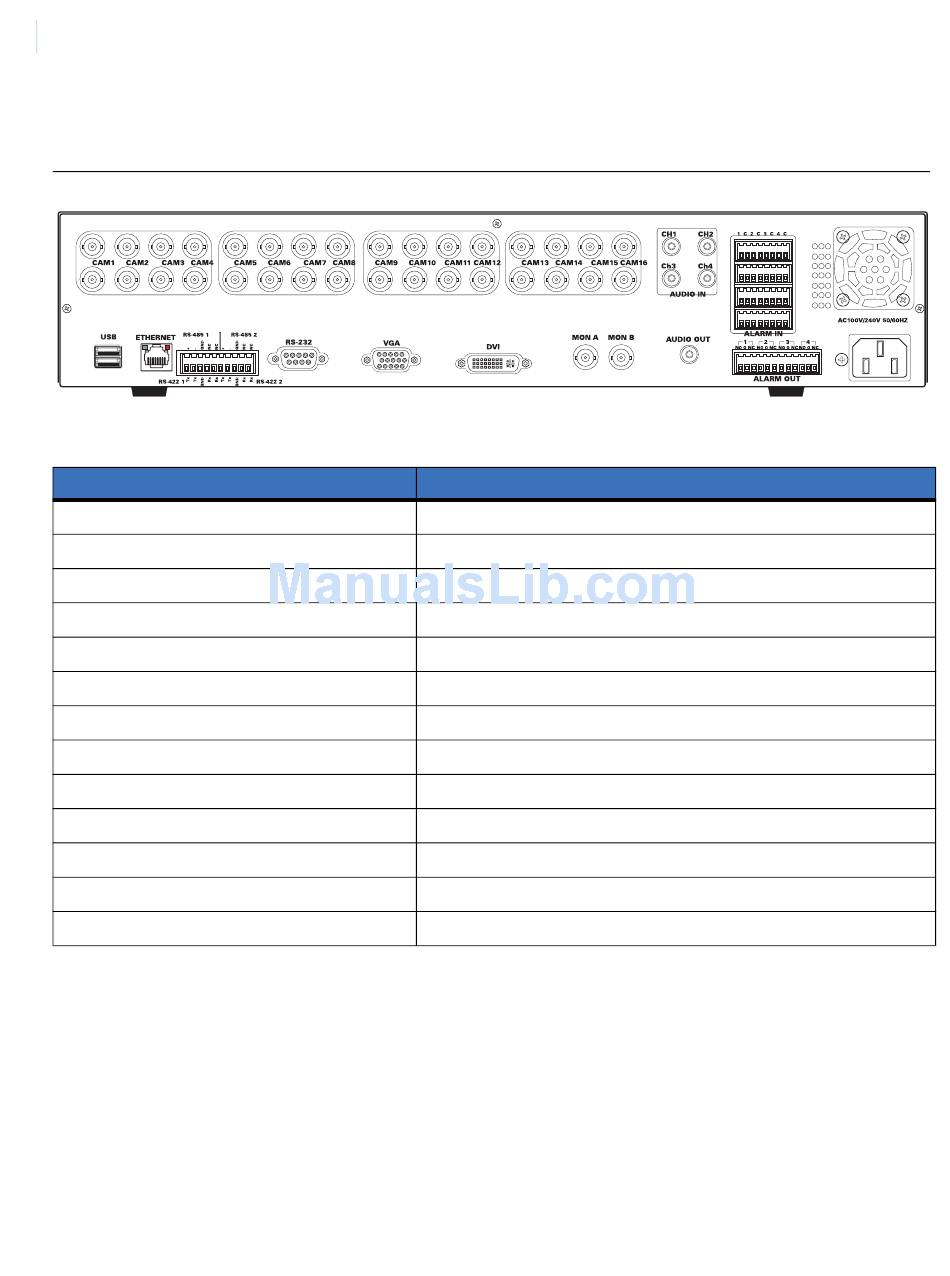

Figure 4. SymDec 16 plus 4 back panel
Table 4. Back panel connectors
Connector
Video In/Out
Audio inputs
Alarm inputs
USB connectors
Ethernet port
Serial inputs (RS-485/RS-422)
RS-232 connector
VGA connector
DVI connector
Monitor A/B
Audio out
Alarm out connector
Power connector

Camera Inputs

There are two BNC jacks for each camera. Either jack can receive a camera signal. The signal is looped
(directly connected to the other jack), making the camera signal available to other equipment.
The camera input connectors are auto terminating.This means that the input signal will automatically be
terminated with 75-Ohms unless a 2
Make sure there is 75-Ohm termination at the end of the video line if the signal is looped through the SymDec
16 plus 4.
Use
Camera Inputs 1-16, BNC connector, looping, and auto-terminating.
4 channels of line-level audio inputs with RCA connectors.
16 channels of alarm inputs.
2 USB connectors for flashdrives or a USB compatible mouse.
For connecting to a Network.
2 RS-422 or 2 RS-485 serial ports.
1 RS-232 serial port.
For connecting to a standard VGA monitor.
For connecting to a Digital Video Interface monitor.
Composite video output for monitors A and B.
Line-level audio output with a RCA connector.
4-channel alarm outputs.
For connecting the power cord.
cable is connected to the 2
nd
BNC connector of the same camera input.
nd
