Widespread Lavatory Fau cet
Installation and Service Instructions
Model Numbers

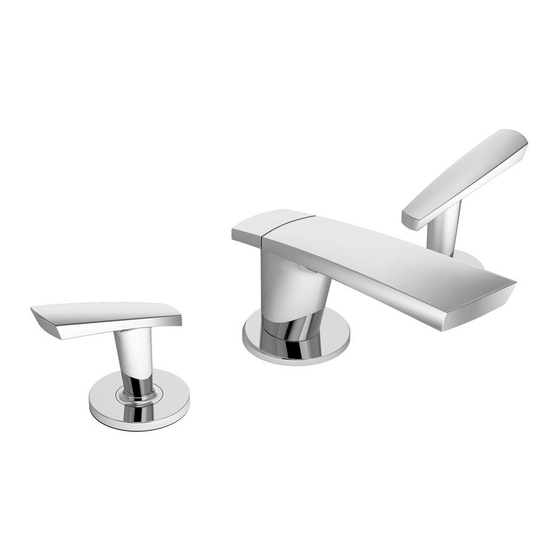

SLW-4112 Lavatory faucet with
chrome fi nish and
includes pop-up drain
Alternate Finish Codes
-STN Satin Nickel
-PNL Polished Nickel finish
- Chrome (standard)
Quick Install Guide
Attach faucet spout
Connect hoses between
valve and spout
Connect supply lines
and check for leaks
Removable Removable
stopper
Fasten drain body to sink
Naru
Tools & Materials
Naru Widespread Lavatory Faucet, SLW-4112
Step 3
Step 1
Step 4
Step 1
Step 9
Step 1
HOT
Non-
stopper
Step 5
™
SLW-4112
3/32"
Plumbers
Putty
1
2
3
4
COLD
Need Help?
Contact Symmons customer service at
(800) 796-6667, (781) 848-2250
Email: customerservice@symmons.com
Monday - Friday 8:00 am - 7:30 pm EST
Please check Symmons website
for technical help, the latest product
information and warranty policy.
www.symmons.com/service
Step 2
Attach faucet handles
Step 1
Attach control valves to sink
Step 8
Flush water supply lines
before attaching
(reference installation details)
Step 7
Connect lift rod, clevis strap,
pivot rod and adjust linkage
Step 6
Install stopper and pivot
rod to drain body
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Symmons Naru SLW-4112
Summary of Contents for Symmons Naru SLW-4112
- Page 1 -STN Satin Nickel Putty information and warranty policy. -PNL Polished Nickel finish www.symmons.com/service - Chrome (standard) Quick Install Guide Naru Widespread Lavatory Faucet, SLW-4112 Step 2 Attach faucet handles Step 3 Step 1 Attach faucet spout Step 1 Attach control valves to sink...
-
Page 2: Installation Instructions
Installation Instructions Installation Instructions Caution: If replacing an older faucet ensure water supply is Step 4 Connect hoses between valve & spout turned OFF before removing. Then open faucet valves to relieve water pressure. Step 1 Attach control valves to sink Deck Front View COLD valve... - Page 3 Step 6 Install stopper and pivot rod to drain Step 9 Connect supply lines, check for leaks easily removable removable removable COLD Care of faucet fi nish ■ Clean fi nish area by using mild soap and water or non- abrasive cleaner and then rinse immediately.
- Page 4 Symmons distributors. ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 ■ (800) 796-6667, (781) 848-2250 Fax (800) 961-9621, (781) 664-1300 ■ Website: www.symmons.com Email: customerservice@symmons.com ■ ■ © 2009 Symmons Industries, Inc. Printed in U.S.A. ZV-589 042409...
