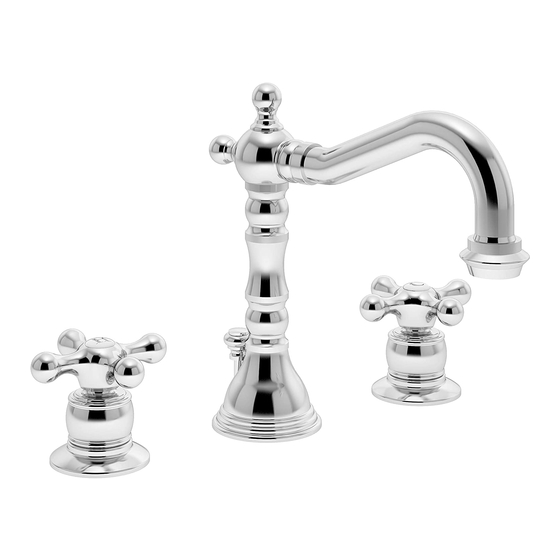

Symmons Carrington SLW-4412 Installation And Service Instructions

Widespread Lavatory Faucet
Installation and Service Instructions
Faucet meets ASME A112.18.1/CSA B125.1, NSF/ANSI 61.9,
NSF/ANSI 372, WaterSense at 1.0 gpm & 1.5 gpm
Caution: Be sure to turn off hot and cold water supplies
before installing or servicing faucet.
Installation Procedure
Push valve bodies through holes in sink from
1.
underneath (both valve bodies shall include a red striped
hose). Make sure flange nuts and mounting washers are
on underside of sink. Put gasket (LN-129) over valve
body. Thread escutcheon (LN-128) onto valve body. The
top of the valve spindle should measure 1-7/8" from
mounting surface (See rough in drawing).
Thread collar (LN-112) on to valve body until it reaches
2.
the escutcheon (LN-128).
CRP handle installation: Ensure valve spindle is rotated
3.
to the OFF position. Place handle on valve spindle and
thread screw (LN-121) into valve.
Tighten flange nuts and mounting washers from
4.
underneath sink and secure with mounting screws if
necessary.
Install spout (LN-254A) and centerbody (LN-188)
5.
through center in sink hole from above sink. Secure
spout to sink with washer (LN-138) and nut (SPF-26).
Washer (LN-138) flat side should face back of the sink.
Thread tee (LN-189) to bottom of centerbody (LN-188).
Thread flex hose adapters into tee (LN-189) using pipe
6.
sealant on the threads. Attach flex hoses to flex hose
adapters.
Connect hot supply to left tube and cold supply to right
7.
tube using appropriate connectors.
Pop-up drain installation:
8.
a ) Remove pop-up plug, tail piece and flange from
the drain body. Make sure that locknut is threaded
all the way down onto the body with flat friction
washer in middle and beveled washer on top.
b ) Apply plumbers putty or sealant to bottom of
flange.
c ) Install drain body through drain opening in
lavatory and screw flange onto the drain body
making sure that the threads are completely
engaged for proper sealing and strength of the
connection. Apply joint compound to all threaded
parts to insure proper seal. Apply putty or teflon
tape to tail piece before attaching to drain body.
d ) Tighten locknut to compress the beveled flange
Carrington
SLW-4412
Certi ed by
NSF International
e ) Insert pop-up plug and pivot rod into body and
f ) Slide the pivot rod through one side of the spring
g ) Insert lift rod through faucet housing and the top of
It is very important to thoroughly flush the supply lines
8.
to prevent foreign matter, i.e. copper chips, sand, stones,
etc. from damaging the sealing surfaces of cartridge.
Remove aerator and open hot and cold to full open then
open both supplies. Let water run through hot and cold
long enough to flush supply lines thoroughly. Shut off
faucet and replace aerator. Check for leaks.
Replacing cartridge (KN-113 or KN-114):
Remove plug button (LN-243H or LN-243C), loosen
1.
Phillips head screw (LN-121) and remove handle (LN-
177).
Remove collar (LN-112) by turning counter clockwise.
2.
Caution: Do not use wrench as this may damage the
surface finish.
Place wrench on cartridge hex nut (KN-113, KN-114).
3.
Turn wrench counterclockwise until cartridge is
removed.
Install new cartridge. Turn cartridge with wrench until
4.
cartridge does not turn easily then turn 1/4 to 1/2 turn
further. Reassemble handle in reverse fashion.
®
evenly across the bottom of the drain opening taking
care not to over tighten the locknut, causing damage
to the lavatory. Apply teflon tape (clockwise) on tail
piece and thread into outlet of body.
tighten retaining nut until the ball is seated on the
ball washer.
Note: The pop-up plug can be installed either in the
removable or non-removable position, depending
on the location of the hole located in the guide at
the bottom of the plug.
clip, then the appropriate adjustment hole and then
other side of the spring clip.
the lift strap and secure it in place by tightening the
screw.
Note: To insure proper operation of lift rod and
pop-up, some adjustment of the linkage may be
required.
There are two possible adjustment points:
1) lift strap to lift rod
2) lift strap to pivot rod
