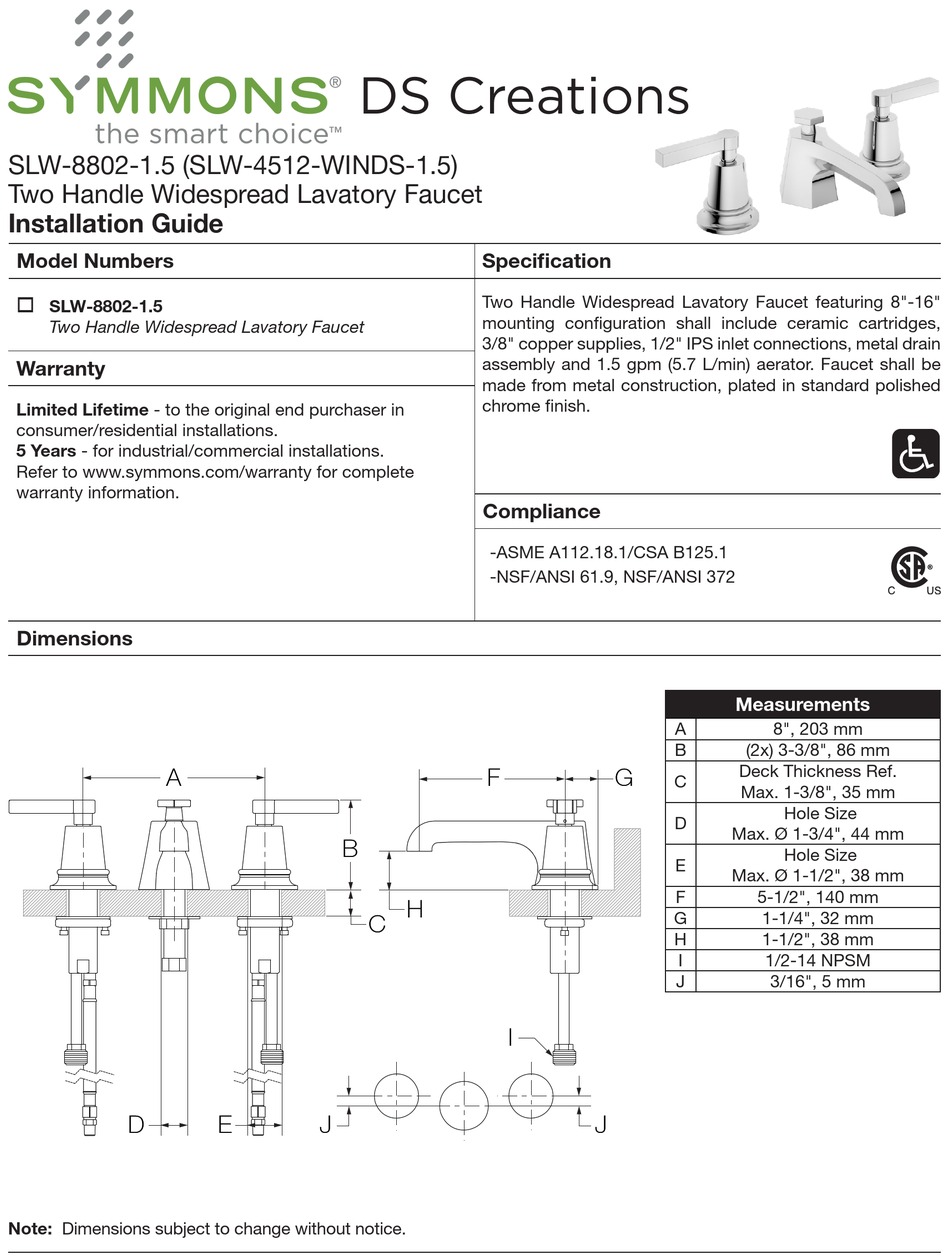

Symmons SLW-8802-1.5 Installation Manual

SLW-8802-1.5 (SLW-4512-WINDS-1.5)
Two Handle Widespread Lavatory Faucet
Installation Guide
Model Numbers

SLW-8802-1.5
Two Handle Widespread Lavatory Faucet
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Dimensions
A A
D D
Note: Dimensions subject to change without notice.
DS Creations
B B
C C
E E J J
Specification
Two Handle Widespread Lavatory Faucet featuring 8"-16"
mounting configuration shall include ceramic cartridges,
3/8" copper supplies, 1/2" IPS inlet connections, metal drain
assembly and 1.5 gpm (5.7 L/min) aerator. Faucet shall be
made from metal construction, plated in standard polished
chrome finish.
Compliance
-ASME A112.18.1/CSA B125.1
-NSF/ANSI 61.9, NSF/ANSI 372
F F
H H
I I
Measurements
A 8", 203 mm
B (2x) 3-3/8", 86 mm
Deck Thickness Ref.
G G
C
Max. 1-3/8", 35 mm
D
Max. Ø 1-3/4", 44 mm
E
Max. Ø 1-1/2", 38 mm
F 5-1/2", 140 mm
G 1-1/4", 32 mm
H 1-1/2", 38 mm
I 1/2-14 NPSM
J 3/16", 5 mm
J J
Hole Size
Hole Size
