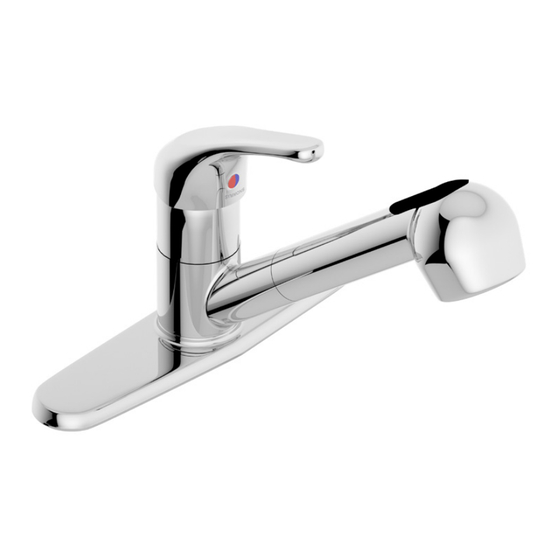

SK6600
Single Handle Kitchen Faucet
Operation & Maintenance Manual
Model Numbers
SK6600
Unity Single Handle Kitchen Faucet
Modifications
STN
Satin Nickel finish
STS
Stainless Steel finish
W
6" lever handle (chrome finish only)
Note: Append appropriate -suffix to model number.
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
Dimensions
C
A
B
Note: Dimensions subject to change without notice.
Unity
D
E
F
®
Feature Highlights
•
8" mount
•
Quarter turn ceramic cartridge
•
Stainless steel braided hoses with 3/8" compression
connections
•
Pull-out spray spout
•
90 degree swivel spout
•
1.5 gpm (5.7 L/min) standard aerator
•
Components shall be metal construction, plated in
standard polished chrome finish
Compliance
-NSF/ANSI 372, NSF/ANSI 61.9
-ASME A112.18.1/CSA B125.1
WARNING: This product can expose you to chemicals including
lead, which is known to the state of California to cause cancer,
birth defects, or other reproductive harm. For more information,
go to www.P65Warnings.ca.gov.
G
H
Measurements
A
8 5/16" 211mm
Max Deck Thickness
B
2", 51 mm
C
3 9/16" 90mm
D
5 11/16" 144mm
E
7 5/8" 194mm
Hole Size
F
Min. Ø 1-3/8", 35 mm
Max. Ø 1-1/2", 38 mm
G
5/16" 8mm
H
9 15/16" 252mm
c
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Symmons Unity SK6600
Summary of Contents for Symmons Unity SK6600

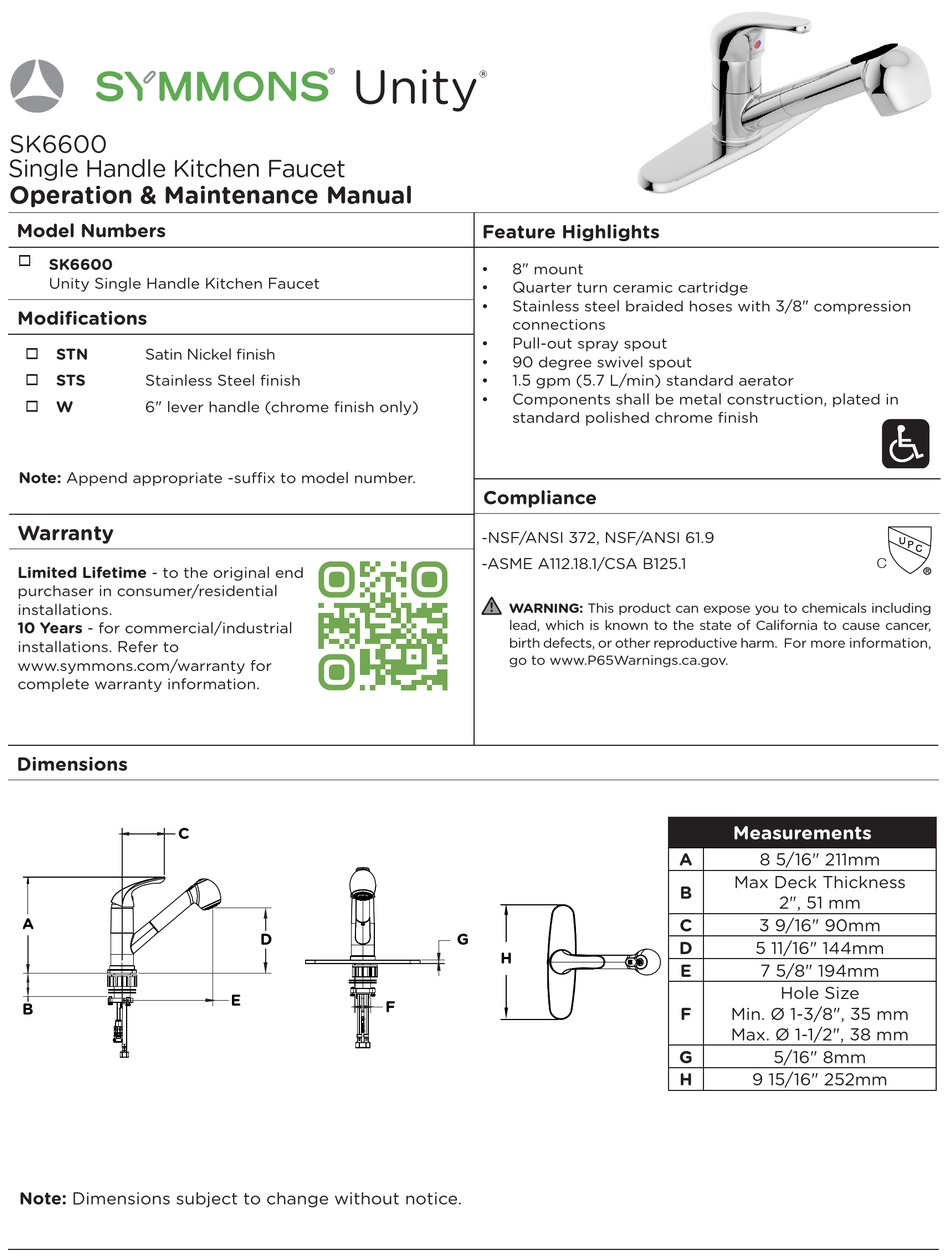

- Page 1 California to cause cancer, 10 Years - for commercial/industrial birth defects, or other reproductive harm. For more information, installations. Refer to go to www.P65Warnings.ca.gov. www.symmons.com/warranty for complete warranty information. Dimensions Measurements 8 5/16" 211mm Max Deck Thickness 2", 51 mm...
- Page 2 Parts Breakdown Replacement Parts Item Description Part Number Solid Handle Kit RK076* Cartridge RL314 Spray Wand RK078-1.5* Aerator RK079-1.5 Deck Plate Assembly RK080* Mounting Hardware RK081 HOT SUPPLY COLD SUPPLY 6" lever Handle Kit RK-025* *Note: Append -STN to part number for Satin Nickel finish;...
-
Page 3: Installation
Installation 3) Attach outlet end of pull-down 1) Insert supply line hoses (P), wand 6) Remove wand from hose. hose (O) to hose adapter (Q). hose (O) and shank of faucet body Press tab on hose adapter (Q) to (J) through deck plate (R), mount- disconnect as shown above. -
Page 4: Maintenance
■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2023 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3120 REV L 010523... - Page 5 Unity ® SK6600 Sola manija grifo de la cocina Manual de Operación y Mantenimiento Números de modelo Especificación SK6600 Sola manija grifo de la cocina la configuración de montaje Sola manija grifo de la cocina Unity de un solo agujero con una placa de cubierta 8". Incluye Modifications cartucho de cerámica, 21-1/2"...
-
Page 6: Herramientas Requeridas
Desglose de piezas Repuestos Artículo Descripción Número de pieza Juego de manijas RK076* Cartucho RL314 Caño aerosol RK078-1.5* extraible Aireador RK079-1.5 Placa de cubierta RK080* del grifo SUMINISTRO EN Hardware de RK081 CALIENTE montaje SUMINISTRO EN FRÍO 6" Manija de RK-025* palanca *Nota: Anexar -STN al número de pieza para el... -
Page 7: Instalación
Instalación 3) Acople el extremo de salida del 1) Insertar línea las mangueras de 6) Retire la manguera varita. pull-down adaptador de mangu- suministro (P), manguera de tubo era (O) a manguera (Q). Presione (O) y caña del cuerpo del grifo (J) la pestaña en el adaptador de a través placa de cubierta del grifo manguera (Q) para desconectar... -
Page 8: Mantenimiento
■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2023 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3120 REV L 010523... -
Page 9: Principales Caractéristiques
Garantie limitée - à l’acheteur original -NSF/ANSI 372, NSF/ANSI 61.9 dans les installations du consommateur/résidentiel. -ASME A112.18.1/CSA B125.1 10 Ans - pour les installations commerciales/industriel. Se reporter au www.symmons.com/warranty pour l’information complète concernant la garantie. Dimensions Mesures 8 5/16 po 211mm Épaisseur maximale du... - Page 10 Pièces de remplacement Pièces de remplacement Article Description Numéro de pièce Ensemble de poi- RK076* gnée Cartouche RL314 Tirez sur pulvérisa- RK078-1.5* tion Aérateur RK079-1.5 Plaque de pont de RK080* robinet Matériel de xation RK081 APPROVISIONNEMENT À CHAUD APPROVISIONNEMENT EN FROID 6 po Poignée à...
- Page 11 Installation 3) Attachez l’extrémité de la sortie de traction vers le bas tuyau (O) 1) Insérer les tuyaux d’alimentation 6) Enlever le bec du tuyau du robinet. à l’adaptateur de tuyau (Q). Ap- en ligne (P), tuyau de rallonge puyez sur la languette de l’adap- (O) et la tige du corps de robinet tateur de tuyau (Q) pour dé- (J) par plaque de pont de robinet...
- Page 12 ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2023 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3120 REV L 010523...
