Symmons Dia S-3504-H321-V-CYL-B-TRM Operation & Maintenance Manual

Symmons Dia S-3504-H321-V-CYL-B-TRM Operation & Maintenance Manual

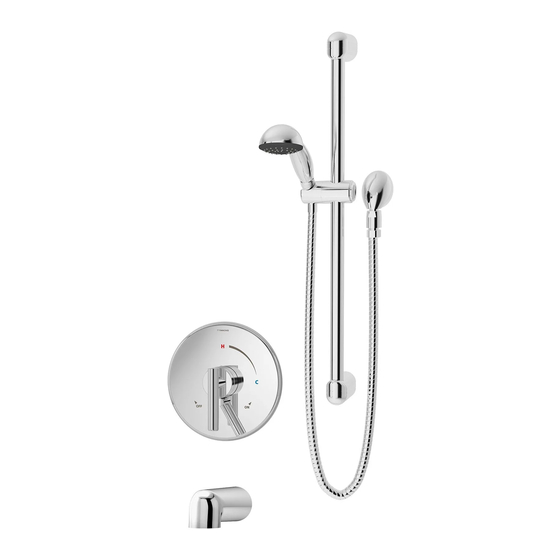

Tub/hand shower trim

Advertisement

Quick Links

S-3504-H321-V-CYL-B-TRM
Dia
Tub/Hand Shower Trim
®
Operation & Maintenance Manual
Model Numbers
S-3504-H321-V-CYL-B-TRM Tub/Hand Shower Trim
Modifications
-1.5
CG
1.5 gpm (5.7 L/min) flow restrictor
-2.0
CG
2.0 gpm (7.6 L/min) flow restrictor
Delete
Chrome plastic escutcheon on valve with
Suffix B
color graphics/indicators in place of
standard brass escutcheon
-STN
Satin nickel finish
Note: Append appropriate -suffix to model number.
Specifications
Tub/hand shower trim with lever handle and secondary
integral diverter handle includes wall connection, 30"
slide bar, non-diverter tub spout, flexible metal hose and
1 mode hand shower with dual checks, and 2.5 gpm
(9.5 L/min) flow restrictor. Components made from metal
and plastic materials plated in standard polished chrome
finish.
Compliance
-ASME A112.18.1/CSA B125.1
WARNING:
This product can expose you to
chemicals including lead, which is known to the
state of California to cause cancer, birth defects, or
other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dia S-3504-H321-V-CYL-B-TRM and is the answer not in the manual?

Questions and answers

Summary of Contents for Symmons Dia S-3504-H321-V-CYL-B-TRM

  • Page 1 For more information, go to www.P65Warnings.ca.gov. -STN Satin nickel finish Warranty Limited Lifetime - to the original end purchaser in consumer installations. 5 Years - for commercial installations. Refer to www.symmons.com/warranty for complete warranty information. Note: Append appropriate -suffix to model number.
  • Page 2 Dimensions Dimensions Measurements 2 1/8", 54 mm 1/2" NPT thread must be recessed 1/4" from finished wall 6", 152 mm right or left Ø 7 1/2", 191 mm (brass) Ø 7 3/4", 197 mm (plastic) 3 1/2", 89 mm 3", 76 mm 12", 305 mm 3 1/8", 79 mm 32", 813 mm...
  • Page 3 Parts Breakdown Replacement Parts Item Description Part Number Hose RTS-045 Handle Assembly T-242A Dome Cover T-19 Escutcheon RTS-011 (Brass) Mounting Screws RTS-012 (Plastic) Mounting Plate Hand Shower EF-100 Wand Slide Bar Bracket Caps SC-115 Mounting Screws Secondary Diverter RTS-013 (Brass) Handle RTS-014 (Plastic) Tub Spout...
  • Page 4: Installation

    Installation 4) Install dome cover (D) to valve by Note: 7a) Dry Wall Option: Remove turning clockwise. For valve body installation, please upper and lower caps (J) from see valve body installation guide. 30" slide bar brackets. Place 30" slide bar (I) into desired 1) Install plastic mounting plate (G) position.
  • Page 5 Installation 7b) Stud Option: Remove upper 8) With 30" slide bar (I) in position, 9) Install wall elbow (B) to stub out and lower caps (J) from 30" secure to wall using screws (K). pipe. Tighten Allen screw (3 mm) slide bar brackets.
  • Page 6: Troubleshooting Chart

    ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2018 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3027 REV B 081318...
