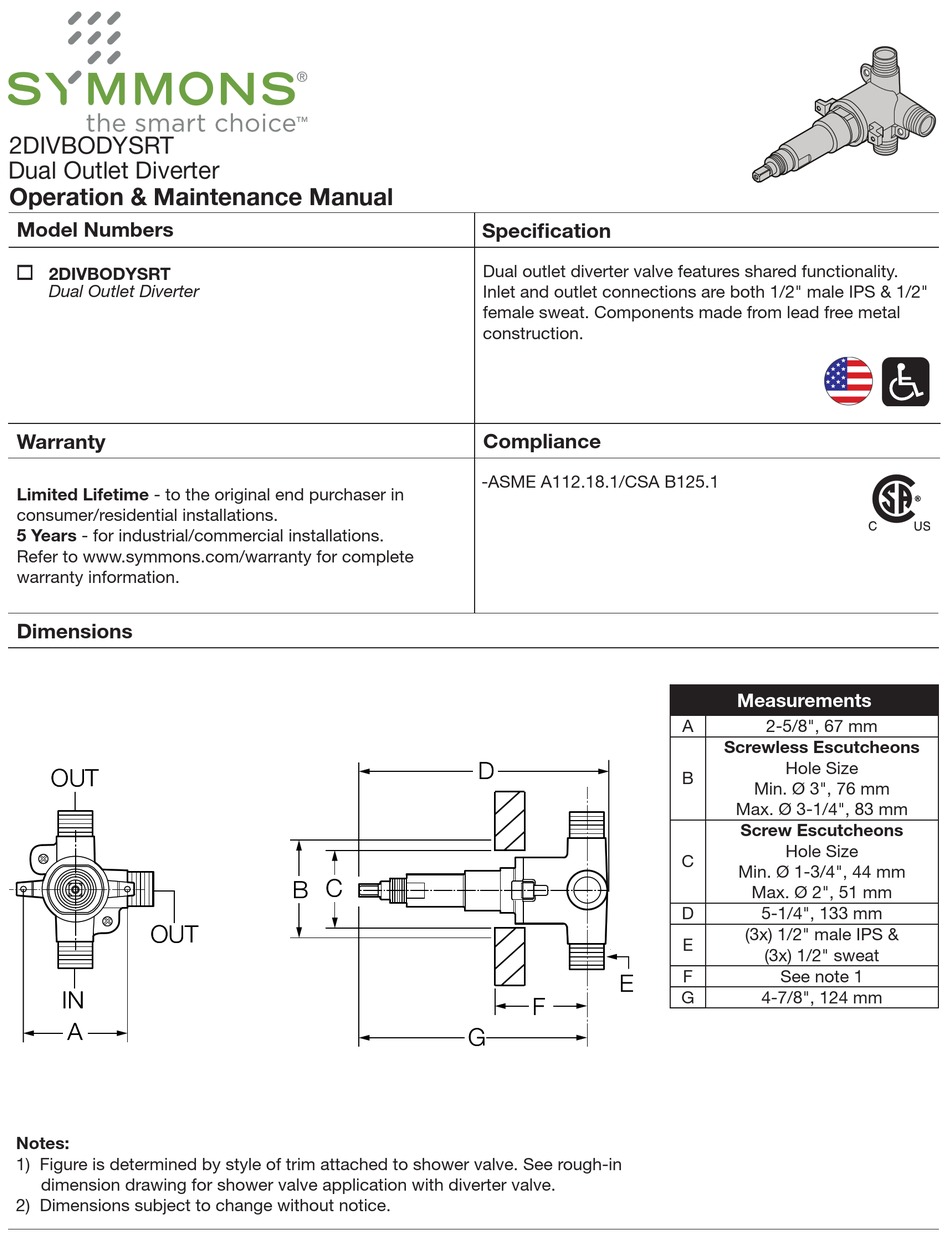

Symmons 2DIVBODYSRT Operation & Maintenance Manual

2DIVBODYSRT

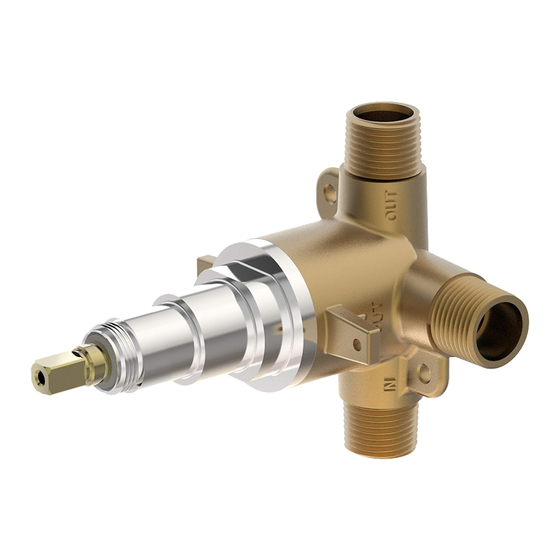

Dual Outlet Diverter
Operation & Maintenance Manual

Model Numbers


2DIVBODYSRT
Dual Outlet Diverter

Warranty

Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.

Dimensions

OUT OUT
OUT OUT
IN IN
A A
Notes:
1) Figure is determined by style of trim attached to shower valve. See rough-in
dimension drawing for shower valve application with diverter valve.
2) Dimensions subject to change without notice.
C C
B B
G G

Specification

Dual outlet diverter valve features shared functionality.
Inlet and outlet connections are both 1/2" male IPS & 1/2"
female sweat. Components made from lead free metal
construction.

Compliance

-ASME A112.18.1/CSA B125.1
D D
E E
F F
Measurements
A 2-5/8", 67 mm
Screwless Escutcheons
Hole Size
B
Min. Ø 3", 76 mm
Max. Ø 3-1/4", 83 mm
Screw Escutcheons
Hole Size
C
Min. Ø 1-3/4", 44 mm
Max. Ø 2", 51 mm
D 5-1/4", 133 mm
(3x) 1/2" male IPS &
E
(3x) 1/2" sweat
F See note 1
G 4-7/8", 124 mm
