Symmons SLW3612PP Install Manual

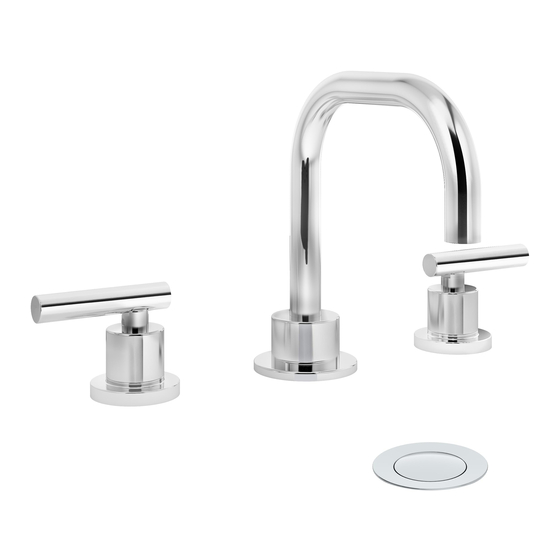

Two-Handle Widespread Lavatory Faucet
Install Guide
Warranty
Limited Lifetime - for residential
installations.
10 Years - for commercial/industrial
installations.
Refer to www.symmons.com/warran-
ty for complete warranty information.
Installation
1-3/8"
1-3/4"
Note: Use engraved
line to set height.
Refer to spec sheet for
appropriate height.

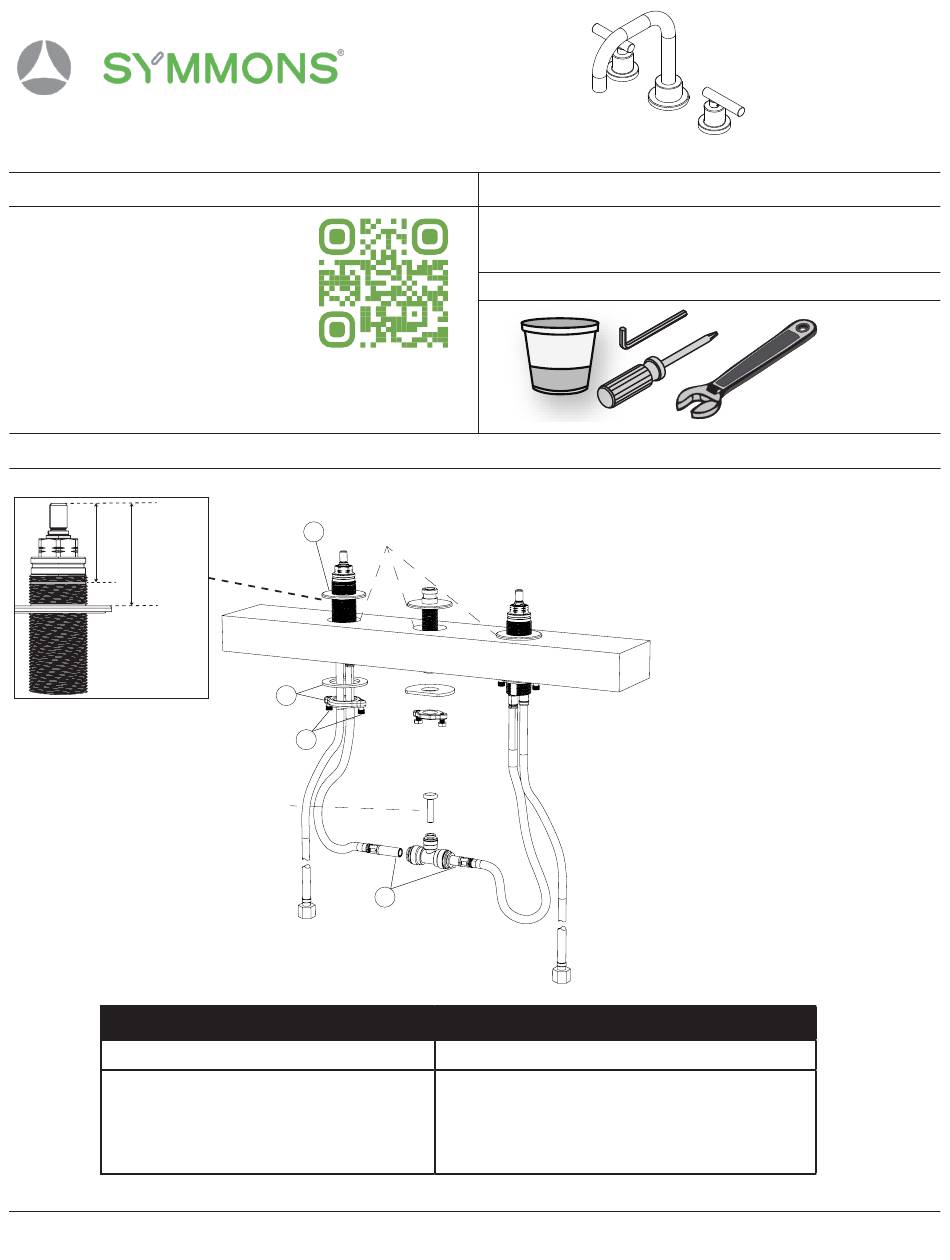

Figure 1
Plug can be used to
pressure-test rough-in
Washer Height - 1-3/8"
Symmons Industries, Inc.
Copyright © 2024 Symmons Industries, Inc.
For uneven or porous
surfaces use Plumber's
A
Putty or silicone
B
C
D
SLW3612PP
SLW4712PP
SLW5512PP
■ ■
31 Brooks Drive
■
Product Care
Clean finished trim area with a soft cloth using mild
soap and water or a non-abrasive cleaner, and then
quickly rinse with water.
Tools Required
Plumbers
Putty
Table 1 Table 1
Washer Height - 1-3/4"
S244
SLW3512PP
SLW4912PP
SLW5612PP
■
Braintree, MA 02184 Phone: (800) 796-6667
■
symmons.com gethelp@symmons.com
Note:
This install guide
is applicable for all
two-handle wide-
spread lavatory
Reference only
faucets.
Step 1:
Thread the washer (A) to the appro-
priate engraved line on each valve as
shown in Figure 1.
Refer to Table 1 for the appropriate
washer height for each specific model
number.
Step 2:
Pass the braided hoses and bottom of
the valve through the appropriate hole
(hot on left and cold on right - see red
and blue markings on hoses for refer-
ence).
Step 3:
Place washer and jack screw plate (B)
over hoses and thread onto the bottom
of the valve. Do not tighten all the way.
Step 4:
Use the faucet handle to set the orienta-
tion of the valve stem.
Step 5:
Tighten jack screws (C).
Step 6:
Insert tubes (D) into tee.
SLW5812PP
SLW5912PP
SLW6712PP
SLW8312RP
■
Fax: (800) 961-9621
■ ■
ZV-3580 REV B 080124
