SK3510PD

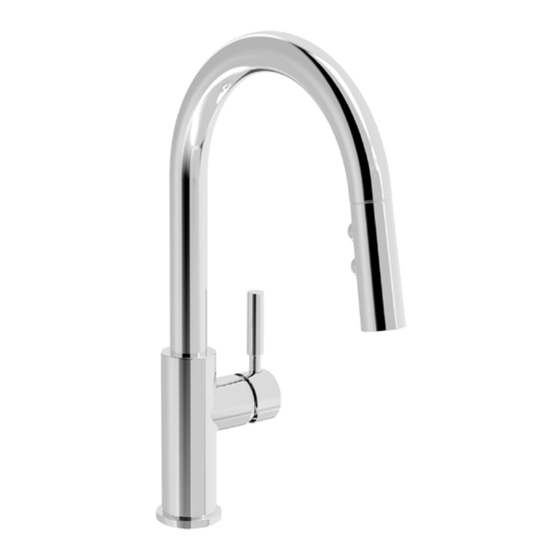

Single Handle Pull-Down Kitchen Faucet
Operation & Maintenance Manual
Model Numbers
SK3510PD
Single Handle Pull-Down Kitchen
Faucet, Polished Chrome
Compliance
- ASME A112.18.1/CSA B125.1
- NSF/ANSI/CAN 61: Q<1, NSF/ANSI 372
WARNING: This product can expose you to chemicals
including lead, which is known to the state of California to
cause cancer, birth defects, or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
Dimensions
Hole Size
Min. Ø 1-3/8" (35mm)
Max. Ø 1-1/2" (38mm)
Symmons Industries, Inc.
Copyright © 2023 Symmons Industries, Inc.
Dia®
For Optional Deck Plate
(2x) Hole Size
Min. Ø 1" (25mm)
Max. Ø 1-1/4" (32mm)
31 Brooks Drive
Braintree, MA 02184
symmons.com
Feature Highlights
Pull-down spray wand with 2 mode spray selector,
3/8 inch supply hose compression connections
1.5 gpm (5.7 L/min) standard flow rate
Metal construction plated in standard polished chrome
finish
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
Deck Thickness Reference
Max. 2-1/2" (64mm)
Note: Dimensions subject to change without notice.
Phone: (800) 796-6667
gethelp@symmons.com
Fax: (800) 961-9621
ZV-3749 REV 0
060623
