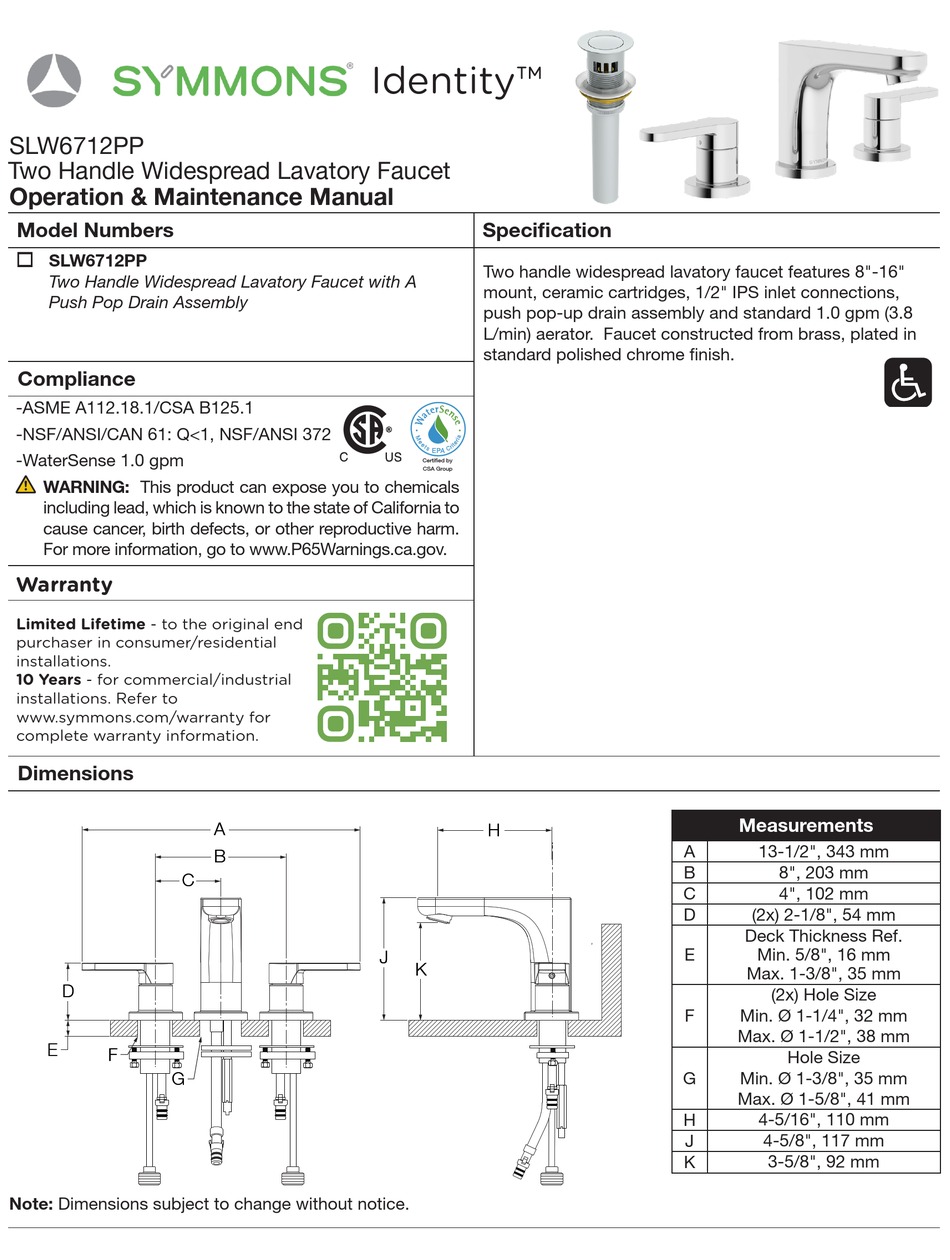

Symmons Identity SLW6712PP Operation & Maintenance Manual

SLW6712PP
Two Handle Widespread Lavatory Faucet
Operation & Maintenance Manual
Model Numbers

SLW6712PP

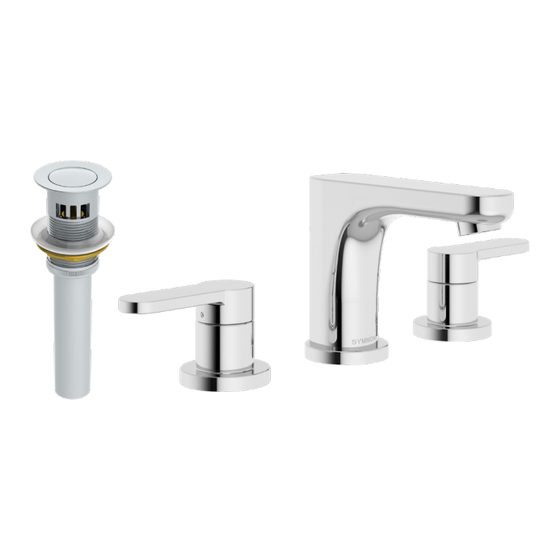

Two Handle Widespread Lavatory Faucet with A
Push Pop Drain Assembly
Compliance
-ASME A112.18.1/CSA B125.1
-NSF/ANSI/CAN 61: Q<1, NSF/ANSI 372
-WaterSense 1.0 gpm
WARNING: This product can expose you to chemicals
including lead, which is known to the state of California to
cause cancer, birth defects, or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
Dimensions
C C
D D
E E
F F
G G
Note: Dimensions subject to change without notice.
Identity™
A A
B B
J J
Specification
Two handle widespread lavatory faucet features 8"-16"
mount, ceramic cartridges, 1/2" IPS inlet connections,
push pop-up drain assembly and standard 1.0 gpm (3.8
L/min) aerator. Faucet constructed from brass, plated in
standard polished chrome finish.
Certi ed by
CSA Group
H H
K K
Measurements
A 13-1/2", 343 mm
B 8", 203 mm
C 4", 102 mm
D (2x) 2-1/8", 54 mm
Deck Thickness Ref.
E Min. 5/8", 16 mm
Max. 1-3/8", 35 mm
(2x) Hole Size
F Min. Ø 1-1/4", 32 mm
Max. Ø 1-1/2", 38 mm
Hole Size
G Min. Ø 1-3/8", 35 mm
Max. Ø 1-5/8", 41 mm
H 4-5/16", 110 mm
4-5/8", 117 mm
J
3-5/8", 92 mm
K
