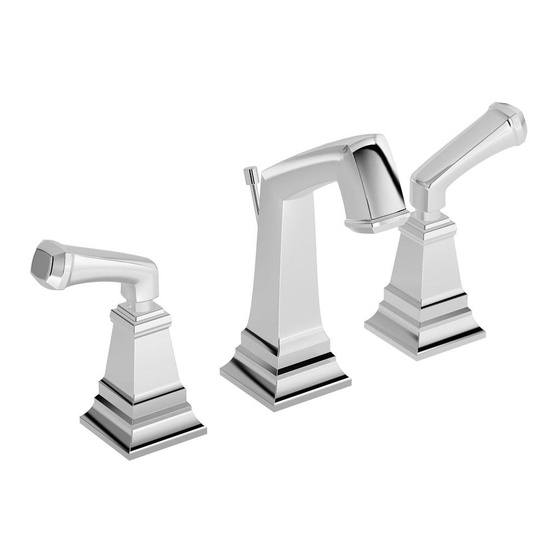

Two Handle Widespread Lavatory Faucet
SLW-4212
Installation and Service Instructions
Model Number
SLW-4212 Two Handle Lavatory
faucet with pop-up drain
Alternate Finish Code
append to part numbers when applicable
-STN Satin Nickel
-ORB Oil rubbed bronze
Chrome (standard)
--

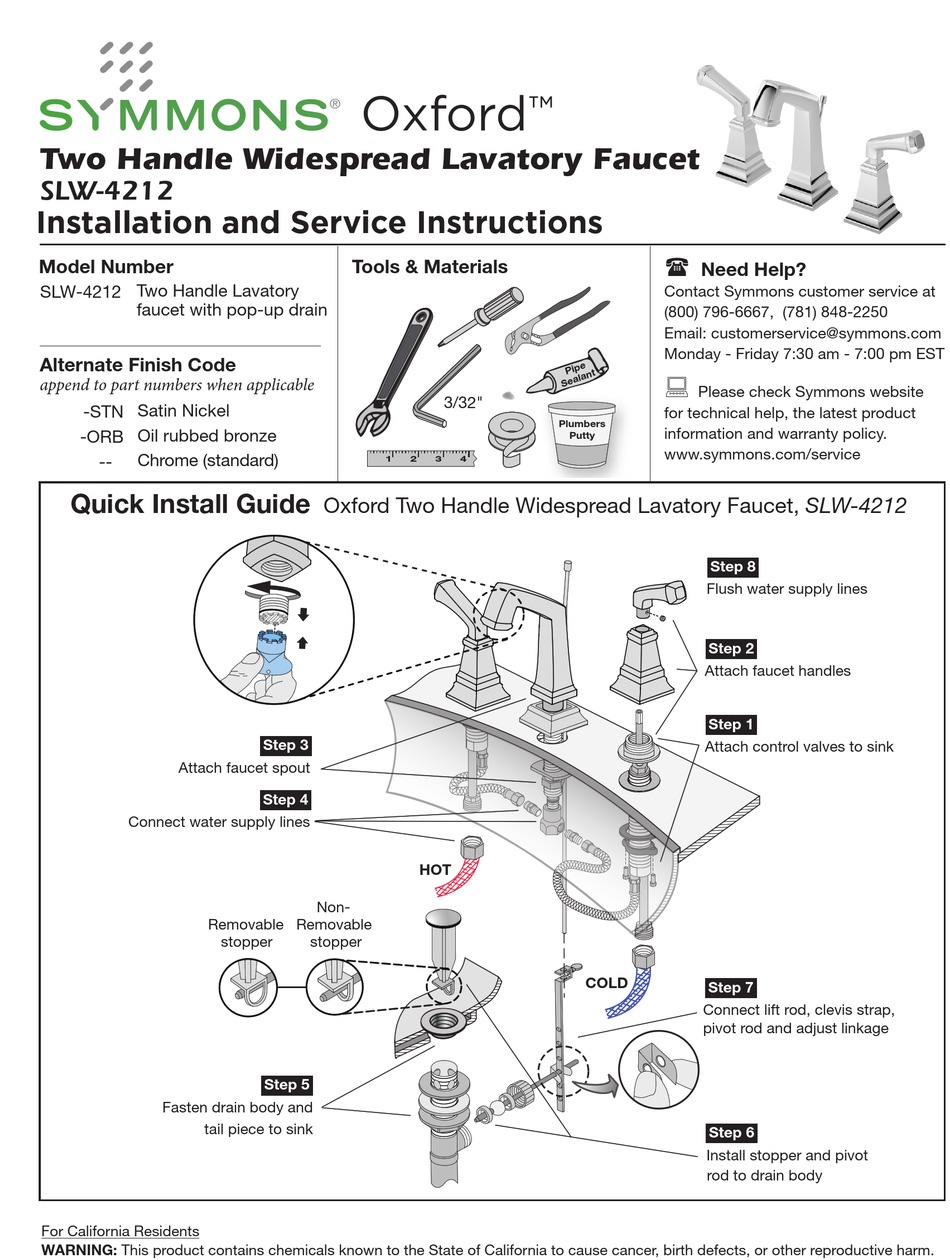

Quick Install Guide
Attach faucet spout
Connect water supply lines
Removable Removable
Fasten drain body and
tail piece to sink
For California Residents
WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Oxford
Tools & Materials
1
Oxford Two Handle Widespread Lavatory Faucet, SLW-4212
Step 3
Step 1
Step 4
Step 1
Non-
stopper
stopper
Step 5
™
3/32"
Plumbers
Putty
2
3
4
HOT
COLD
Need Help?
Contact Symmons customer service at
(800) 796-6667, (781) 848-2250
Email: customerservice@symmons.com
Monday - Friday 7:30 am - 7:00 pm EST
Please check Symmons website
for technical help, the latest product
information and warranty policy.
www.symmons.com/service
Step 8
Flush water supply lines
Step 2
Attach faucet handles
Step 1
Attach control valves to sink
Step 7
Connect lift rod, clevis strap,
pivot rod and adjust linkage
Step 6
Install stopper and pivot
rod to drain body
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Symmons Oxford SLW-4212
Summary of Contents for Symmons Oxford SLW-4212
- Page 1 Model Number Tools & Materials Need Help? SLW-4212 Two Handle Lavatory Contact Symmons customer service at faucet with pop-up drain (800) 796-6667, (781) 848-2250 Email: customerservice@symmons.com Monday - Friday 7:30 am - 7:00 pm EST Alternate Finish Code ...
- Page 2 Installation Instructions Step 4 Connect water supply lines If replacing an older faucet ensure water supply is Caution: turned before removing. Then open faucet valves to relieve water pressure. Step 1 Attach control valves screw down until thread stops COLD Step 2 Attach handles Step 5 Fasten drain body ange washe r...
- Page 3 Step 6 Install stopper and pivot rod to drain Step 8 Flush water supply lines removable removable Care of faucet finish Clean finish area by using mild soap and water or non-abrasive cleaner and then rinse immediately. A non-abrasive wax may be used to preserve finish area.
- Page 4 ( Ordering replacement parts: (blue stripe pop-up drain on cold hose) Call Symmons customer service at (800) 796-6667, assembly (781) 848-2250 M-F 7:30 am - 7:00 pm EST or RL-154LR includes stopper check our website at www.symmons.com for a list of Symmons distributors.
