Widespread Lavatory Faucet
Installation and Service Instructions
Model Numbers
SLW-4712 Lavatory faucet with
pop-up drain
Note: Instructions replace document
ZV-782 as of June 2012.
Alternate Finish Code
append to part numbers when applicable
-STN Satin Nickel
Chrome (standard)
--

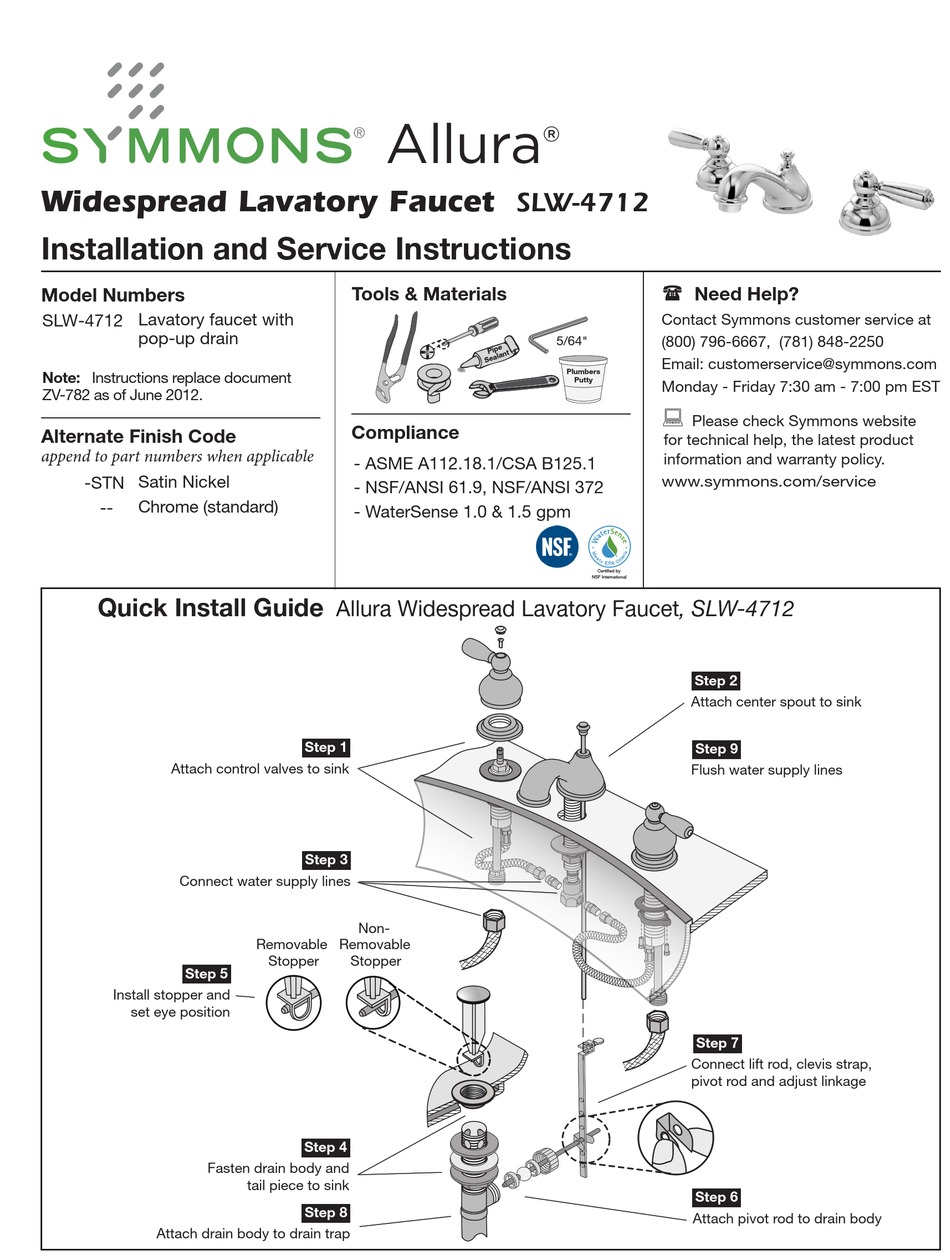

Quick Install Guide
Attach control valves to sink
Connect water supply lines
S
Step 5
Install stopper and
set eye position
Fasten drain body and
Attach drain body to drain trap
Allura
Tools & Materials
Compliance
- ASME A112.18.1/CSA B125.1
- NSF/ANSI 61.9, NSF/ANSI 372
- WaterSense 1.0 & 1.5 gpm
Allura Widespread Lavatory Faucet, SLW-4712
Step 1
Step 1
Step 3
Non-
Removable Removable
Stopper
Stopper
Step 4
tail piece to sink
Step 8
®
SLW-4712
Need Help?
Contact Symmons customer service at
(800) 796-6667, (781) 848-2250
5/64"
Email: customerservice@symmons.com
Plumbers
Putty
Monday - Friday 7:30 am - 7:00 pm EST
Please check Symmons website
for technical help, the latest product
information and warranty policy.
www.symmons.com/service
Certi ed by
NSF International
Step 2
Attach center spout to sink
Step 9
Flush water supply lines
Connect lift rod, clevis strap,
pivot rod and adjust linkage
Step 6
Attach pivot rod to drain body
Step 7
