Page 1: User Manual

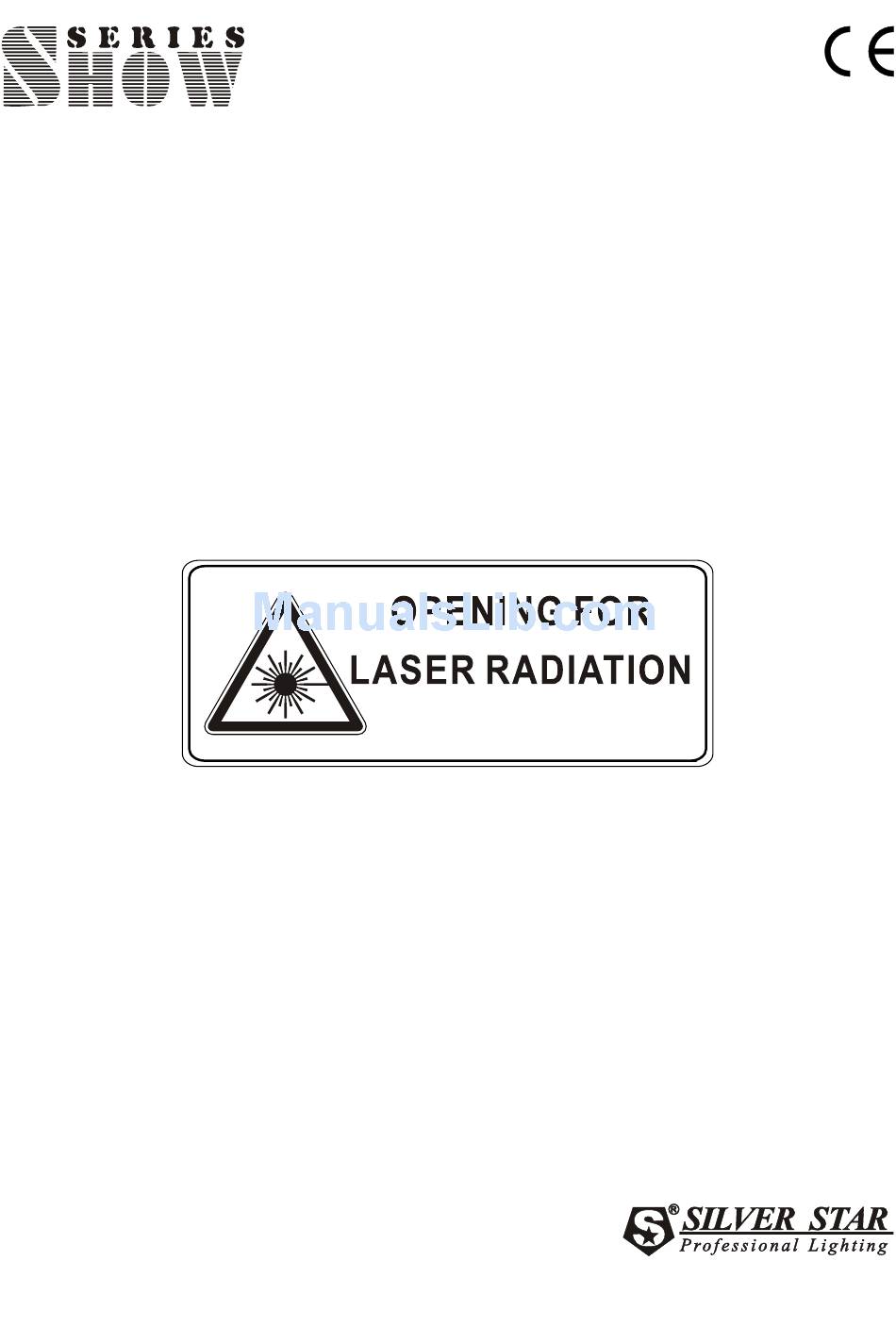

YX-2007 Show-Pro (RGB) Laser USER MANUAL Version 1.2 www.yagang.com 2006.4.24... -
Page 2: Table Of Contents
Open the box for checking • • • • • • • • • • • • • • • • • • • • Pa ge 1 Installation • • • • • • • • • • • • • • • • • • • • • • • • • • • • Pa ge 1 Attention •... -
Page 3: Open The Box For Checking
1. Open the box for checking In order to use this product safety and reasonable for the users, please read over this manual carefully before use and the operation must strictly according to this manual to avoid any damage to the product and personal safety. Once after received this products please take and put carefully. -
Page 4: Attention
3. Attention 1. Must operate according to the user manual. Don't separate the light personally. Call the technician when the machine breaks down. 2. Please do not see the laser beam directly to avoid any damage. 3. Before connect or disconnect the power, please adjust the luminance of the laser diode to the least to avoid any damage to the laser diode. -
Page 5: Structure Of The Fixture
Structure of the fixture Description. Description. No . No . Lens cover AC 220V fan Dustproof glass DC 12V fan Power supply 1 of blue laser diode Reflect bowl Red laser diode Feet of machine Power supply 1 of red laser diode Blue laser diode Power supply 1 of green laser diode X scan motor... -
Page 6: Control Board Instruction
6. Control board instruction ILDADB-25F Connector-IN ADDRESS ILDADB-25F Connector-OUT Security Remote Lock key switch POWER INPUT 1 2 3 Remote Lock In the event of removal, laser will not emit any beam.(E.U. IEC regulation) Security key switch Laser diode ON/OFF POWER ON/OFF Power switch POWER INPUT Input power, with inner fuse. - Page 7 7. Control PCB Replacement Steps: Disassemble defective PCB and then assemble new PCB.Make some marks of cable connection of refer to electrical diagram so that the connection of cables shonld be exactly same as original one. Control PCB X scan PCB Y scan PCB Signal switch PCB Fig 7-1 Control PCB Assembling Diagram...
-
Page 8: Scan Motor Replacement
8. Scan motor Replacement (1) Steps: 1. Unscrew UK M6 screw and plug out male signal connector. 2. Disassemble all M4 10 screw for X,Y scanner socket so that scan motors can be took out,put in or rotate to adjust the scan angle. 3. - Page 9 9. Adjustable mirror socket (1) Steps 1. Loose setscrew of X,Y and then adjust mirror socket to suitable position by X,Y adjustable screws. 2. Adjust Z adjustable screw at same time. 3. Fix X,Y setscrew. NOTE:Made sure all beams through adjustable mirror socket be one point when you adjust X,Y,Z line with adjustable screw.
- Page 10 10. Laser diode replacement Methods: Disassemble whole laser system (include power supply1,power supply 2,laser diode) and then replace new one at original position. Note:keep laser diode,power supply and cables be ompletly and don`t try to damage,destroy or cut them so that it can be repaired (crefer fig 1-7). Snip Snip Wong Method...
- Page 11 11. Electrical diagram of laser Fig 11-1 TOP Fig11-2 power supply 1 of blue laser diode power supply 2 of green laser diode power supply 2 of blue laser diode power supply 1 of red laser diode blue laser diode Green laser diode power supply 1 of green laser diode red laser diode...
- Page 12 12. DMX512 Operate The product has 16 operate channels(international standard DMX512 signal),The details as follow DMX512 Function Value Brightness 0~255 0~100% dimmer Original colour 0~25 26~51 white 52~77 Yellow 78~103 104~129 Green Colour Cyan 130~155 156~181 Blue Purple 182~207 Colour change 208~233 234~255 Colour fluent from slow to fast...
-
Page 13: Specification
13. Specification Ø Voltage: AC 220V~240V, 50/60Hz Ø Total power: 120W Ø Signal input power: -5~+5V Ø X/Y axes beam scanning optical angle: 0~ 30 Ø Input signal bandwidth: 0~1000Hz Ø Condition temperature: -10 ~+35 Ø Laser light power: Laser Class 3B 635nm >150mW Green Laser Class 3B 532nm >60mW... -
Page 14: 15 )E Le Ct Ri Ca L Di Ag Ra M
15. Electrical diagram Manostat power of blue laser diode Blue aser diode trasnsformer Blue laser diode power supply of green laser diode Green laser diode power supply of red laser diode red laser diode... -
Page 15: 16 )Tr Ou Bl E Sh Oo Ti Ng
16. Trouble shooting SIUATION REASON FAULTY PART PART NO . Damaged fuse Fuse 09-00-3001-01 No power Damaged power switch 08-05-04210-02 Power switch Damaged power supply 16-03-0004-00 Damaged mic 16-03-0001-00 No music-active/ Damaged control PCB Control PCB 26-2A-LT6V20-00 Music-active Damaged potentiometer Potentiometer 04-03-0105-03 No sensitivity... - Page 16 Appendix ILDA DB 25F PINOUTS DB 25 definens Intensity/Blanking 0V to 2.5V Interlock A Connected to pin 17 inside the Qm2000 0V to 2.5V Green 0V to 2.5V Blue 0V to 2.5V Deep blue 0V to 2.5V Yellow 0V to 2.5V Cyan 0V to...
