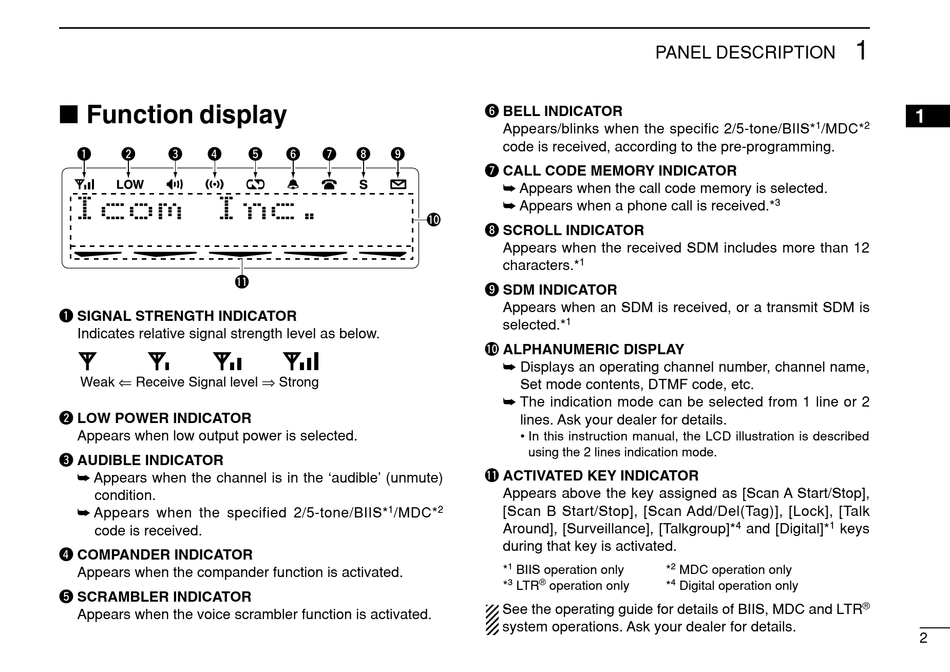

I Function Display - Icom IF5061 Instruction Manual

I Function display

q w e r
I c o m I n c .
!1
q SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level as below.
Weak Receive Signal level
w LOW POWER INDICATOR
Appears when low output power is selected.
e AUDIBLE INDICATOR
➥ Appears when the channel is in the 'audible' (unmute)
condition.
➥ Appears when the specified 2/5-tone/BIIS*
code is received.
r COMPANDER INDICATOR
Appears when the compander function is activated.
t SCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
t y u i o
!0
Strong
1
/MDC*
y BELL INDICATOR
Appears/blinks when the specific 2/5-tone/BIIS*
code is received, according to the pre-programming.
u CALL CODE MEMORY INDICATOR
➥ Appears when the call code memory is selected.
➥ Appears when a phone call is received.*
i SCROLL INDICATOR
Appears when the received SDM includes more than 12
1
characters.*
o SDM INDICATOR
Appears when an SDM is received, or a transmit SDM is
1
selected.*
!0 ALPHANUMERIC DISPLAY
➥ Displays an operating channel number, channel name,
Set mode contents, DTMF code, etc.
➥ The indication mode can be selected from 1 line or 2
lines. Ask your dealer for details.
• In this instruction manual, the LCD illustration is described
using the 2 lines indication mode.
!1 ACTIVATED KEY INDICATOR
Appears above the key assigned as [Scan A Start/Stop],
[Scan B Start/Stop], [Scan Add/Del(Tag)], [Lock], [Talk
2
Around], [Surveillance], [Talkgroup]*
during that key is activated.
1
* BIIS operation only
3 ®
* LTR operation only
See the operating guide for details of BIIS, MDC and LTR
system operations. Ask your dealer for details.
