CONNECTION AND MAINTENANCE

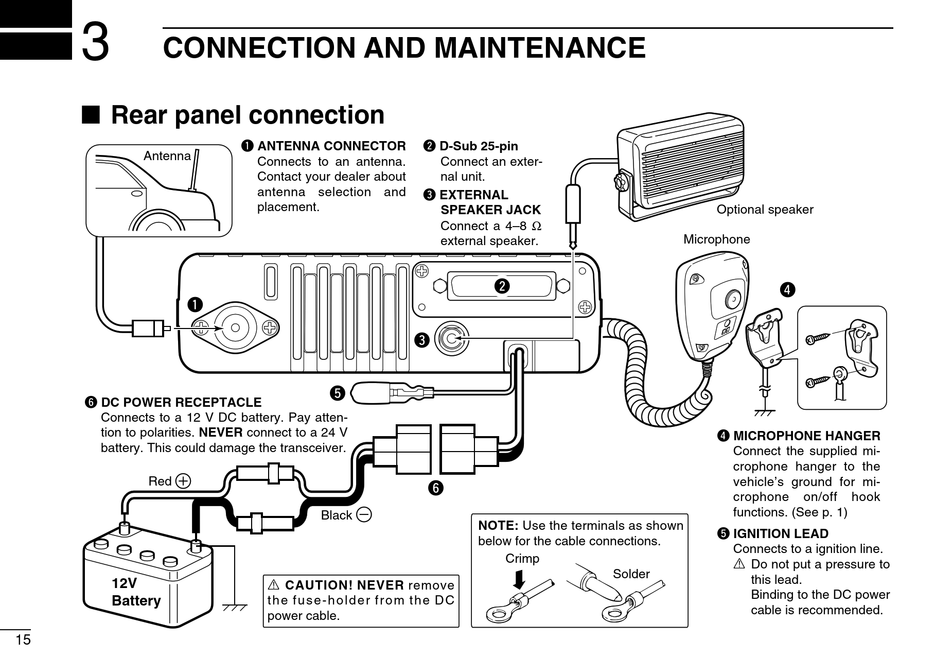

I Rear panel connection

Antenna
q
y DC POWER RECEPTACLE
Connects to a 12 V DC battery. Pay atten-
tion to polarities. NEVER connect to a 24 V
battery. This could damage the transceiver.
Red
12V
Battery
15
q ANTENNA CONNECTOR
Connects to an antenna.
Contact your dealer about
antenna selection and
placement.
e
t
Black
R CAUTION! NEVER remove
t h e f u s e - h o l d e r f r o m t h e D C
power cable.
w D-Sub 25-pin
Connect an exter-
nal unit.
e EXTERNAL
SPEAKER JACK
Connect a 4–8
external speaker.
w
y
NOTE: Use the terminals as shown
below for the cable connections.
Crimp
Optional speaker
Microphone
r
r MICROPHONE HANGER
Connect the supplied mi-
crophone hanger to the
vehicle's ground for mi-
crophone
functions. (See p. 1)
t IGNITION LEAD
Connects to a ignition line.
R Do not put a pressure to
Solder
this lead.
Binding to the DC power
cable is recommended.
on/off hook
