q CONTROL DIAL [VOL] (p. 19)
Rotate to adjust the volume level.
The assigned function for [VOL] and [Y Y ]/[Z Z ] can be ex-
changed in
INITIAL SET MODE
w PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
e SQUELCH/MONITOR SWITCH [MONI] (p. 19)
➥ Push and hold to open the squelch temporarily and
monitor the operating frequency.
➥ While pushing and holding this key, push [Y Y ] or [Z Z ] to
adjust the squelch level.
The assigned function for [VOL] and [Y Y ]/[Z Z ] can be
exchanged in
INITIAL SET MODE
r UP/DOWN KEYS [Y Y ]/[Z Z ] (p.18)
Selects the operating frequency, set mode items, etc.
The assigned function for [VOL] and [Y Y ]/[Z Z ] can be ex-
changed in
INITIAL SET MODE
t KEYPAD (pgs. 5, 6)
Used to enter operating frequency, the DTMF codes, etc.
(pgs. 18, 53).
(pgs. 18, 53).
(pgs. 18, 53).

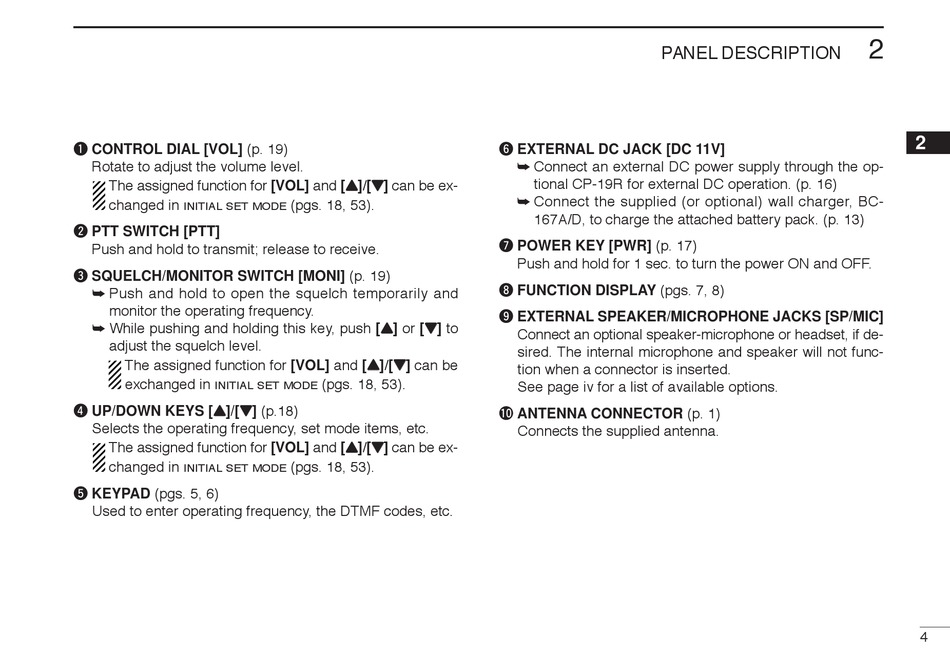

PANEL DESCRIPTION
y EXTERNAL DC JACK [DC 11V]
➥ Connect an external DC power supply through the op-
tional CP-19R for external DC operation. (p. 16)
➥ Connect the supplied (or optional) wall charger, BC-
167A/D, to charge the attached battery pack. (p. 13)
u POWER KEY [PWR] (p. 17)
Push and hold for 1 sec. to turn the power ON and OFF.
i FUNCTION DISPLAY (pgs. 7, 8)
o EXTERNAL SPEAKER/MICROPHONE JACKS [SP/MIC]
Connect an optional speaker-microphone or headset, if de-
sired. The internal microphone and speaker will not func-
tion when a connector is inserted.
See page iv for a list of available options.
!0 ANTENNA CONNECTOR (p. 1)
Connects the supplied antenna.
