Page 1: User Manual

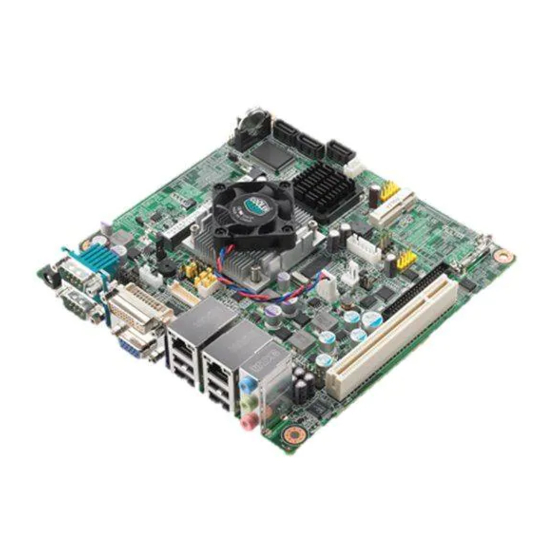

User Manual AIMB-213 Intel® Atom™ N455/D525 1.66/1.8 GHz Mini-ITX with VGA/DVI/LVDS, 6 COMs, Dual LANs, 8 USBs, Mini PCIe 1st Ed - April 2011 Version: January 2013... - Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 3 Whether your new Advantech equipment is destined for the labo- ratory or the factory floor, you can be assured that your product will provide the reliability and ease of operation for which the name Advantech has come to be known.
-
Page 4: Declaration Of Conformity
Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the man- ufacturer. Discard used batteries according to the manufacturer's instructions. AIMB-213 User Manual Data Modul AG - www.data-modul.com... - Page 5 DDR3 1333 TS256MSK64V3U PASS DDR3 1333 78.02GC6.420 PASS Apacer DDR3 1333 78.A2GC6.421 PASS DDR3 1333 D3SE28081XH15AA 96SD3-1G1333NN-AP PASS DDR3 1333 D3SE28082XH15AA 96SD3-2G1333NN-AP PASS DDR3 1333 KVR1333D3S9/1G PASS Kingston DDR3 1333 KVR1333D3S9/2G PASS AIMB-213 User Manual Data Modul AG - www.data-modul.com...
-
Page 6: Ordering Information
DDR3 1333 78.B2GC9.AF1 PASS DDR3 1333 D3SH56082XH15AA PASS DDR3 1333 AW12M64F8BKH9S PASS Ordering Information Part Number SC/DC LVDS AIMB-213N-S6A1E Atom N455 Single core 1, 28/24-bit AIMB-213D-S6A1E Atom D525 Dual core 1, 28/24-bit AIMB-213 User Manual Data Modul AG - www.data-modul.com... - Page 7 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
- Page 8 It should be free of marks and scratches and in perfect working order upon receipt. As you unpack the AIMB-213, check it for signs of ship- ping damage. (For example, damaged box, scratches, dents, etc.) If it is damaged or it fails to meet the specifications, notify our service department or your local sales representative immediately.
-
Page 9: Table Of Contents
Board layout: Jumper and Connector Locations ........6 Figure 1.1 Jumper and Connector Location ........ 6 Figure 1.2 I/O Connectors ............6 AIMB-213 Board Diagram ................. 7 Figure 1.3 AIMB-213 Board Diagram .......... 7 Safety Precautions ..................8 Jumper Settings ..................9 1.8.1 How to Set Jumpers.............. - Page 10 Appendix A Programming the Watchdog Timer . 63 Programming the Watchdog Timer ............64 A.1.1 Watchdog Timer Overview ............64 A.1.2 Programming the Watchdog Timer..........64 Table A.1: Watchdog Timer Registers........66 AIMB-213 User Manual Data Modul AG - www.data-modul.com...
- Page 11 DMA Channel Assignments ..............81 Table B.21:DMA Channel Assignments........81 B.22 Interrupt Assignments ................81 Table B.22:Interrupt Assignments..........81 B.23 1st MB Memory Map ................81 Table B.23:1st MB Memory Map ..........81 AIMB-213 User Manual Data Modul AG - www.data-modul.com...
- Page 12 AIMB-213 User Manual Data Modul AG - www.data-modul.com...
-
Page 13: Chapter 1 General Information
Chapter General Information Data Modul AG - www.data-modul.com... -
Page 14: Introduction
Introduction The AIMB-213 is designed with the Intel® Atom™ N455/D525 and the ICH8M for industrial applications that require both performance computing and enhanced power management capabilities. The motherboard has on board CPU Intel® Atom™ N455/ D525 1.66/1.8 GHz and DDR3 800 MHz up to 2/4 GB. -
Page 15: Specifications
Controller: LAN1: Intel 82567v; LAN2: Intel 82583v 1.3.6 Industrial features Watchdog timer: Can generate a system reset. The watchdog timer is pro- grammable, with each unit equal to one second or one minute (255 levels) AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 16: Mechanical And Environmental Specifications
Board weight: 0.365 kg Jumpers and Connectors Connectors on the AIMB-213 motherboard link it to external devices such as hard disk drives and a keyboard. In addition, the board has a number of jumpers used to configure your system for your application. - Page 17 SPI_CN1 SPI flash update connector MINIPCIE1 Mini PCI express connector ATX12V_1 ATX 12 V connector JSETCOM6 COM6 support 5V/12V Jumper Setting Brightness control selector for Analog or Digital (Default 1-2, JVBR1 Analog) AIMB-213 User Manual Data Modul AG - www.data-modul.com...
-
Page 18: Board Layout: Jumper And Connector Locations
Board layout: Jumper and Connector Locations 36 9 12 25 8 11 14 7 10 1 2 345 Figure 1.1 Jumper and Connector Location Figure 1.2 I/O Connectors AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 19: Aimb-213 Board Diagram
Realtek Audio Codec Mini-PCIe HD Audio PCIe x1 ALC892 BIOS Super I/O Winbond Fintek Infineon TPM 1.2 W83627DHG-P F821216AD (optional) 8-bit GPIO 1 RS-232, 1 RS-232/422/485 4 RS-232 Figure 1.3 AIMB-213 Board Diagram AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 20: Safety Precautions
Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the man- ufacturer. Discard used batteries according to the manufacturer’s instructions. AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 21: Jumper Settings
1.8.2 CMOS Clear (CMOS1) The AIMB-213 motherboard contains a jumper that can erase CMOS data and reset the system BIOS information. Normally this jumper should be set with pins 1-2 closed. If you want to reset the CMOS data, set J1 to 2-3 closed for just a few sec- onds, and then move the jumper back to 1-2 closed. -
Page 22: Com2 Rs 232/422/485 Mode Selector (Jsetcom2)
For 3.3 V LVDS Panel For 5 V LVDS Panel JLVDS1 and JLVDS2 For 12 V LVDS Panel Default for 3.3V LVDS panel JLVDS1 for 5V LVDS panel JLVDS1 JLVDS2 for 12V LVDS panel JLVDS1 AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 23: Pson1: Atx, At Mode Selector
AT Mode 2-3 closed 1-2 closed 1.8.6 JWDT1: Watchdog Timer Output Option Table 1.7: JWDT1: Watchdog Timer Output Option Closed Pins Result 2-3* System Reset* Default System Reset 2-3 closed 1-2 closed AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 24: System Memory
(DDR3 SDRAM). DRAM is available in capacities of 512 MB, 1 GB and 2 GB. The socket can be filled in any combination with DIMMs of any size, giving a total memory size between 512 MB and 4 GB. AIMB-213 does NOT support ECC (error checking and correction). -
Page 25: Chapter 2 Connecting Peripherals
Chapter Connecting Peripherals Data Modul AG - www.data-modul.com... -
Page 26: Introduction
USB Ports (LAN1_USB12/LAN2_USB34/USB56/ USB78) The AIMB-213 provides up to eight USB ports. The USB interface complies with USB Specification Rev. 2.0 supporting transmission rate up to 480 Mbps and is fuse pro- tected. The USB interface can be disabled in the system BIOS setup. -
Page 27: Vga Connector (Vga1)
VGA Connector (VGA1) The AIMB-213 includes VGA and DVI interface that can drive conventional VGA and DVI displays. VGA1 is a standard 15-pin D-SUB connector commonly used for VGA. DVI1 is DVI-I connector but only for DVI-D single link signals output. Pin assignments for VGA and DVI connector are detailed in Appendix B. -
Page 28: Serial Ports (Com1~Com6)
Serial Ports (COM1~COM6) COM12 AIMB-213 supports six serial ports. 1 of RS-232/422/485 - COM1, COM2, COM3, COM4, COM5 and COM6. The user can use JSETCOM2 to select among RS 232/ 422/485 modes for COM2. These ports can connect to serial devices, such as a mouse or a printer, or to a communications network. -
Page 29: Ps/2 Keyboard And Mouse Connector (Kbms1)
On board 6-pin wafer box connector, supports one standard PS/2 keyboard, one standard PS/2 mouse. CPU Fan Connector (CPU_FAN1) If a fan is used, this connector supports cooling fans of 500 mA (6 W) or less. AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 30: System Fan Connector (Sysfan1)
System FAN Connector (SYSFAN1) If a fan is used, this connector supports cooling fans of 500 mA (6 W) or less. AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 31: Front Panel Connectors (Jfp1/Jfp1+Jfp2)
External speaker (JFP1+JFP2/ SPEAKER) ((JFP1+JFP2/ SPEAKER)) is a 4-pin connector for an external speaker. If there is no external speaker, the AIMB-213 provides an onboard buzzer as an alternative. To enable the buzzer, set pins 7-10 as closed. AIMB-213 User Manual... -
Page 32: Power Led And Keyboard Lock Connector
System On System Suspend Fast flashes Fast flashes Fast flashes System Off Slow flashes Line In, Line Out, Mic In Connector (AUDIO1) Line In Line Out Mic In AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 33: Serial Ata Interface (Sata1/2/3)
2.10 Serial ATA Interface (SATA1/2/3) AIMB-213 features a high performance Serial ATA interface (up to 300 MB/s) which eases cabling to hard drives with long, thin cables. 2.11 The AIMB-213 provides 1 x PCI slot. AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 34: Front Headphone Connector (Hd1)
For motherboards with the optional HD Audio feature, we recommend that you connect a high-definition front panel audio module to this con- nector to take advantage of the motherboard’s high definition audio capability. AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 35: Atx 12V Power Connector (Atx12V_1)
2.14 SPI Flash connector(SPI_CN1) The SPI flash card pin header may be used to flash BIOS if the AIMB-213 cannot power on. AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 36: Lcd Inverter Connector (Inv1)
2.15 LCD Inverter Connector (INV1) Note! Signal Description Signal Signal Description Vadj=0.75 V (Recommended: 4.7 KΩ, >1/16 W) ENBKL LCD backlight ON/OFF control signal AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 37: Lvds Connector (Lvds1)
2.16 LVDS Connector (LVDS1) OD3- OD3+ 2.17 General purpose I/O Connector (GPIO1) AIMB-213 User Manual Data Modul AG - www.data-modul.com... - Page 38 AIMB-213 User Manual Data Modul AG - www.data-modul.com...
-
Page 39: Bios Operation
Chapter BIOS Operation Data Modul AG - www.data-modul.com... -
Page 40: Introduction
AIMB-213 setup screens. BIOS Setup The AIMB-213 Series system has AMI BIOS built in, with a CMOS SETUP utility that allows users to configure required settings or to activate certain system features. The CMOS SETUP saves the configuration in the CMOS RAM of the motherboard. -
Page 41: Main Menu
Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time must be entered in HH:MM:SS format. AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 42: Advanced Bios Features
3.2.2 Advanced BIOS Features Select the Advanced tab from the AIMB-213 setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>... - Page 43 CPU speed is controlled by the operating system. Intel® C-STATE tech This item allows the CPU to save more power under idle mode. Enhanced C-States CPU idle set to enhanced C-States, disabled by Intel®. C-STATE tech item. AIMB-213 User Manual Data Modul AG - www.data-modul.com...
- Page 44 AHCI is a new interface specification that allows the SATA controller driver to support advanced features. While entering setup, BIOS auto detects the pres- ence of AHCI devices. This displays the status of auto detection of AHCI devices. AIMB-213 User Manual Data Modul AG - www.data-modul.com...
- Page 45 Onboard Serial port 5 [C90/IRQ10] This item allows user to adjust serial port 5 address and IRQ. Onboard Serial port 6 [C98/IRQ11] This item allows user to adjust serial port 6 address and IRQ. AIMB-213 User Manual Data Modul AG - www.data-modul.com...
- Page 46 This shows you the current temperature of system. CPU Temperature This shows the current CPU temperature. VCORE and Other Voltages This shows the voltage of VCORE, +3.3V, +3.3V, +12V, +5V, 5VSB(V), 3.3VSB(V), VBAT(V) AIMB-213 User Manual Data Modul AG - www.data-modul.com...
- Page 47 General ACPI Configuration – Suspend mode Select the ACPI state used for system suspend. – Report Video on S3 Resume This item allows you to invoke VA BIOS POST on S3/STR resume. AIMB-213 User Manual Data Modul AG - www.data-modul.com...
- Page 48 ACPI APIC support Include APIC table pointer to RSDT pointer list. – AMI OEMB table Include OEMB table pointer to R(x)SDT pointer lists. – Headless mode Enable / Disable Headless operation mode through ACPI. AIMB-213 User Manual Data Modul AG - www.data-modul.com...
- Page 49 Enable/Disable USB Device Wakeup from S3/S4. – High Performance Event Timer Enable/Disable High performance Event timer. – HPET Memory Address It will provide you with the means to get to it via the various ACPI methods AIMB-213 User Manual Data Modul AG - www.data-modul.com...
- Page 50 This option allows user to set system action when AC power restores after AC power loss. Available options include Power Off, Power On, Last Status. Resume On Ring Disable/Enable RI wake event. Resume On RTC Alarm Disable/Enable RTC wake event. AIMB-213 User Manual Data Modul AG - www.data-modul.com...
- Page 51 This item allows you to select HiSpeed (480 Mbps) or FullSpeed (12 Mbps). BIOS EHCI Hand-Off This is a workaround for OSs without EHCI hand-off support. The EHCI owner- ship change should be claimed by EHCI driver. AIMB-213 User Manual Data Modul AG - www.data-modul.com...
-
Page 52: Advanced Pci/Pnp Settings
3.2.3 Advanced PCI/PnP Settings Select the PCI/PnP tab from the AIMB-213 setup screen to enter the Plug and Play BIOS Setup screen. You can display a Plug and Play BIOS Setup option by highlight- ing it using the <Arrow> keys. All Plug and Play BIOS Setup options are described in this section. - Page 53 When set to Reserved, will specified DMA is Reserved for use by legacy ISA devices. 3.2.3.10 Reserved Memory Size This item allows you to reserve a set amount of memory for legacy ISA devices. AIMB-213 User Manual Data Modul AG - www.data-modul.com...
-
Page 54: Boot Settings
If this option is set to Disabled, the BIOS displays normal POST messages. If Enabled, an OEM Logo is shown instead of POST messages. AddOn ROM Display Mode Set display mode for option ROM. Bootup Num-Lock Select the Power-on state for Numlock. AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 55: Security Setup
3.2.5 Security Setup Select Security Setup from the AIMB-213 Setup main BIOS setup menu. All Security Setup options, such as password protection and virus protection are described in this section. To access the sub menu for the following items, select the item and press <Enter>:... -
Page 56: Advanced Chipset Settings
This item allows you to select which graphics controller to use as the primary boot device. Internal Graphics Mode Select Select the amount of system memory used by the Internal graphics device. AIMB-213 User Manual Data Modul AG - www.data-modul.com... - Page 57 This item allows you to select panel resolution. – DVI Panel Type This item allows you to select DVI panel resolution. – Spread Spectrum Clock This item allows you to enable or disable spread spectrum clock. AIMB-213 User Manual Data Modul AG - www.data-modul.com...
- Page 58 Enables or disables the HDA controller. – SMBUS Controller Enables or disables the SMBUS controller. – SLP_S4# Min. Assertion Width This item allows you to set a delay of a set number of seconds. AIMB-213 User Manual Data Modul AG - www.data-modul.com...
-
Page 59: Exit Option
Select Discard Changes and Exit from the Exit menu and press <Enter>. The following message appears: Discard Changes and Exit Setup Now? [Ok] [Cancel] Select Ok to discard changes and exit. AIMB-213 User Manual Data Modul AG - www.data-modul.com... - Page 60 3.2.7.4 Load Optimal Defaults The AIMB-213 automatically configures all setup items to optimal settings when you select this option. Optimal Defaults are designed for maximum system performance, but may not work best for all computer applications. In particular, do not use the Opti- mal.
-
Page 61: Software Introduction & Service
Chapter Software Introduction & Service Data Modul AG - www.data-modul.com... -
Page 62: Introduction
Introduction The mission of Advantech Embedded Software Services is to "Enhance quality of life with Advantech platforms and Microsoft® Windows® embedded technology." We enable Windows® Embedded software products on Advantech platforms to more effectively support the embedded computing community. Customers are freed from the hassle of dealing with multiple vendors (hardware suppliers, system integrators, embedded OS distributors) for projects. - Page 63 Refers to a series of methods for reducing power consump- tion in computers by lowering the clock frequency. This API allows the user to change clock frequency setting from 87.5% to 12.5%. AIMB-213 User Manual Data Modul AG - www.data-modul.com...
-
Page 64: Software Utility
The eSOS also provides for remote connection via Telnet server and FTP server so the administrator can attempt to rescue the system. Note: This function requires BIOS customization. AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 65: Chipset Software Installation Utility
Chapter Chipset Software Installation Utility Data Modul AG - www.data-modul.com... -
Page 66: Before You Begin
To facilitate the installation of the enhanced display drivers and utility software, read the instructions in this chapter carefully. The drivers for the AIMB-213 are located on the software installation CD. The driver in the folder of the driver CD will guide and link you to the utilities and drivers under a Windows system. -
Page 67: Windows Xp Driver Setup
Windows XP Driver Setup Insert the driver CD into your system's CD-ROM drive. You can see the driver folder items. Navigate to the "Chipset" folder and click "infinst_autol.exe" to complete the installation of the driver. AIMB-213 User Manual Data Modul AG - www.data-modul.com... - Page 68 AIMB-213 User Manual Data Modul AG - www.data-modul.com...
-
Page 69: Vga Setup
Chapter VGA Setup Data Modul AG - www.data-modul.com... -
Page 70: Introduction
Insert the driver CD into your system's CD-ROM drive. You can see the driver folders items. Navigate to the "Graphic" folder and click "setup.exe" to complete the installa- tion of the drivers for Windows 7, Windows Vista, Windows XP. AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 71: Lan Configuration
Chapter LAN Configuration Data Modul AG - www.data-modul.com... -
Page 72: Introduction
Introduction The AIMB-213 has dual Gigabit Ethernet LANs via dedicated PCI Express x1 lanes (Intel 82567V (LAN1) and 82583V (LAN2)) that offer bandwidth of up to 500 MB/sec, eliminating the bottleneck of network data flow and incorporating Gigabit Ethernet at 1000 Mbps. -
Page 73: Windows 7/Vista/Xp Driver Setup (Intel 82567V/82583V)
Windows 7/Vista/XP Driver Setup (Intel 82567v/ 82583v) Insert the driver CD into your system's CD-ROM drive. Select the LAN folder then navigate to the directory for your OS. AIMB-213 User Manual Data Modul AG - www.data-modul.com... - Page 74 AIMB-213 User Manual Data Modul AG - www.data-modul.com...
-
Page 75: Appendix A Programming The Watchdog Timer
Appendix Programming the Watchdog Timer Data Modul AG - www.data-modul.com... -
Page 76: Programming The Watchdog Timer
Programming the Watchdog Timer The AIMB-213's watchdog timer can be used to monitor system software operation and take corrective action if the software fails to function within the programmed period. This section describes the operation of the watchdog timer and how to pro- gram it. - Page 77 Unlock W83627DHG-P Select register of watchdog timer Enable the function of the watchdog timer Use the function of the watchdog timer Lock W83627DHG-P AIMB-213 User Manual Data Modul AG - www.data-modul.com...
-
Page 78: Table A.1: Watchdog Timer Registers
0. [default=0] Bit 4: Read status of watchdog timer, 1 means timer is “timeout”. AA (hex) ----- Write this address to I/O port 2E (hex) to lock the watchdog timer 2. AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 79: Example Program
;----------------------------------------------------------- Dec dx ; Lock W83627DHG-P Mov al,0aah Out dx,al Enable watchdog timer and set 5 minutes as timeout interval ;----------------------------------------------------------- Mov dx,2eh ; Unlock W83627DHG-P Mov al,87h Out dx,al Out dx,al AIMB-213 User Manual Data Modul AG - www.data-modul.com... - Page 80 Enable watchdog timer to be reset by mouse ;----------------------------------------------------------- Mov dx,2eh ; Unlock W83627DHG-P Mov al,87h Out dx,al Out dx,al ;----------------------------------------------------------- Mov al,07h ; Select registers of watchdog timer Out dx,al Inc dx Mov al,08h Out dx,al ;----------------------------------------------------------- AIMB-213 User Manual Data Modul AG - www.data-modul.com...
- Page 81 Out dx,al Inc dx Mov al,01h Out dx,al ;----------------------------------------------------------- Dec dx ; Enable watchdog timer to be strobed reset by keyboard Mov al,0f7h Out dx,al Inc dx In al,dx Or al,40h Out dx,al AIMB-213 User Manual Data Modul AG - www.data-modul.com...
- Page 82 Dec dx ; Generate a time-out signal Mov al,0f7h Out dx,al ;Write 1 to bit 5 of F7 register Inc dx In al,dx Or al,20h Out dx,al ;----------------------------------------------------------- Dec dx ; Lock W83627DHG-P Mov al,0aah Out dx,al AIMB-213 User Manual Data Modul AG - www.data-modul.com...
-
Page 83: Appendix B I/O Pin Assignments
Appendix I/O Pin Assignments Data Modul AG - www.data-modul.com... -
Page 84: Usb Header (Usb56, Usb78)
USB Header (USB56, USB78) Table B.1: USB Header (USB56) Signal Signal USB0_VCC5 USB1_VCC5 USB0_D- USB1_D- USB0_D+ USB1_D+ VGA Connector (VGA1) Table B.2: VGA Connector (VGA1) Signal Signal CRT_VCCIN VGA_G VGA_B V_SDAT H-SYNC V-SYNC V_SCLK AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 85: Rs-232 Interface (Com3/4/5/6)
GND_3 GND_3 DCD_4 DSR_4 RXD_4 RTS_4 TXD_4 CTS_4 DTR_4 RRI_4 GND_4 GND_4 DCD_5 DSR_5 RXD_5 RTS_5 TXD_5 CTS_5 DTR_5 RRI_5 GND_5 GND_5 DCD_6 DSR_6 RXD_6 RTS_6 TXD_6 CTS_6 DTR_6 RRI_6 GND_6 GND_6 AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 86: Rs-232/422/485 Setting Interface (Jsetcom2)
DCDA SOUTA COM1_DCD# COM1_SOUT COM1_TXD485N COM1_RXD485P SINA DTRA COM1_SIN COM1_DTR# COM1_TXD485P COM1_RXD485N SPI_CN1: SPI Fresh Card Pin Connector Table B.5: SPI_CN1:SPI Fresh Card Pin Connector Signal Signal +F1_3V F1_SPI_CS#_Q F1_SPI_CLK_Q F1_SPI_MISO_Q F1_SPI_MOSI_Q AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 87: Ps/2 Keyboard And Mouse Connector (Kbms1)
CPU Fan Power Connector (CPU_FAN1) Table B.7: CPU Fan Power Connector (CPU_FAN1) Signal +12 V DETECT System Fan Power Connector (CHA_FAN1) Table B.8: System Fan Power Connector (SYSFAN1/SYSFAN2) Signal +12 V DETECT AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 88: Power Led & Keyboard Lock Connector (Jfp1)
The single board computer has its own buzzer. You can also connect it to the external speaker on your computer chassis. Table B.10: Power Switch/HDD LED/SMBus/Speaker (JFP1+JFP2) Signal Signal SPK_P1 HDDLED+ HDDLED- SPK_P3 SMB_DAT SYS_RST SPK_P4 SMB_CLK AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 89: Usb/Lan Ports (Lan1_Usb12/Lan2_Usb34)
RCV+ B.12 Line In, Line Out, Mic In Connector (AUDIO1) Line In Line Out Mic In B.13 Serial ATA0/1 (SATA1/2/3) Table B.13: Serial ATA 0/1 (SATA1/2/3) Signal Signal SATA_0TX+ SATA_0TX- SATA_0RX- SATA_0RX+ AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 90: At/Atx Mode (Pson1)
Table B.15: AC-97 Audio Interface (HD1) Signal Signal MIC2_L MIC2_R FP_AUD_DET LOUT2_R SRTN1 LOUT2_DET LOUT2_L SRTN2 B.16 GPIO Pin Header (GPIO1) Table B.16: GPIO Pin Header (GPIO1) Signal Signal GPIO0 GPIO4 GPIO1 GPIO5 GPIO2 GPIO6 GPIO3 GPIO7 AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 91: Lvds Connector: Lvds1
Signal Signal VDDSAFE_1 VDDSAFE_2 GND_1 GND_7 VDDSAFE_3 VDDSAFE_4 OD0- OD0+ GND_2 GND_8 OD1- OD1+ GND_3 GND_9 OD2- OD2+ GND_4 GND_10 OCK- OCK+ GND_3 GND_11 DDC_CLK DDC_DAT GND_6 GND_12 OD3- OD3+ HPLG VCON AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 92: Lvds Power Jumper (Jlvds1 And Jlvds2)
VCC3 VCC_LCD B.19 LVDS Inverter (INV1) Table B.19: LVDS Power Jumper Signal +12V BL_EN BL_CLT B.20 ATX 12 V connector (ATX12V_1) Table B.20: ATX 12 V connector (ATX12V_1) Signal Signal +12V +12V AIMB-213 User Manual Data Modul AG - www.data-modul.com... -
Page 93: Dma Channel Assignments
Table B.23: 1st MB Memory Map Addr. range (Hex) Device E0000h - FFFFFh BIOS CC000h - DFFFFh Unused C0000h - CBFFFh VGA BIOS A0000h - BFFFFh Video Memory 00000h - 9FFFFh Base memory AIMB-213 User Manual Data Modul AG - www.data-modul.com... - Page 94 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2011 Data Modul AG - www.data-modul.com...
- Page 95 DI SPLAYS AND EMBEDDED SOLUTIONS DI SPLAYS AND EMBEDDED SOLUTIONS Data MoDul Headquarters Munich Landsberger Str. 322 D-80687 Munich - Germany Phone: +49-89-56017-0 Fax: +49-89-56017-119 www.data-modul.com Sales office Hamburg Borsteler Chaussee 51 D-22453 Hamburg - Germany Phone: +49-40-42947377-0 Sales office Duesseldorf Fritz-Vomfelde-Str.
