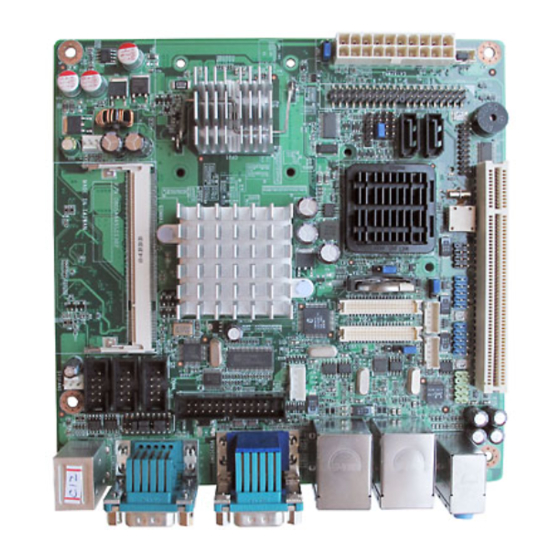

Intel atom processor n270 1.6 ghz fsb 533 mhz mini itx motherboard with vga, lvds, tv-out, 6 com, dual gbe, 8 usb, 2 sata ii
Hide thumbs Also See for AIMB-210:

Advertisement

Quick Links

AIMB-210 (Intel® Atom™ processor N270 1.6 GHz
FSB 533 MHz Mini ITX Motherboard with VGA, LVDS,
TV-Out, 6 COM, Dual GbE, 8 USB, 2 SATA II)
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
1.
AIMB-210 Intel® Atom™ processor N270 Mini-ITX
Motherboard
2.
IDE HDD cable (40 pin) x 1
3.
SATA HDD cable x 2
4.
SATA Power cable x 2
5.
Serial port cable x 3
6.
I/O port bracket x 1
7.
Startup manual x 1
8.
Driver CD x 1
9.
Warranty card x1
Optional Cable
1.
Parallel cable with bracket
2.
Dual port USB cable
(27 cm) with bracket
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at:
www.adobe.com/Prodindex/acrobat/readstep.html
(Acrobat is a trademark of Adobe).
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the AIMB-210 series Rev.A1.
Part No. 2006021010
Print in Taiwan
(P/N: 1700008809)
(P/N: 1700002204)
1st Edition,
Feb. 2009
Specifications

Standard SBC functions

CPU: Intel® Atom™ processor N270 1.6 GHz FSB 533
MHz
BIOS: Award 16 Mbit SPI
Chipset: Intel 945GSE with ICH7M
System Memory: Up to 2 GB; 200-pin SODIMM x 1,
Singel-channel 400/533 MHz DDR2
SATA2 Interface: Two onboard Serial ATA connectors
and data transfers up to 150 MB/s
IDE Interface: One onboard IDE connector supporting
up to two enhanced IDE devices. Supports PIO mode
4 (16.67 MB/s data transfer rate) and ATA 33/66/100
(33/66/100 MB/s data transfer rate) BIOS enabled/dis-
abled
CF interface: Supports compact flash Type II
Serial ports: Six serial ports, COM1, COM3, COM4,
COM5 and COM6 are RS-232; COM2 is RS-232/422/485
Parallel port: One parallel port, supports SPP/EPP/ECP
mode (with pin header)
Keyboard/mouse connector: Supports one standard
PS/2 keyboard, one standard PS/2 mouse
Watchdog timer: 1~255 level timer intervals
USB 2.0: Supports up to eight USB 2.0 ports, four exter-
nal ports and four onboard pin headers
GPIO: 16-bit general purpose Input/Output
Graphic Interface
Controller: Chipset integrated VGA controller
Display memory: Dynamically shared system memory
up to 224 MB
CRT: Up to 2048x1536 at 75 Hz maximum resolution,
400MHz RAMDAC
LVDS interface: Supports up to UXGA (1600X1200)
LVDS port: Supports dual LVDS connectors.
- LVDS1: single channel 18-bit/dual channel 36-bit
- LVDS2 (Option) : single channel 24-bit/dual channel
48-bit

Ethernet Interface

Dual 10/100/1000Base-T GbE LAN Realtek RTL8111C

Mechanical and Environmental

Dimensions (L x W): 170 x 170 mm
Power supply voltage: 3.3 V, +5 V, 12 V, +5 Vsb, -12 V
Power requirements: +5 V @ 1.96 A, +3.3 V @ 1.21 A,
+12 V @ 0.19 A, 5 VSB @ 0.28, -12 V@ 0.06 A. Mea-
sure of the maximum current values with system under
maximum load
AIMB-210 Startup Manual 1
