Advantech AIMB-213 Startup Manual

AIMB-213 (Intel
Mini-ITX with VGA/DVI/LVDS, 6 COM, Dual LAN,
8 USB, Mini PCIe)
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:

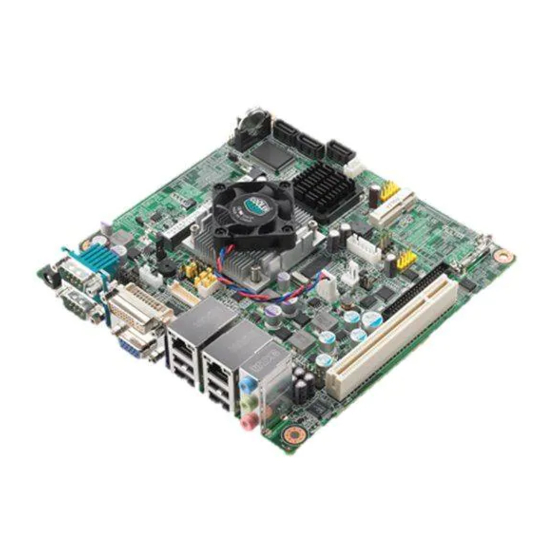

1. AIMB-213 Intel Atom™ N455/D525 Mini-ITX
®
moth erboard
2. SATA HDD cable x 3
3. SATA Power cable x 3
4. Serial port cable (1 to 4) x 1
5. I/O port bracket x 1
6. Startup manual x 1
7. Driver CD x 1
8. Warranty card x 1
9. CPU cooler (for Atom™ D525 only)
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader may be used to view any PDF file on
the CD. Acrobat Reader can be downloaded at:
www.adobe.com/Prodindex/acrobat/readstep.html (Acrobat
is a trademark of Adobe).
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the AIMB-213 series Rev.A1.
Part No. 2002021310
Printed in Taiwan
Atom™ N455/D525 1.66/1.8 GHz
®
1 Edition,
st
April, 2011
Specifications

Standard SBC functions

• CPU: Intel Atom™ processor N455/D525 1.66/1.8 GHz
®
• BIOS: Award 16 Mbit SPI
• Chipset: ICH8M
• System Memory: Up to 2 GB/4 GB; 204-pin SODIMM x
2, Single-channel 800 MHz DDR3
• SATA2 Interface: Three onboard Serial ATA connectors
and data transfers up to 300 MB/s
• CF interface: Supports compact flash Type II
• Serial ports: Six serial ports, COM1, COM3, COM4,
COM5 and COM6 are RS-232; COM2 is RS-232/422/485
• Keyboard/mouse connector: Supports one standard
PS/2 keyboard, one standard PS/2 mouse(On board 6pin
wafer box)
• Watchdog timer: 1~255 level timer intervals
• USB 2.0: Supports up to eight USB 2.0 ports, four exter-
nal ports and four onboard pin headers
• GPIO: 8-bit general purpose Input/Output
Graphic Interface
• Controller: Embedded Gen3.5+ GFX Core, 200/400 MHz
render clock frequency for N455/D525
• Display memory: Dynamically shared system memory
up to 224 MB
• VGA: Supports resolution up to SXGA 1400 x 1050
pixels, 32bits, 60Hz refresh rate for Atom N455, supports
resolutions up to 2048 x 1536 @ 60 Hz for Atom D525
• DVI: Supports up to UXGA 1600 x 1200 @ 60Hz
• LVDS interface: Supports 18/24-bit single channel and
up to WXGA 1366 x 768
• LVDS port: Supports Single LVDS connector

Ethernet Interface

• LAN1: 10/100/1000 Mbps GbE LAN Intel 82567V
• LAN2: 10/100/1000 Mbps GbE LAN Intel 82583V

Mechanical and Environmental

• Dimensions (L x W): 170 x 170 mm
• Power supply voltage: 12 V
• Power requirements:
AIMB-213N SKU +12 V @ 3.09 A
AIMB-213D SKU +12 V @ 3.43 A
(Maximum measured current values with system under
maximum load)
• Operating temperature: 0 ~ 60° C
• Weight: 0.365 kg (weight of board)
AIMB-213 Startup Manual 1
