Summary of Contents for MeiTrack MT90

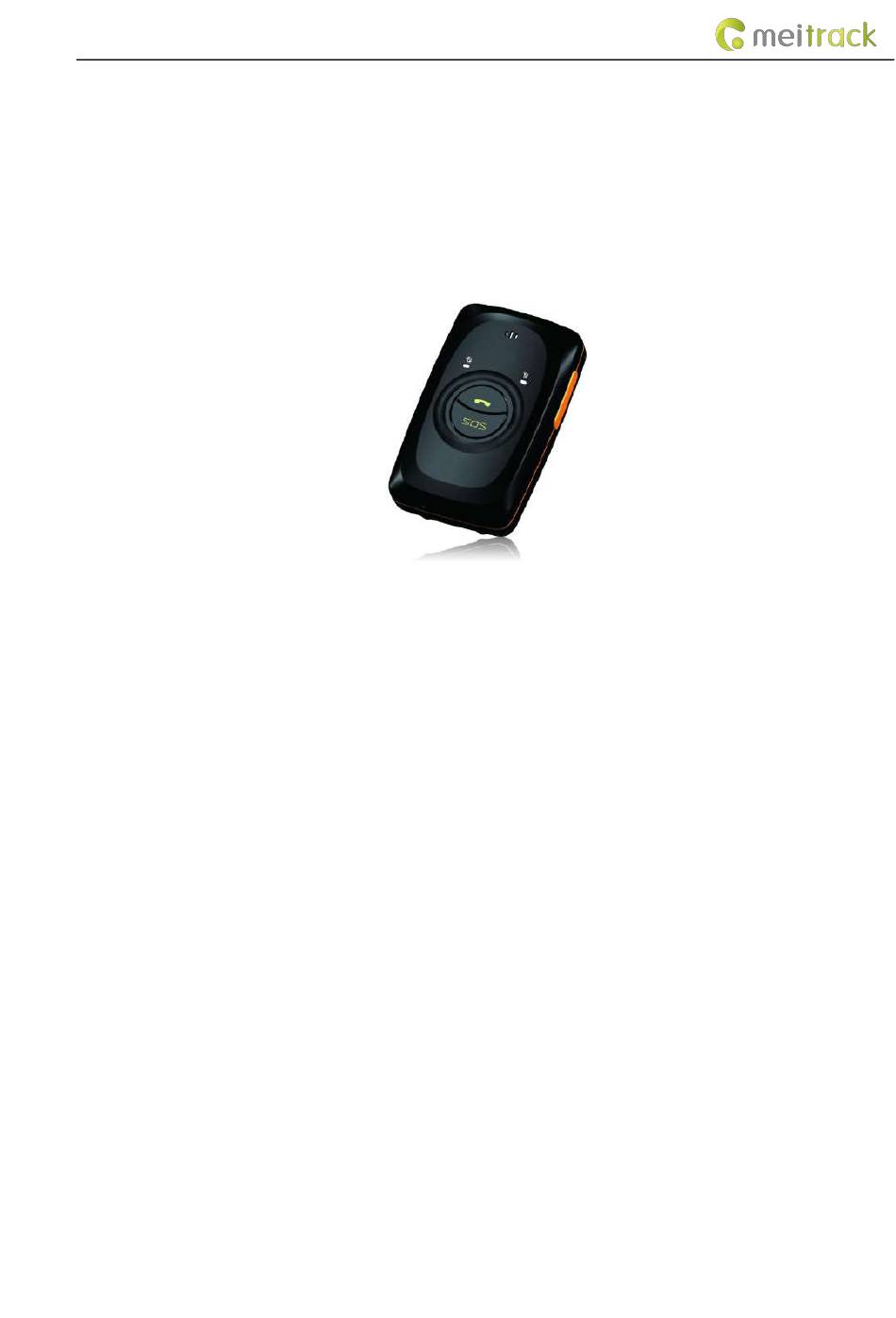

- Page 1 MEITRACK MT90 User Guide MEITRACK MT90 User Guide...
- Page 2 Change History File Name MEITRACK MT90 User Guide Created By Kyle Lv Creation Date 2011-05-16 Project MT90 Update Date 2015-09-24 Subproject User Guide Total Pages Version V2.3 Confidential External Documentation Copyright © 2015 Meitrack Group All rights reserved. - 2 -...
-
Page 3: Table Of Contents
3.1.2 Emergency Alarm ..............................- 4 - 3.1.3 Other Functions ...............................- 4 - 3.2 Specifications ..................................- 5 - 4 MT90 and Accessories ...................................- 5 - 5 About the MT90 ....................................- 6 - 5.1 Appearance ..................................- 6 - 5.2 LED Indicator ..................................- 7 - 6 First Use ......................................- 8 -... -
Page 4: Copyright And Disclaimer
2 Product Overview The MT90, a personal tracking device, is specially designed for the elderly, children, pets, and lone workers. It has the following functions: ... -
Page 5: Specifications
Determine movement, stillness, and Sensor 3D acceleration sensor vibration. GSM frequency band GSM 850/900/1800/1900 MHz Positioning accuracy 4 MT90 and Accessories MT90 tracker A battery Copyright © 2015 Meitrack Group All rights reserved. - 5 -... -
Page 6: About The Mt90

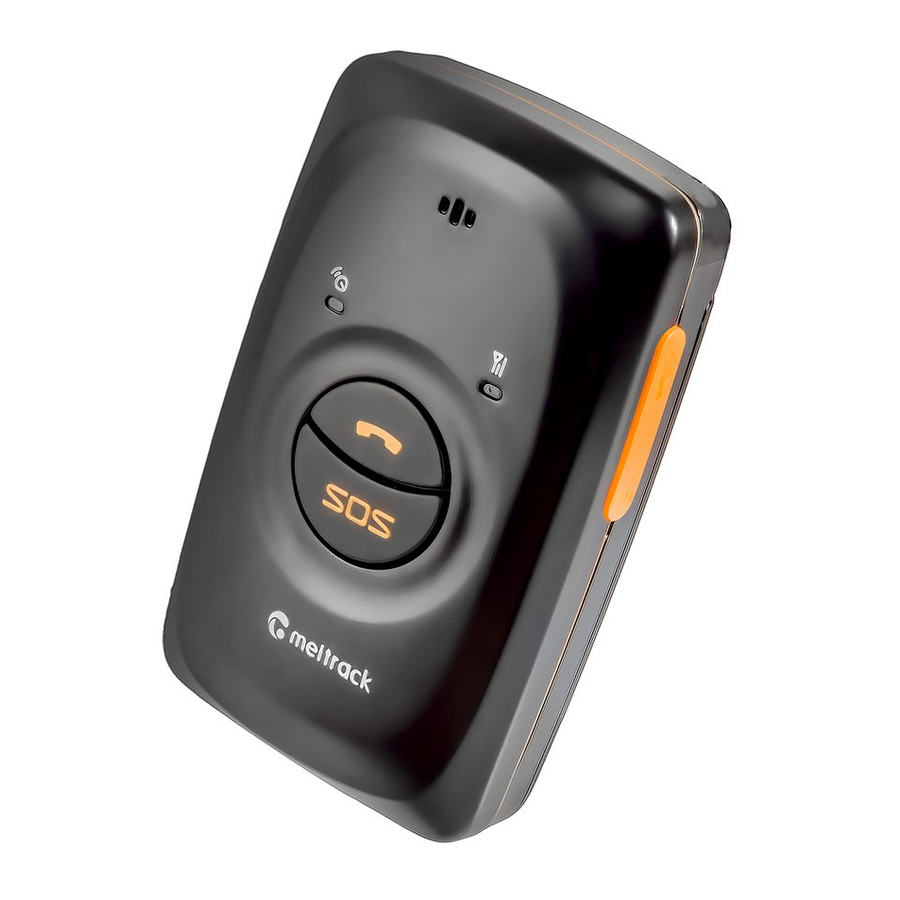

MEITRACK MT90 User Guide USB cable Travel adapter (charger) Screwdriver CD and MEITRACK MT90 Quick Start Guide Lanyard 5 About the MT90 5.1 Appearance Item Description Indicates GPS and battery status. For details, see the section 5.2 "LED GPS indicator (blue) Indicator."... -
Page 7: Led Indicator
After removing the battery cover, install the battery and SIM card. 5.2 LED Indicator To start the MT90, press and hold down the power button for 3 to 5 seconds. The blue and green indicators blink on for 1s and blink off for 1s simultaneously. -
Page 8: First Use
A call is coming in or busy. Blink every 5s The MT90 is in sleep mode. 1s on and 1s off No signal is received, or the MT90 is initializing. The MT90 is connected to the GSM network. 6 First Use Remove the battery cover. - Page 9 Once you have installed the battery and SIM card, you can turn on your device and start using it. Proper device configuration is required prior to first use. For more information about your device, please read the following instructions. Copyright © 2015 Meitrack Group All rights reserved. - 9 -...
-
Page 10: Quick Operation Command
This section describes how to query the current location of the portable MT90, ensuring that the GPS is working normally. Call the SIM card phone number that is used in the MT90, and hang up after the dial tone rings 2-3 times. -
Page 11: Sos - A71
SMS with the location and send geo-fence alarms and low power alarms. When you press the SOS button, the MT90 will dial three authorized phone numbers in sequence. It will stop dialing when one phone number answers, and then will send alarm information to the phone numbers. -
Page 12: Listen-In - A72
Send the text to the embedded SIM card phone number. The MT90 automatically replies to the SMS: IMEI,A72,OK. It indiates that the listen-in number is set successfully. When you call the tracker by using the preset listen-in phone number, the tracker will answer the call automatically and enter the listen-in state. -
Page 13: Sms Time Zone - B35
The MT90 automatically replies to the SMS: IMEI,B35,OK. It indicates that the time zone is set successfully. Note: The time zone is in unit of minutes. The default time zone of the tracker is GMT 0, and the time zone of SMS reports is different from that of GPRS data packets. -
Page 14: Ms03 Tracking System
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started"). -
Page 15: Battery Disposal
To prevent the harm, please dispose of or recycle them separately from other waste so as to boost resource recycling and reuse. If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2015 Meitrack Group All rights reserved.
