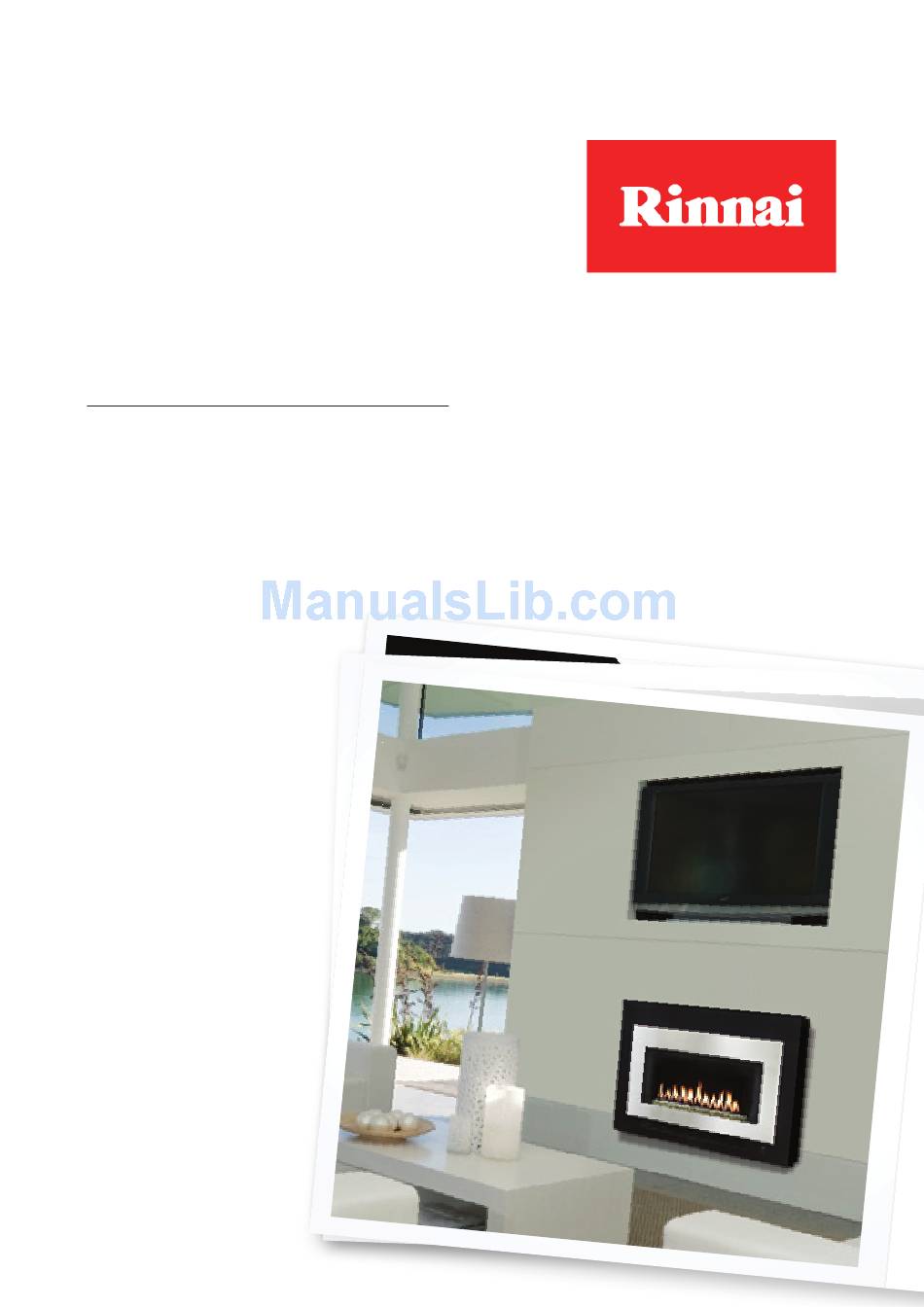

- Page 1 Operation guide Arriva 752...
- Page 2 Important: Appliance must be installed with a Rinnai approved flue system. This appliance shall be installed in accordance with: Manufacturer’s installation instructions AS/NZS 5601 Local regulations and municipal building codes Installation, servicing and repair shall be carried out only by authorised personnel.
-
Page 3: Table Of Contents
About your Arriva 752 Safety Clearances General information Operation without the remote Operation using the remote Care of your Arriva 752 Maintenance and servicing Troubleshooting Error codes Abnormal flame pattern Installation checklist Installer details Limited warranty... -
Page 4: About Your Arriva 752
Beauty and efficiency rolled into one great fireplace. Elegant and stylish—with six beautiful fascia options and modern quartz or pebble burn media. High performance and resource considerate, the Arriva 752 ensures the highest heat output for the lowest energy consumption. -
Page 5: Safety
Do not allow anyone to post Do not spray aerosols while the articles through into the heater. appliance is operating. Most contain butane gas which can be a fire hazard if used near the appliance. Arriva 752 Operation Guide: 12219-A 01-12 | 5... -
Page 6: Clearances
25 mm of vertical clearance. For example a mantel depth of 100 mm requires a vertical Arriva 752 mantel clearances clearance of 150 mm Arriva 752 surround clearances 6 | Arriva 752 Operation Guide: 12219-A 01-12... -
Page 7: General Information
• Size should be at least the pressure relief width and depth of the fire overheat safety switch air temperature sensor thermal fuse overcurrent fuse spark detector Arriva 752 Operation Guide: 12219-A 01-12 | 7... -
Page 8: Operation Without The Remote
Do not unplug the main power supply to turn the unit off as the convection fan is required to operate for several minutes after the unit is turned off to assist in cooling the unit down. 8 | Arriva 752 Operation Guide: 12219-A 01-12... -
Page 9: Operation Using The Remote
• H (high) - continuous Remove the batteries if the remote combustion on high is not going to be used for a long time. This will help avoid damage from leaking batteries. Arriva 752 Operation Guide: 12219-A 01-12 | 9... - Page 10 10 | Arriva 752 Operation Guide: 12219-A 01-12...
-
Page 11: Care Of Your Arriva 752
Error code 14 will happening. be displayed in the error display window on the control panel of the unit. Arriva 752 Operation Guide: 12219-A 01-12 | 11... -
Page 12: Maintenance And Servicing
Do not attempt to carry out any service work other than that mentioned in the troubleshooting section. If you have any other faults or problems, please refer to your installer or call Rinnai. 12 | Arriva 752 Operation Guide: 12219-A 01-12... - Page 13 Arriva 752 Troubleshooting & error codes...
-
Page 14: Troubleshooting
Check timers are set correctly. Timer operates for a short time then cuts Room temperature may be higher than the set temperature. Increase set temperature if desired. Turn off the Extra Low button if on. 14 | Arriva 752 Operation Guide: 12219-A 01-12... - Page 15 Replace batteries in • Flat batteries remote control Remote lock- up due to signal being Press the Standby/On • out of range, button incorrectly aimed, or obstructed Arriva 752 Operation Guide: 12219-A 01-12 | 15...
-
Page 16: Error Codes
Service call. Overheat temperature sensor faulty Service call. Spark sensor faulty Service call. Combustion fan motor faulty Service call. Solenoids faulty Service call. Flame detection circuit fault Service call. Communication error Service call. 16 | Arriva 752 Operation Guide: 12219-A 01-12... -
Page 17: Abnormal Flame Pattern
Abnormal flame pattern Each Rinnai Flame Fire has a distinct flame pattern. This should look the same every time you start your fire, after an initial warm up period of approximately 20 minutes. Abnormal flame performance and/ or pattern can indicate a problem... -
Page 18: Installation Checklist
Checklist F Appliance positioned in a suitable location (clearances, mantels, surrounds etc.). F Rinnai flue system installed and tested to ensure effective draw. F Gas pressure checked, set, and down rated (if applicable) according to data plate instructions F Burn media installed as per instructions. -
Page 19: Limited Warranty
Rinnai authorised service centre. RECORD yOuR DETAILS ATTACH yOuR PROOF OF OF PuRCHASE BELOw: PuRCHASE HERE: Retailer: Retailer address: Date of purchase: Product details: Please keep these details in a safe place for future reference. Arriva 752 Operation Guide: 12219-A 01-12 | 19... - Page 20 Experience our innovation Rinnai.co.nz 0800 746 624 https://www.youtube.com/rinnainz...
