650 / 750 INFILL PANEL INSTALLATION INSTRUCTION
Kit Contents: Model: 650 - R2453
• Bracket side mount masonry x 2
• Screw 8x10 THPSZ Phil AB Zinc x 4
• Screw 8x 5/8 Mush Head 33611923 x 2
• Infill Panel R600 Galaxy x 1
• Instruction Infill Panel x 1

1. Position the Unit

• Place the unit in front of the enclosure.

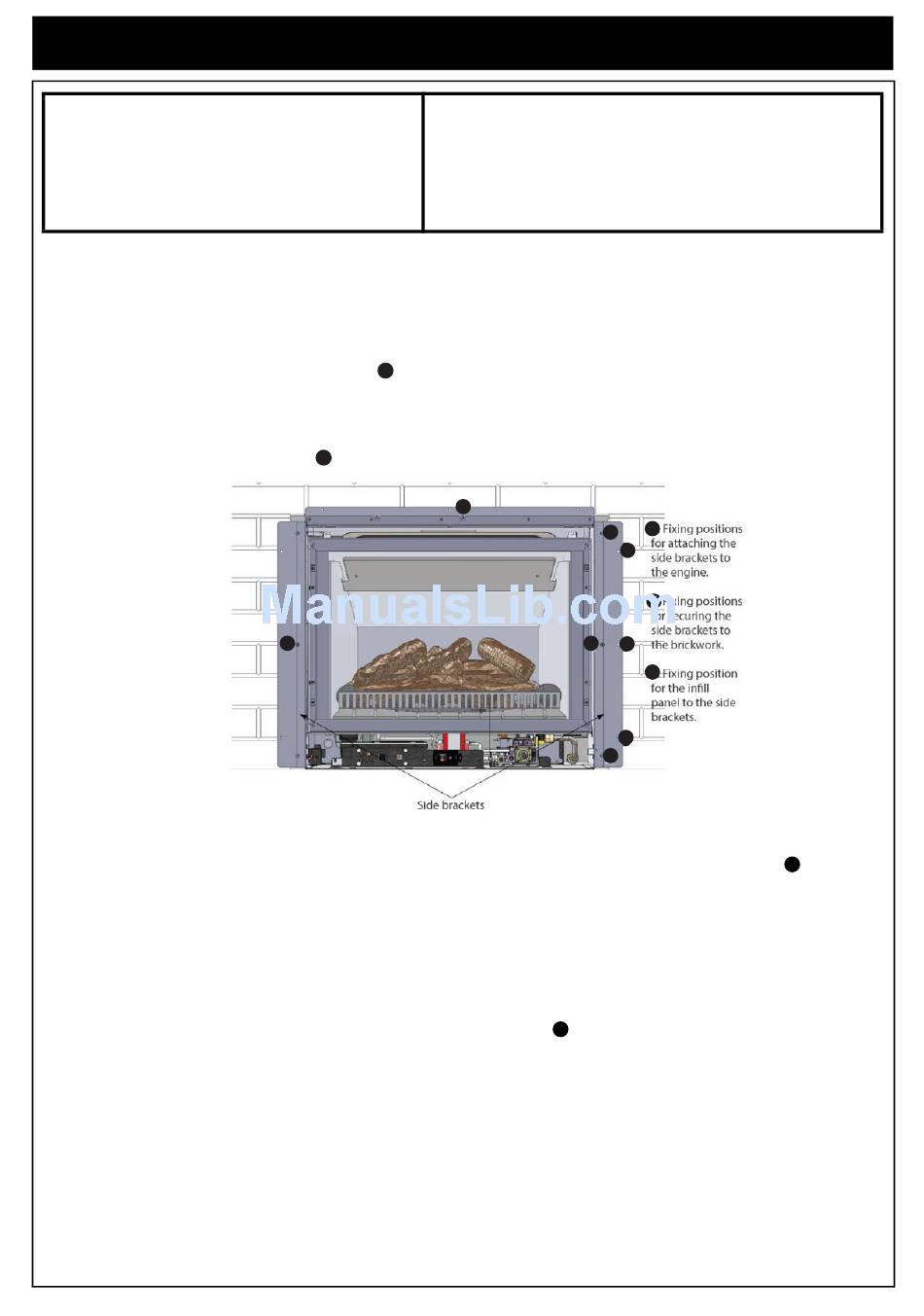

2. Attach the two Infill Panel side brackets

• Attached the side brackets (included with the panel), with the screws provided, to the engine, using
the top and bottom fixing positions.

3. Slide the unit into the enclosure

• Slide the unit into the enclosure. Secure the side brackets, using the three (3) outer screw
positions on each bracket,

4. Attach the Infill Panel

• Attach the infill panel to the side brackets using the middle screw position on either side
Refer to images above, and also on the next page.

5. Attach the 3-sided Frame

• To install the 3-sided frame, position in front of the Engine and connect the CAT5 cable to the frame.
• Slide the two top frame hangers into the corresponding frame slots on the unit and push the lower
section into the recess of the Engine.
• Secure the top section, using the two (2) screws provided
on the frame.
• Secure the lower section in place using the two bottom side screws. Refer image on the next page.
Rinnai - RNZ 12921-A (01:17)
Kit Contents: Model: 750 - R2452
• Bracket side mount masonry x 2
• Screw 8x10 THPSZ Phil AB Zinc x 4
• Screw 8x 5/8 Mush Head 33611923 x 2
• Infill Panel R700 Galaxy x 1
• Instruction Infill Panel x 1
a
to the brickwork using suitable fasteners (not provided).
b
c
d
a
b
c b
b
a
, via the three U-shaped fixing positions
d
1 RDV600/700ER Infill Panel - SR16-305 - Issue 1 Aug.2017
