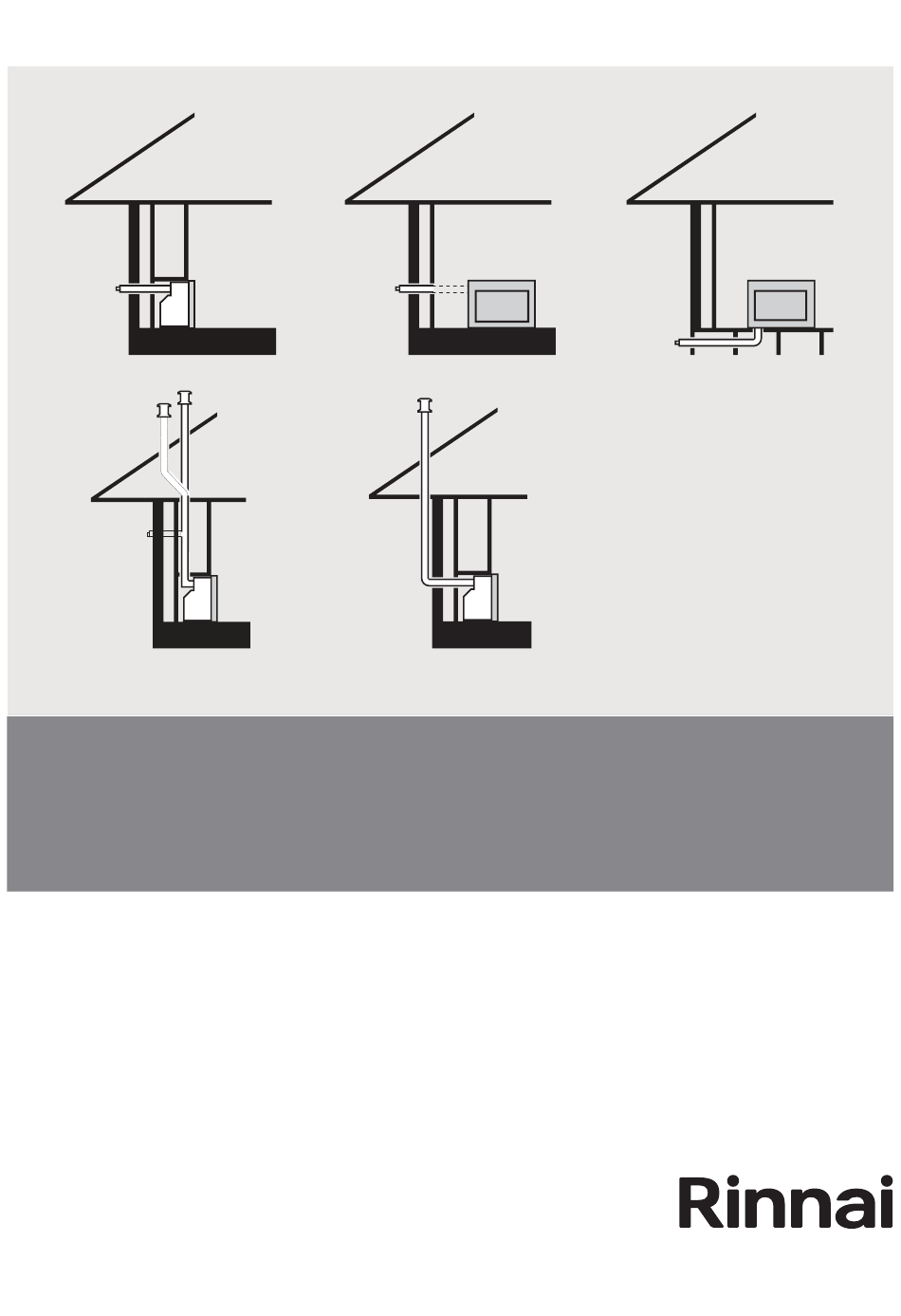

- Page 1 Arriva and Evolve gas fireplaces Flue installation guide...
- Page 2 - Current AS/NZS 3000, AS/NZS 3500, AS/NZS 5601.1 and G12/AS1 Must be installed, commissioned and serviced by an authorised person, being in New Zealand a licensed gasfitter. The Arriva and Evolve fires must be installed with an approved flue system, approved components are shown in this guide. Warning Improper installation, adjustment, alteration, service and maintenance can cause property damage, personal injury or loss of life.
-
Page 3: Table Of Contents
Steps to create a wall terminal ........21 Connecting the heater exhaust pipe ......22 Connecting the air supply ........... 23 Arriva condensate drain kit connection....... 24 Evolve condensate drain kit connection ..... 25 Appendices Appendix 1: ESBEND 90° .......... 26 Appendix 2: ESBEND 45°... -
Page 4: About This Guide
Due to the size of the Evolve unit and the cavity dimensions, the only direct flue kit available for the Evolve is the ASPDFK. The direct mushroom flue kits that can be used for the Arriva are not suitable as the telescopic exhaust section of the Evolve is not long enough to connect to the flue transition of the mushroom flues. -
Page 5: Flueing Options
Flueing options For lowest cost, optimal performance, ease of installation and servicing, Rinnai recommend direct flued installations are considered before all other options. Maximum flue Maximum flue length = 8.5 m length and Maximum number of bends = three number of bends For every 90°... -
Page 6: General Flueing Guidelines
The weight of the flue system must not be supported by the appliance, it must be self-supporting. Supporting the flue is usually completed during the framing stage with flue supports or straps within the cavity. Wall straps are included with most Rinnai flue components. Securing the flue To prevent the flue from moving or coming apart: •... - Page 7 The Arriva Direct A and B flue kits have an inbuilt 2° fall. 2° fall back to the fire A fall back to the fire is required when any part of the flue system goes horizontally and then vertically.
-
Page 8: Flue Components
Two bends in a kit. Can be used separately, or together as a 90° bend. Refer additional images on p.26-27. Spacers are mandatory to ensure alignment of the flue and to stop the outer bends overheating 8 | Arriva/Evolve flue installation guide: 10726-I 09-21... - Page 9 ALWAYS point up. Rubber drain outlet Drain tube Renders Direct A & B flue Roof cowl Flue pipe Adaption flue Direct ASPDFK flue Condensate trap Adaption flue Wall plate 45° bend kit Arriva/Evolve flue installation guide: 10726-I 09-21 | 9...
-
Page 10: Flue Component Connections
ESBEND kit, fit the outer, and then repeat if adding additional components. Connecting the roof cowl (ESROOFCOWL) Connect the non-socketed end to the socketed end of the previous component and secure. Non-socket end Socket (o-ring) end of previous component 10 | Arriva/Evolve flue installation guide: 10726-I 09-21... -
Page 11: Flue Transition (Aspdfk, Aspkit03, Evokit03)
When installed as a down and out flue, the flue transition is Air Inlet fastened to the rear of the wall by the wall straps supplied. Flue Outlet Appliance needs to be down rated—refer commissioning sheet. Arriva/Evolve flue installation guide: 10726-I 09-21 | 11... -
Page 12: Wall Penetration
Base of enclosure Base of enclosure Evolve 1252 flue penetration guide Dimensions are in mm. Flue pipe penetration Centreline of enclosure Gas supply penetration Ø 80~100 580 (right) 570 (left) Base of enclosure 12 | Arriva/Evolve flue installation guide: 10726-I 09-21... -
Page 13: Direct Flueing - Mushroom Flue Kits
For installations where the unit is mounted directly on the inside of an external wall. This installation requires a 2° fall from the heater connection to the wall terminal to drain condensate and wind blown rain—the Arriva Direct A and B flue kits have an inbuilt 2° fall. -
Page 14: Direct Flueing Using The Aspdfk
Direct flueing using the ASPDFK The ASPDFK is suitable from walls up to 385 mm thick. For the Arriva models it can be used as an alternative to the Direct A and B flue kits. The ASPDFK can be cut to length to suit wall thicknesses less than 385 mm. The ASPDFK can also be used in combination with ESPIPE900 for walls greater than 385 mm, this is called direct extended flueing. -
Page 15: Vertical In-Wall Flueing
6. Connect the condensate tube to the heater once it has been installed. Connection points will differ between the Arriva and the Evolve. For the Arriva refer to p.24. For the Evolve refer p.25. Arriva/Evolve flue installation guide: 10726-I 09-21 | 15... -
Page 16: Sideways Flueing
5. Create the wall terminal, refer p. 21. 6. Secure joints between flue components through the outer pipes with screws and secure the entire flue system using the wall straps supplied. 16 | Arriva/Evolve flue installation guide: 10726-I 09-21... -
Page 17: Through-Wall Vertical Flueing
This needs to be connected back through to the heater (separate hole required), which needs to be weathertight. Another option is to drain the condensate to a waste drain / gully trap through a PVC line. For more information please contact Rinnai. Steps for creating horizontal through-wall flueing 1. -
Page 18: Down And Out Flueing
Down and out configuration overview using the Arriva as an example 1. Flue slide stopper (provided with the ASPKIT03/EVOKIT03). - Page 19 7. Create the wall terminal, refer p.21. 8. Secure joints between flue components through the outer pipes with screws and secure the entire flue system using the wall straps supplied. Arriva/Evolve flue installation guide: 10726-I 09-21 | 19...
-
Page 20: Cutting The Aspdfk And Espipe900 To Length To Connect To Another Part
Cut the inner pipe at this mark. Take care to keep the cut parallel to the outer pipe. The additional 12 mm shown in the diagram above is required to allow the component to be joined to another part. 20 | Arriva/Evolve flue installation guide: 10726-I 09-21... -
Page 21: Steps To Create A Wall Terminal
The flue protrusion from the wall is approx. 14-16 mm. It must not be more than this as it will create a gap between the flue and the wall terminal, which will cause operational issues. Arriva/Evolve flue installation guide: 10726-I 09-21 | 21... -
Page 22: Connecting The Heater Exhaust Pipe
4. Fix the telescopic exhaust pipe in place with the flue slide stopper (provided in the ASPKIT03/ EVOKIT03) or the flue clamp bracket (provided with the heater for Arriva Direct A/B flues). 22 | Arriva/Evolve flue installation guide: 10726-I 09-21... -
Page 23: Connecting The Air Supply
Flue pipe connections on various Arriva and Evolve flue components ASPKIT03 EVOKIT03 ASPDFK Flue slide stopper (4822) R2731/R2732 Flue pipe of the heater Flue clamp bracket (10550) Connecting the air supply Ensure the air intake hose of the heater is properly secured to the air connection on the flue system using the cable tie provided (refer image on p.16) and that the rubber cap is in place on the... -
Page 24: Arriva Condensate Drain Kit Connection
30 mm (this can cause a blockage). 5. Place the condensate tray into the heater (short end first) making sure that the tray is centered under the end of the condensate tube. 24 | Arriva/Evolve flue installation guide: 10726-I 09-21... -
Page 25: Evolve Condensate Drain Kit Connection
Complete the gas, air hose, and flue connection. If vertically flueing ensure the condensate tube, provided with the EVOKIT03 flue kit, is attached to the condensate pipe on the heater. Flue condensate pipe connection Arriva/Evolve flue installation guide: 10726-I 09-21 | 25... -
Page 26: Appendix 1: Esbend 90
The spacers are mandatory and required for correct alignment of the flue components when bends are used. When fitted correctly the inner and outer pipes of the ESBEND will be self centering. The black spacer comes with the ESPIPE900. 26 | Arriva/Evolve flue installation guide: 10726-I 09-21... -
Page 27: Appendix 2: Esbend 45
The spacers are mandatory and required for correct alignment of the flue components when bends are used. When fitted correctly the inner and outer pipes of the ESBEND will be self centering. The black spacer comes with the ESPIPE900. Arriva/Evolve flue installation guide: 10726-I 09-21 | 27... - Page 28 Rinnai.co.nz Tel: 0800 746 624 http://www.youtube.com/rinnainz Arriva/Evolve flue installation guide 10726-I http://facebook.com.rinnainz...
