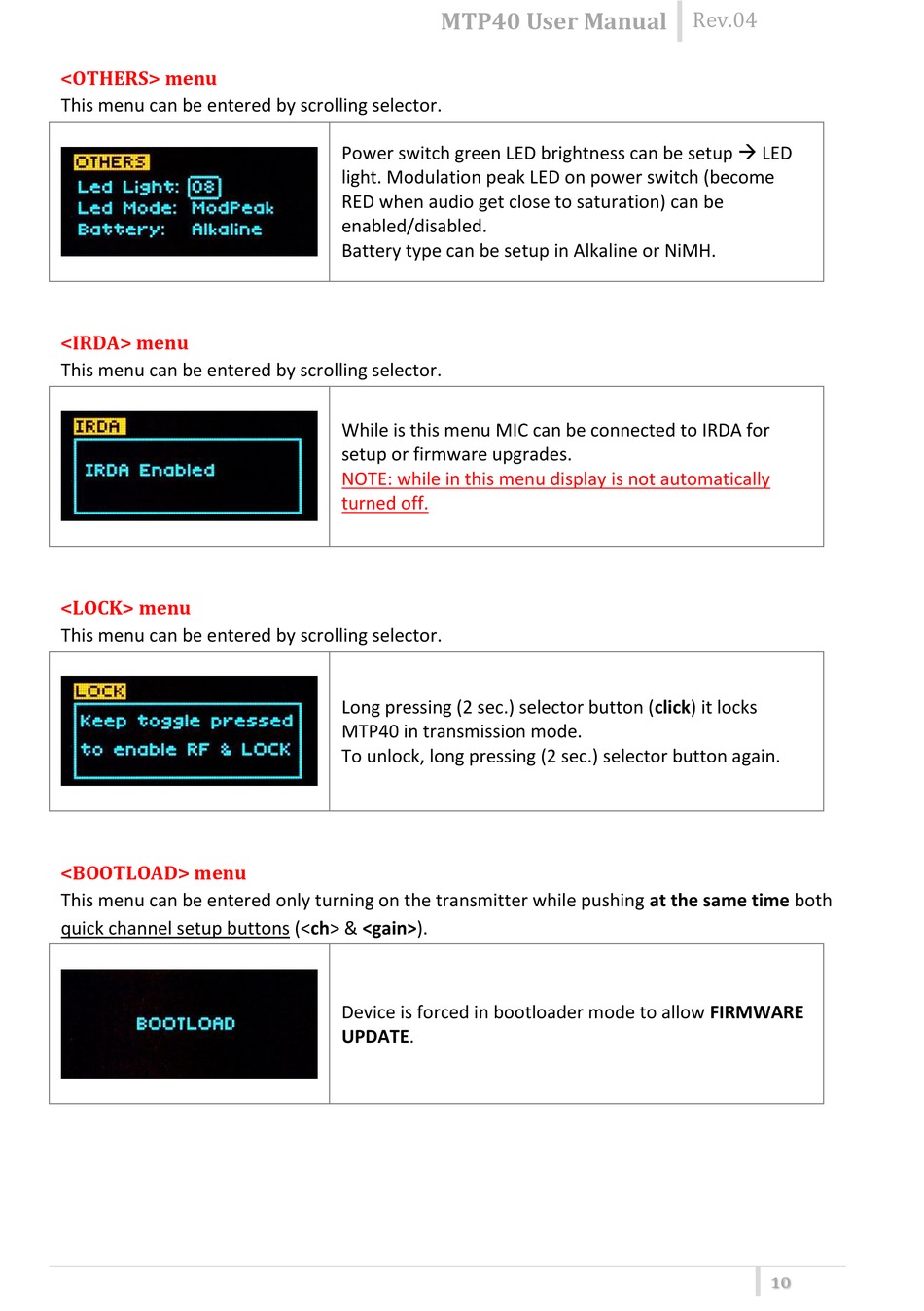

WisyCom MTP40 User Manual page 10

<OTHERS> menu
This menu can be entered by scrolling selector.
<IRDA> menu
This menu can be entered by scrolling selector.
<LOCK> menu
This menu can be entered by scrolling selector.
<BOOTLOAD> menu
This menu can be entered only turning on the transmitter while pushing at the same time both
quick channel setup buttons (<ch> & <gain>).
MTP40 User Manual
Power switch green LED brightness can be setup  LED
light. Modulation peak LED on power switch (become
RED when audio get close to saturation) can be
enabled/disabled.
Battery type can be setup in Alkaline or NiMH.
While is this menu MIC can be connected to IRDA for
setup or firmware upgrades.
NOTE: while in this menu display is not automatically
turned off.
Long pressing (2 sec.) selector button (click) it locks
MTP40 in transmission mode.
To unlock, long pressing (2 sec.) selector button again.
Device is forced in bootloader mode to allow FIRMWARE
UPDATE.
Rev.04
10
