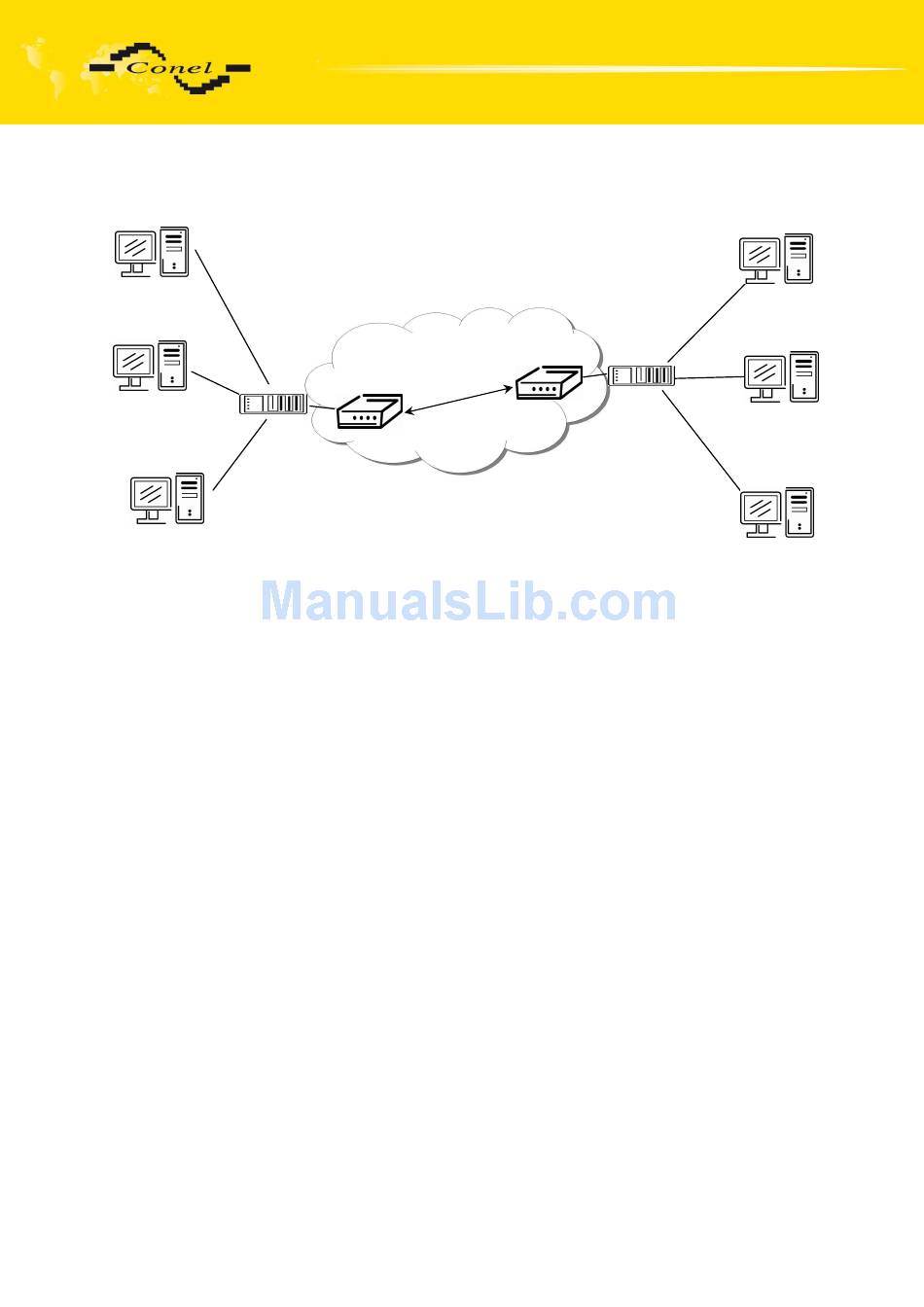

Example of the L2TP Tunnel configuration:
192.168.1.2
192.168.1.3
192.168.1.4
Default Gateway 192.168.1.1
L2TP tunnel Configuration:
Mode
Server IP Address
Client Start IP Address:
Client End IP Address:
Local IP Address:
Remote IP Address
Remote Subnet
Remote Subnet Mask
Username
Password
58
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
ppp0 10.0.0.1
A
192.168.1.1
L2TP tunnel
L2TP Server
192.168.1.2
192.168.1.254
192.168.1.1
192.168.2.0
255.255.255.0
user
password
CONFIGURATION
ppp0 10.0.0.2
B
192.168.2.1
Default Gateway 192.168.2.1
A
L2TP Client
--- 10.0.0.1
---
192.168.1.0
255.255.255.0
user
password
192.168.2.2
192.168.2.3
192.168.2.4
B
---
---
---
---
